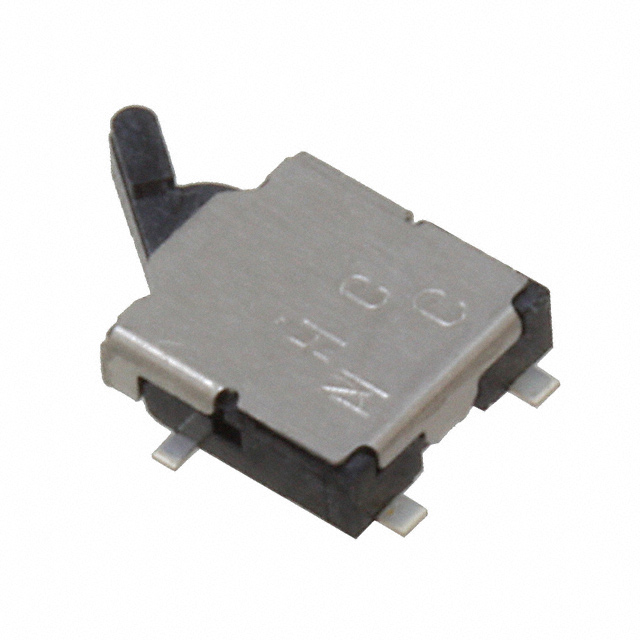

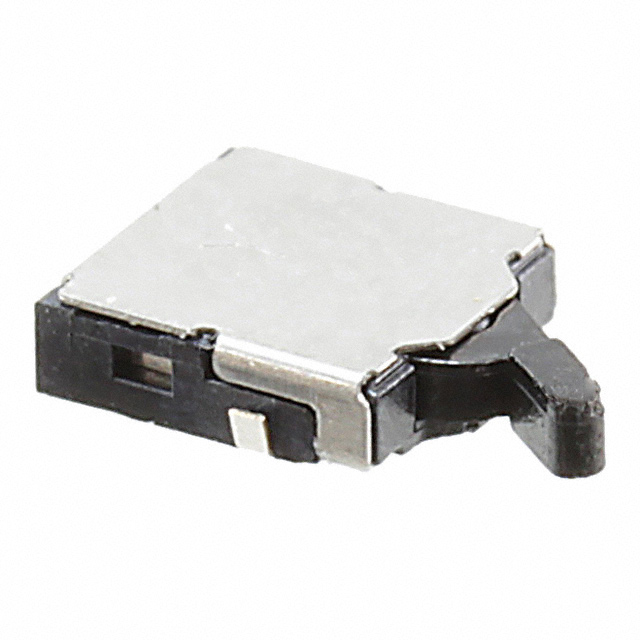

ESE-18 Series

Manufacturer: Panasonic Industrial Automation Sales

Catalog

SWITCH DETECTOR SPST-NO 0.01A 5V

Part	Actuator Type	Circuit	Switch Function	Electrical Life	Operating Force	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Termination Style	Operating Position	Operating Position	Mounting Type	Features	Operating Position
Panasonic Industrial Automation Sales ESE-18R11C	Angled Toggle (Detector)	SPST-NO	Off-Mom	50000 Cycles	30 gf	5 V	-10 °C	60 °C	10 mA	SMD (SMT) Tab	2.6 mm	0.102 in	Surface Mount Right Angle
Panasonic Industrial Automation Sales ESE-18R61D	Angled Toggle (Detector)	SPST-NC	On-Mom	50000 Cycles	30 gf	5 V	-10 °C	60 °C	10 mA	SMD (SMT) Tab	2.6 mm	0.102 in	Surface Mount Right Angle	Board Guide
Panasonic Industrial Automation Sales ESE-18L11C	Angled Toggle (Detector)	SPST-NO	Off-Mom	50000 Cycles	30 gf	5 V	-10 °C	60 °C	10 mA	SMD (SMT) Tab	2.6 mm	0.102 in	Surface Mount Right Angle
Panasonic Industrial Automation Sales ESE-18L11B	Angled Toggle (Detector)	SPST-NO	Off-Mom	50000 Cycles	30 gf	5 V	-10 °C	60 °C	10 mA	J Lead	2.6 mm	0.102 in	Surface Mount Right Angle	Board Guide
Panasonic Industrial Automation Sales ESE-18R61C	Angled Toggle (Detector)	SPST-NC	On-Mom	50000 Cycles	30 gf	5 V	-10 °C	60 °C	10 mA	SMD (SMT) Tab	2.6 mm	0.102 in	Surface Mount Right Angle
Panasonic Industrial Automation Sales ESE-18R12B	Angled Toggle (Detector)	SPST-NO	Off-Mom	50000 Cycles	31 gf	5 V	-10 °C	60 °C	10 mA	J Lead	3.1 mm		Surface Mount Right Angle		0.122 in
Panasonic Industrial Automation Sales ESE-18R61B	Angled Toggle (Detector)	SPST-NC	On-Mom	50000 Cycles	30 gf	5 V	-10 °C	60 °C	10 mA	J Lead	2.6 mm	0.102 in	Surface Mount Right Angle	Board Guide
Panasonic Industrial Automation Sales ESE-18L12D	Angled Toggle (Detector)	SPST-NO	Off-Mom	50000 Cycles	31 gf	5 V	-10 °C	60 °C	10 mA	SMD (SMT) Tab	3.1 mm		Surface Mount Right Angle		0.122 in
Panasonic Industrial Automation Sales ESE-18R62D	Angled Toggle (Detector)	SPST-NC	On-Mom	50000 Cycles	31 gf	5 V	-10 °C	60 °C	10 mA	SMD (SMT) Tab	3.1 mm		Surface Mount Right Angle		0.122 in
Panasonic Industrial Automation Sales ESE-18L11A	Angled Toggle (Detector)	SPST-NO	Off-Mom	50000 Cycles	30 gf	5 V	-10 °C	60 °C	10 mA	J Lead	2.6 mm	0.102 in	Surface Mount Right Angle
