FGS.1M Series

Manufacturer: LEMO

Catalog

CONN PLUG FMALE 8POS GOLD CRIMP

Part	Number of Positions	Ingress Protection	Insert Material	Shell Size - Insert	Primary Material	Contact Material	Connector Type	Fastening Type	Contact Finish - Mating	Shielding	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Shell Finish	Termination	Features	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Color	Current Rating (Amps)	Orientation	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shell Material	Cable Opening	Cable Opening	Shell Size - Insert [custom]

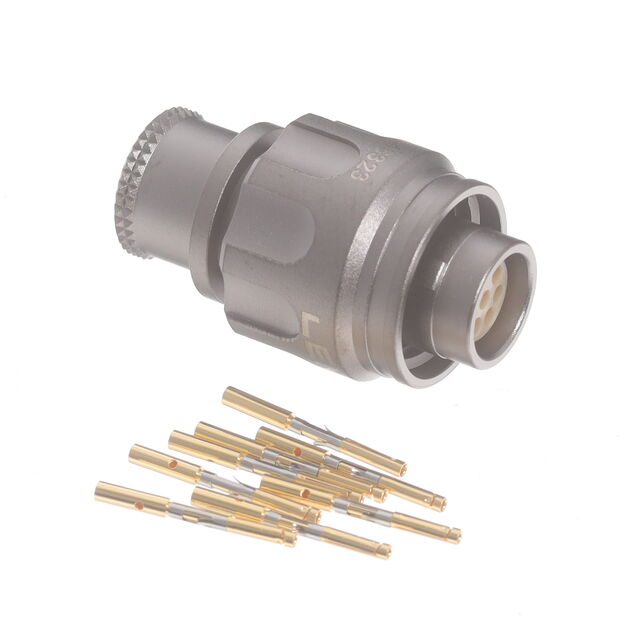

LEMO FGS.1M.308.XLMTY	8	IP68 - Dust Tight Waterproof	Polyetheretherketone (PEEK)	308	Metal	Bronze	Plug Female Sockets	Threaded	Gold	Shielded	Aerospace Automotive Aviation Military	200 °C	-55 C	Free Hanging (In-Line)	Nickel	Crimp	Coupling Nut	0.382 in	0.191 "	4.85 mm	9.7 mm	Gray	5 A	S	1.5 Ám	59 Áin	Aluminum Alloy

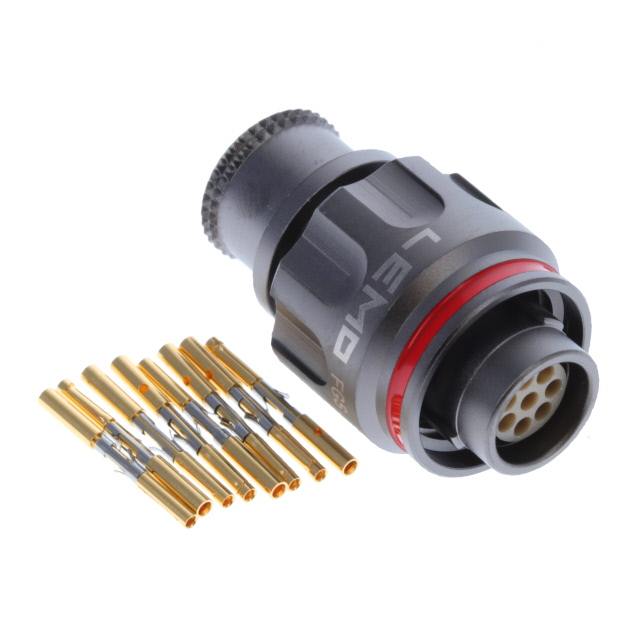

LEMO FGS.1M.308.XLMT	8	IP68 - Dust Tight Waterproof	Polyetheretherketone (PEEK)	308	Metal	Bronze	Plug Female Sockets	Threaded	Gold	Shielded	Aerospace Automotive Aviation Military	200 °C	-55 C	Free Hanging (In-Line)	Nickel	Crimp	Coupling Nut					Gray	5 A	S	1.5 Ám	59 Áin	Aluminum Alloy	0.382 in	9.7 mm
LEMO FGS.1M.307.XLMT	7	IP68 - Dust Tight Waterproof	Polyetheretherketone (PEEK)		Metal	Bronze	Plug Female Sockets	Threaded	Gold	Shielded	Aerospace Automotive Aviation Military	200 °C	-55 C	Free Hanging (In-Line)	Nickel	Crimp	Coupling Nut					Gray	7 A	S	1.5 Ám	59 Áin	Aluminum Alloy	0.382 in	9.7 mm	307
LEMO FGS.1M.308.XLMM	8	IP68 - Dust Tight Waterproof	Polyetheretherketone (PEEK)	308	Metal	Bronze	Plug Female Sockets	Threaded	Gold	Shielded	Aerospace Automotive Aviation Military	200 °C	-55 C	Free Hanging (In-Line)	Nickel	Crimp	Coupling Nut					Gray	5 A	S	1.5 Ám	59 Áin	Aluminum Alloy
