SPMWH3327 Series

Catalog

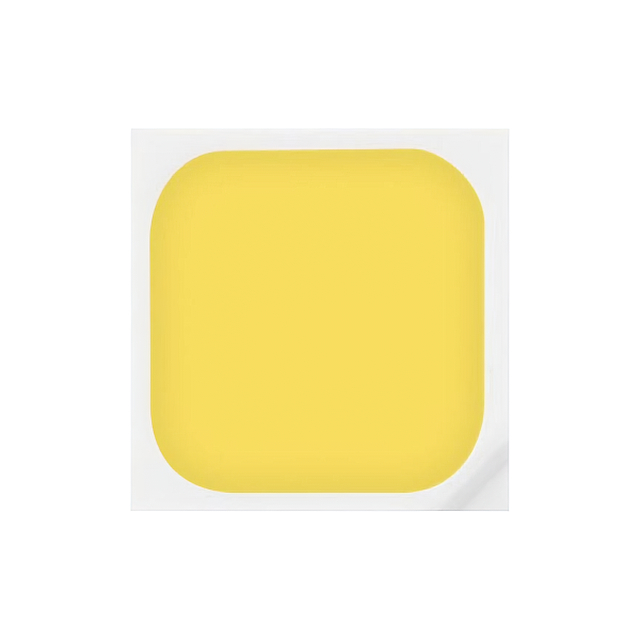

LED LM302D WARM WHT 2700K 3030

Part	Thermal Resistance of Package	Current - Test	Flux @ 25°C, Current - Test	Flux @ 25°C, Current - Test [Max]	Flux @ 25°C, Current - Test [Min]	Mounting Type	Lumens/Watt @ Current - Test	Color	Package / Case	Package / Case	CCT (K)	CCT (K)	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Supplier Device Package	Viewing Angle	CRI (Color Rendering Index)	Voltage - Forward (Vf) (Typ)	Current - Max [Max]
Samsung Semiconductor, Inc. SPMWH3327FS7GAW3SF	12 °C/W	150 mA	126 lm	131 lm	121 lm	Surface Mount	139 lm/W	Warm White	3030 Metric	1212	2700 K	3-Step MacAdam Ellipse	3 mm	0.118 in	3 mm	0.118 "	0.03 "	0.75 mm	3030	120 °	90	6.2 V	200 mA
Samsung Semiconductor, Inc. SPMWH3327FS7GAT3SF	12 °C/W	150 mA	126 lm	131 lm	121 lm	Surface Mount	139 lm/W	Neutral White	3030 Metric	1212	4000 K	3-Step MacAdam Ellipse	3 mm	0.118 in	3 mm	0.118 "	0.03 "	0.75 mm	3030	120 °	90	6.2 V	200 mA
Samsung Semiconductor, Inc. SPMWH3327FS7GAU3SF	12 °C/W	150 mA	126 lm	131 lm	121 lm	Surface Mount	139 lm/W	Warm White	3030 Metric	1212	3500 K	3-Step MacAdam Ellipse	3 mm	0.118 in	3 mm	0.118 "	0.03 "	0.75 mm	3030	120 °	90	6.2 V	200 mA
