R19131 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K
SMA F-TNC M
| Part | Body Material | Dielectric Material | Mating Cycles | Center Contact Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Convert To (Adapter End) | Adapter Series | Convert From (Adapter End) | Mounting Type | Conversion Type | Impedance | Adapter Type | Center Contact Plating | Frequency - Max [Max] | Style | Center Gender | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

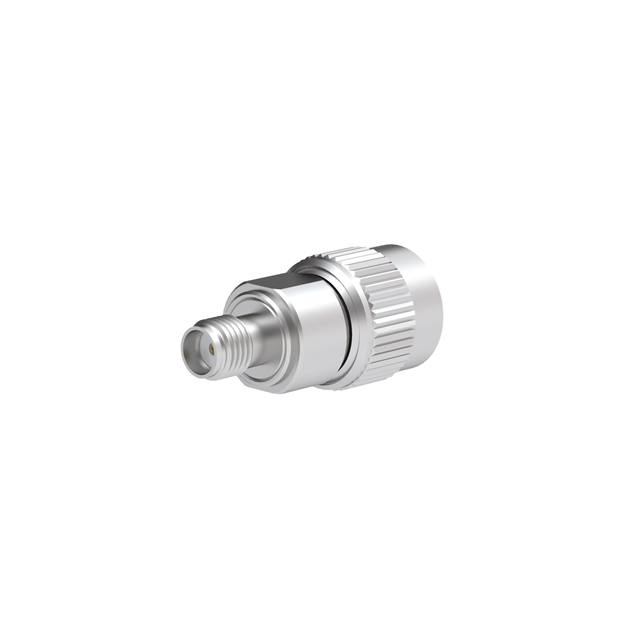

 Radiall USA, Inc. | Brass | Polytetrafluoroethylene (PTFE) | 500 | Beryllium Copper | Nickel | -65 ░C | 165 °C | TNC Plug Male Pin | SMA to TNC | Female Socket SMA Jack | Free Hanging (In-Line) | Between Series | 50 Ohms | Plug to Jack | Gold | 11 GHz | Straight | ||

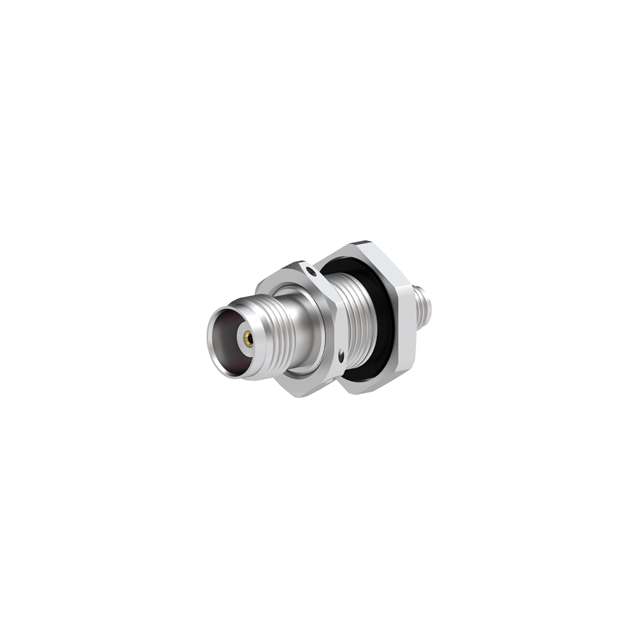

 Radiall USA, Inc. | Stainless Steel | Polytetrafluoroethylene (PTFE) | Bronze | -65 ░C | 125 °C | Female Socket TNC Jack | SMA to TNC | Female Socket SMA Jack | Panel Mount | Between Series | 50 Ohms | Jack to Jack | Gold | 18 GHz | Straight | Female to Female | Bulkhead |
