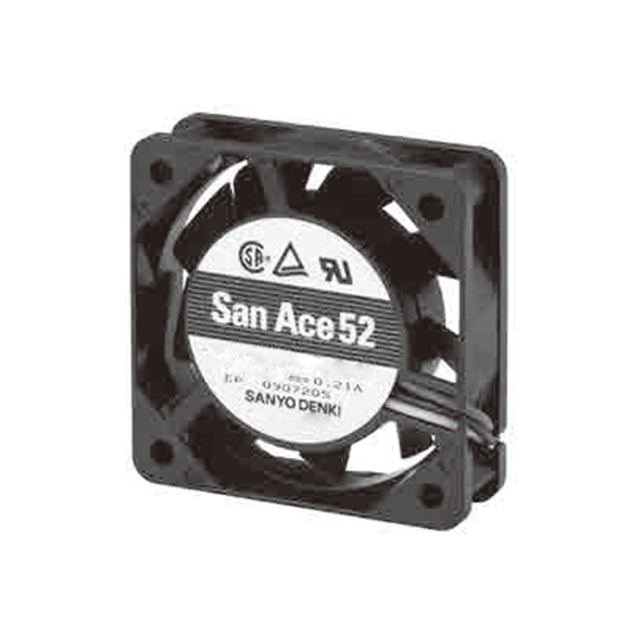

9GA0512 Series

Catalog

FAN AXIAL 52X15MM 12VDC WIRE

Part	Air Flow	Air Flow	Material - Blade	Current Rating (Amps)	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Lifetime @ Temp.	Fan Type	Weight [custom]	Weight [custom]	Termination	Power (Watts)	RPM	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension	Size / Dimension [z]	Size / Dimension [x]	Bearing Type	Width [y]	Static Pressure	Static Pressure	Noise	Voltage - Rated	Features
Sanyo Denki America Inc. 9GA0512M7002	7.6 CFM	0.213 mł/min	Plastic	40 mA	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.089 lb	40.37 g	2 Wire Leads	0.48 W	3400 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.068 in H2O	17 Pa	16 dB	12 VDC
Sanyo Denki America Inc. 9GA0512G7001	17.7 CFM	0.496 m³/min	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.089 lb	40.37 g	3 Wire Leads	1.56 W	7800 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.367 in H2O	91.5 Pa	38 dB(A)	12 VDC	Locked Rotor Protection Speed Sensor (Tach)

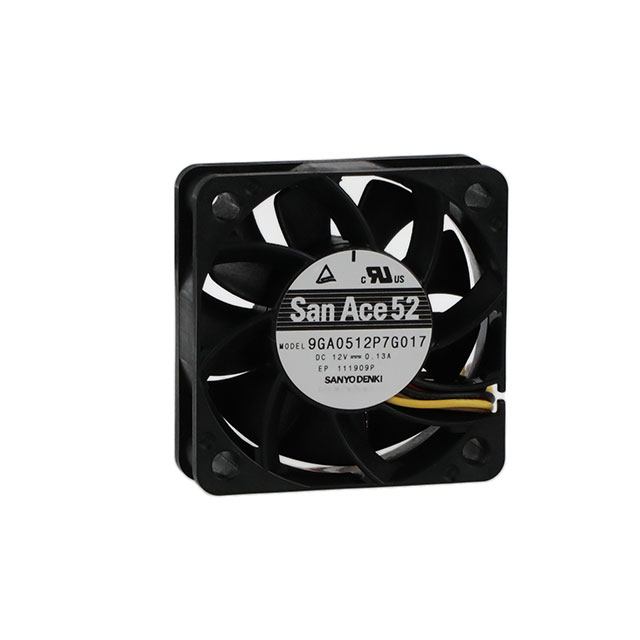

Sanyo Denki America Inc. 9GA0512P7G017			Plastic		10.2 VDC	13.8 VDC	Plastic		Tubeaxial	0.089 lb	40.37 g	4 Position Rectangular Connector		7800 RPM		-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm			38 dB(A)	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512H7001	9.7 CFM	0.272 m³/min	Plastic	50 mA	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.089 lb	40.37 g	3 Wire Leads	600 mW	4300 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.11 in H2O	27.4 Pa	22 dB(A)	12 VDC	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512G7002	17.7 CFM	0.496 m³/min	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.089 lb	40.37 g	2 Wire Leads	1.56 W	7800 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.367 in H2O	91.5 Pa	38 dB(A)	12 VDC

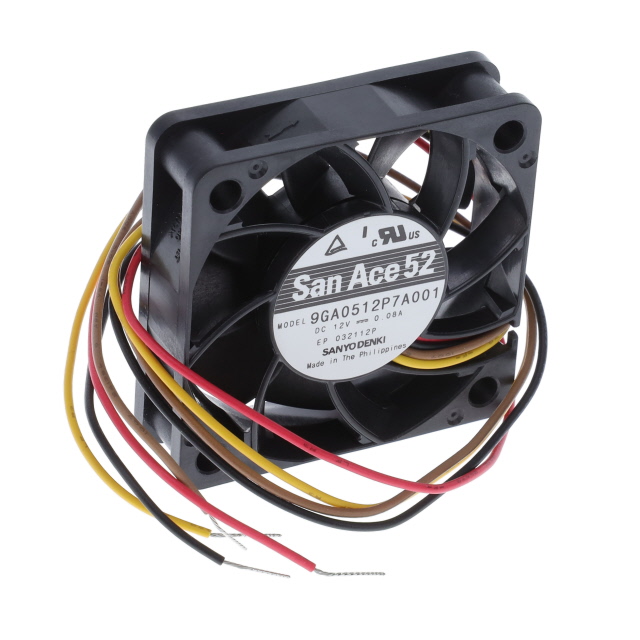

Sanyo Denki America Inc. 9GA0512P7A001	14.1 CFM	0.395 m³/min	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.088 lb	39.92 g	4 Wire Leads	960 mW	6300 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.237 in H2O	59 Pa	32 dB	12 VDC	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512M7001			Plastic	40 mA	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.089 lb	40.37 g	3 Wire Leads	0.48 W	3400 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.068 in H2O	17 Pa	16 dB	12 VDC	Locked Rotor Protection Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512A7002	14.1 CFM	0.395 m³/min	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.089 lb	40.37 g	2 Wire Leads	960 mW	6300 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.237 in H2O	59 Pa	32 dB	12 VDC
Sanyo Denki America Inc. 9GA0512P7G001	17.7 CFM	0.496 m³/min	Plastic		10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.088 lb	39.92 g	4 Wire Leads	1.56 W	7800 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.367 in H2O	91.5 Pa	38 dB(A)	12 VDC	PWM Control Speed Sensor (Tach)
Sanyo Denki America Inc. 9GA0512P7M001	7.6 CFM	0.213 mł/min	Plastic	40 mA	10.2 VDC	13.8 VDC	Plastic	40000 Hrs	Tubeaxial	0.089 lb	40.37 g	4 Wire Leads	0.48 W	3400 RPM	CSA TUV UL	-20 ░C	70 °C	Square	52 mm	52 mm	Ball	15 mm	0.068 in H2O	17 Pa	16 dB	12 VDC	Locked Rotor Protection PWM Control Speed Sensor (Tach)
