0FNY0002ZXJ Series

Holder - Glass Inline Orange 12AWG 30A

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Holder - Glass Inline Orange 12AWG 30A

Part	Fuse Size [z]	Fuse Size [diameter]	Fuse Size [z]	Fuse Size [diameter]	Mounting Type	Voltage	Number of Circuits	Current Rating (Amps)	Termination Style	Fuse Type	Fuseholder Type	For Use With/Related Products
Littelfuse/Commercial Vehicle Products 0FNY0002ZXJ	15.88 mm 32 mm	6.35 mm	0.625 " 1.26 "	0.25 "	Free Hanging (In-Line)	32 V	1	20 A	Wire Leads	Cartridge	Holder	1AG 3AG 7AG 8AG SFE-14 SFE-6

Catalog

Holder - Glass Inline Orange 12AWG 30A

Key Features

• Compatible with up to 30-amp SFE, AGA, AGW, and AGX glass fuses

• Two 4" 12 AWG GXL wire leads with orange insulation

• Fuse included

Description

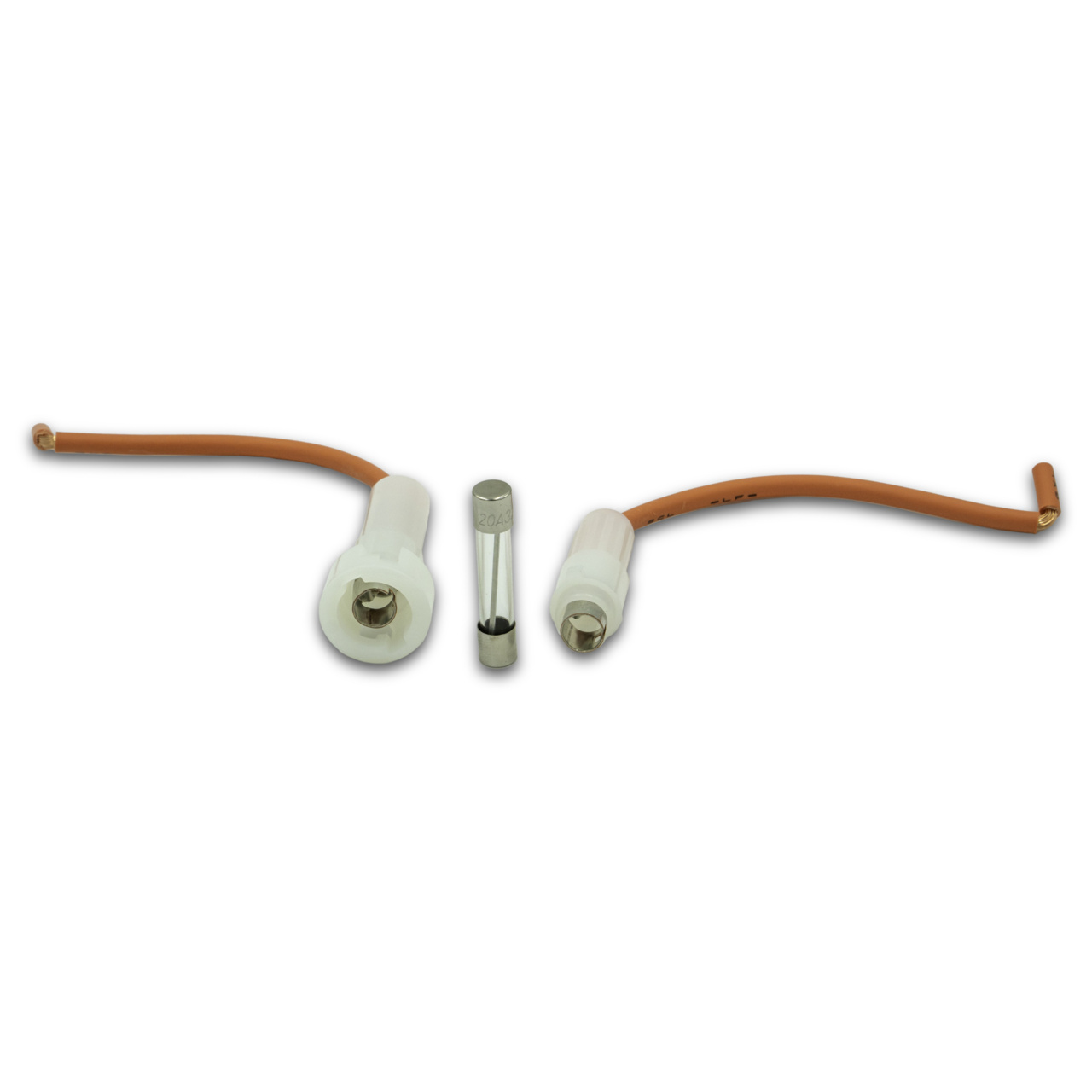

The Glass FNY Series 32V Heavy-Duty In-Line Glass Fuse Holder accepts SFE, AGA, AGW, and AGX glass fuses. A spring-loaded, twist-lock, weather-resistant nylon body ensures simple fuse installation and replacement. This heavy-duty in-line glass fuse holder (0FNY0002ZXJ) features two 4" orange 12 AWG GXL wire leads. It is rated for up to 30-amp glass fuses and is ideal for air conditioners and blower motors.
