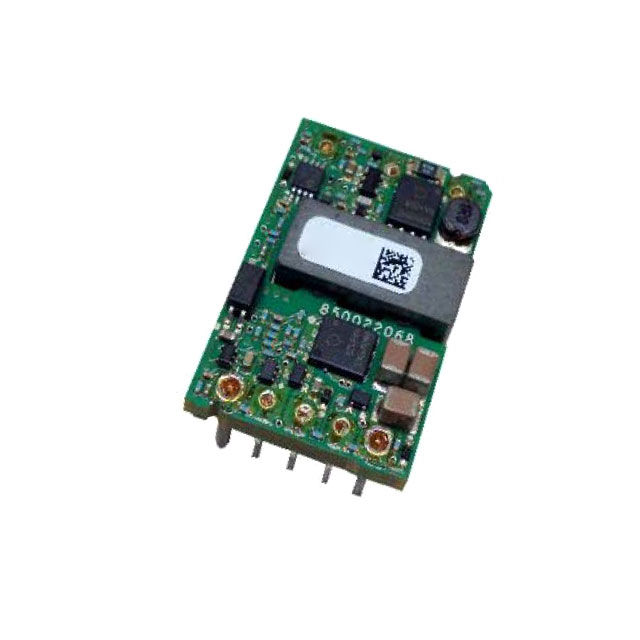

KBVW006 Series

Catalog

DC DC CONVERTER 12V 72W

Part	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Features	Type	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Applications	Voltage - Input (Max) [Max]	Voltage - Isolation	Voltage - Output 1	Mounting Type	Control Features	Efficiency	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]

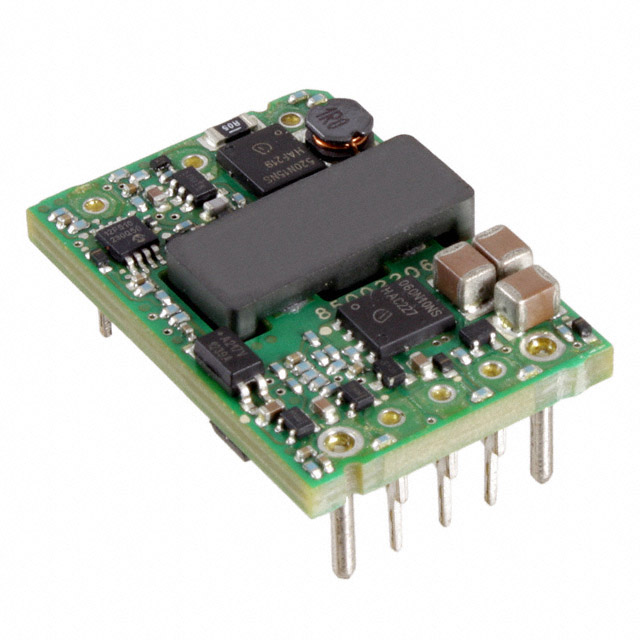

OmniOn Power™ KBVW006A0B41Z	1.3 in	22.9 mm	0.9 in	33 mm	9.4 mm	0.37 in	1	85 °C	-40 C	8-DIP Module 1/16 Brick	OCP OTP OVP Remote On/Off UVLO	Intermediate Bus Converter	36 V	6 A	ITE (Commercial)	75 V	2250 VDC	12 V	Through Hole	Active Low Enable	90.5 %	72 W
OmniOn Power™ KBVW006A0B41Z	1.3 in	22.9 mm	0.9 in	33 mm	9.4 mm	0.37 in	1	85 °C	-40 C	8-DIP Module 1/16 Brick	OCP OTP OVP Remote On/Off UVLO	Intermediate Bus Converter	36 V	6 A	ITE (Commercial)	75 V	2250 VDC	12 V	Through Hole	Active Low Enable	90.5 %	72 W
OmniOn Power™ KBVW006A0B41-HZ		22.86 mm		1.3 in	12.7 mm		1	85 °C	-40 C	8-DIP Module	OCP OTP OVP Remote On/Off UVLO	Isolated Module	36 V	6 A	ITE (Commercial)	75 V	2250 VDC	12 V	Through Hole	Active Low Enable	91 %	72 W	12.7 mm	33 mm	22.9 mm
OmniOn Power™ KBVW006A0B641Z	2.28 "	22.8 mm	0.9 in	57.9 mm	7.9 mm	0.31 "	1	85 °C	-40 C	8-DIP Module 1/16 Brick	OCP OTP OVP Remote On/Off UVLO	Intermediate Bus Converter	36 V	6 A	ITE (Commercial)	75 V	2250 VDC	12 V	Through Hole	Active Low Enable	90.5 %	72 W
OmniOn Power™ KBVW006A0B641Z	2.28 "	22.8 mm	0.9 in	57.9 mm	7.9 mm	0.31 "	1	85 °C	-40 C	8-DIP Module 1/16 Brick	OCP OTP OVP Remote On/Off UVLO	Intermediate Bus Converter	36 V	6 A	ITE (Commercial)	75 V	2250 VDC	12 V	Through Hole	Active Low Enable	90.5 %	72 W
OmniOn Power™ KBVW006A0B41-HZ		22.86 mm		1.3 in	12.7 mm		1	85 °C	-40 C	8-DIP Module	OCP OTP OVP Remote On/Off UVLO	Isolated Module	36 V	6 A	ITE (Commercial)	75 V	2250 VDC	12 V	Through Hole	Active Low Enable	91 %	72 W	12.7 mm	33 mm	22.9 mm
