TFKC Series

Pluggable Terminal Blocks TFKC 2,5/ 2-ST- 5,08 BD:1-4Q

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks TFKC 2,5/ 2-ST- 5,08 BD:1-4Q

Catalog

Pluggable Terminal Blocks TFKC 2,5/ 2-ST- 5,08 BD:1-4Q

Part	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Insulation Height [z]	Insulation Height [z]	Material Flammability Rating	Wire Strip Length	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Mounting Type	Positions Per Level [custom]	Positions Per Level [custom]	Termination Style	Color	Features	Plug Wire Entry	Number of Positions	Voltage - UL	Number of Levels [custom]	Number of Levels [custom]	Contact Mating Finish	Type	Current - UL	Pitch	Pitch	Current - IEC	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - IEC	Contact Material	Number of Levels	Positions Per Level	Operating Temperature [Min]	Operating Temperature [Max]

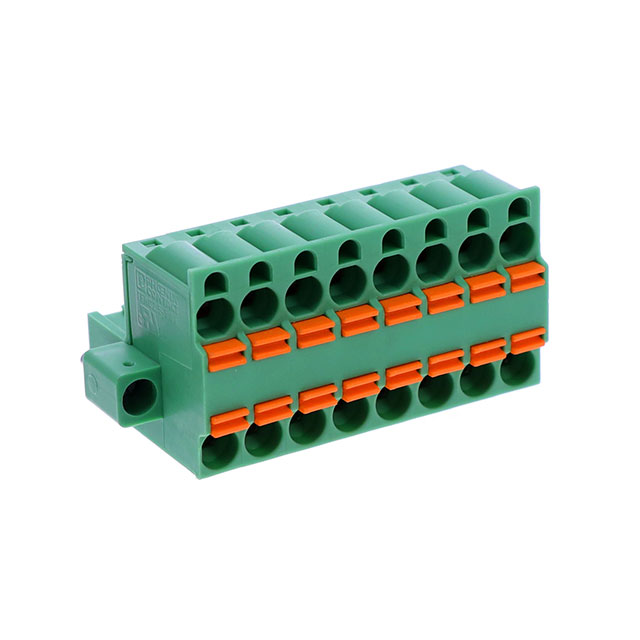

Phoenix Contact 1962752	2.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	22.1 mm	0.87 "	UL94 V-0	10 mm	12 AWG	26 AWG	Free Hanging (In-Line)	16	8	Screwless - Push-In Spring	Green	Mating Flange Retention Latches (Non-Wire Side)	180 °	8	300 V	1	2	Tin	Plug Female Sockets	10 A	5.08 mm	0.2 in	12 A	2.5 mm²	0.2 mm²	630 V
Phoenix Contact 1962639			Polyamide (PA) Nylon	22.1 mm	0.87 "	UL94 V-0	10 mm	12 AWG	26 AWG	Free Hanging (In-Line)	10	5	Screwless - Push-In Spring	Green		180 °	5	300 V	1	2	Tin	Plug Female Sockets	10 A	5.08 mm	0.2 in	12 A	2.5 mm²	0.2 mm²	630 V

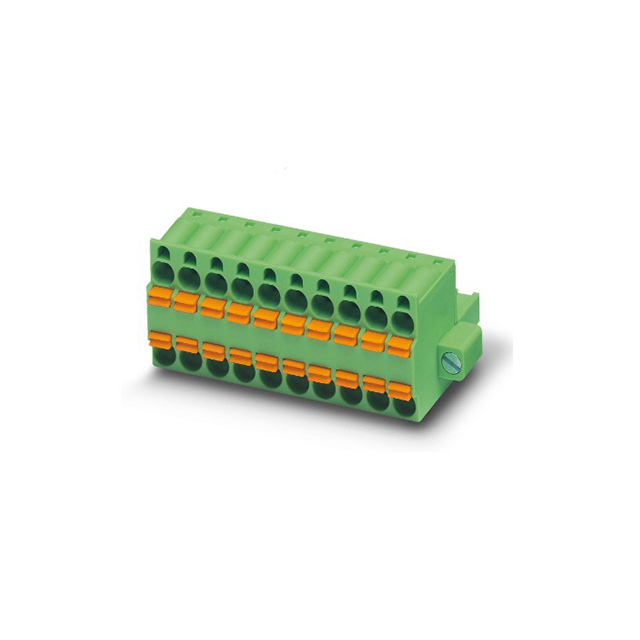

Phoenix Contact 1808433			Polyamide (PA) Nylon	22.1 mm	0.87 "	UL94 V-0	10 mm	12 AWG	26 AWG	Free Hanging (In-Line)			Push-In Spring Screwless - Leg Spring	Black	Mating Flange Push Button Actuated	180 °		300 V			Tin	Plug Female Sockets	10 A	5.08 mm	0.2 in	12 A	1.5 mm²	0.2 mm²	320 V	Copper Alloy	1	3	-40 C	100 °C

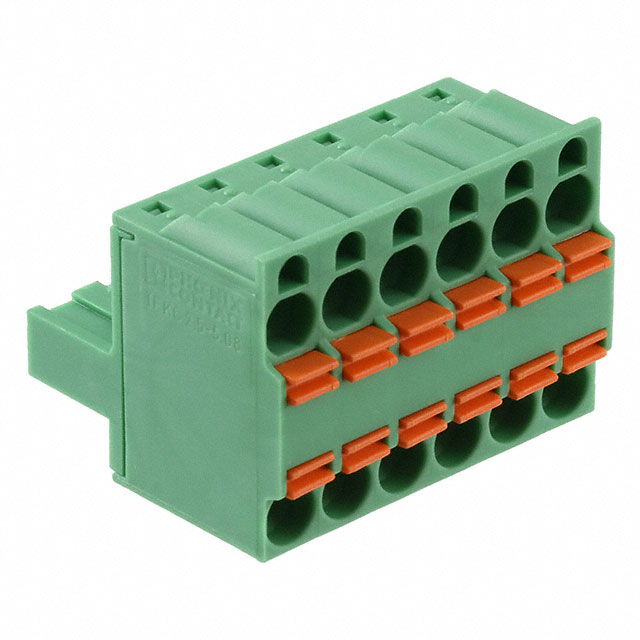

Phoenix Contact 1962642	2.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon	22.1 mm	0.87 "	UL94 V-0	10 mm	12 AWG	26 AWG	Free Hanging (In-Line)	12	6	Screwless - Push-In Spring	Green		180 °	6	300 V	1	2	Tin	Plug Female Sockets	10 A	5.08 mm	0.2 in	12 A	2.5 mm²	0.2 mm²	630 V
