TPS544C25 Series

4.5-V to 18-V, 30-A synchronous SWIFT™ buck converter with PMBus programmability and monitoring

Catalog

4.5-V to 18-V, 30-A synchronous SWIFT™ buck converter with PMBus programmability and monitoring

Part	Supplier Device Package	Output Type	Frequency - Switching [Max]	Frequency - Switching [Min]	Mounting Type	Voltage - Input (Min) [Min]	Voltage - Output (Max) [Max]	Output Configuration	Operating Temperature [Min]	Operating Temperature [Max]	Topology	Function	Voltage - Input (Max) [Max]	Voltage - Output (Min/Fixed) [Min]	Number of Outputs	Current - Output	Package / Case	Voltage - Output (Min/Fixed)	Frequency - Switching	Voltage - Input [Max]	Voltage - Input [Min]	Regulator Topology	Main Purpose	Utilized IC / Part	Supplied Contents	Outputs and Type	Outputs and Type	Voltage - Output	Frequency - Switching	Board Type
Texas Instruments TPS544B25RVFR	40-LQFN-CLIP (7x5)	Adjustable	1 MHz	200 kHz	Surface Mount	4.5 V	5.5 V	Positive	-40 °C	125 ¯C	Buck	Step-Down	18 V	0.5 V	1	20 A	40-PowerLFQFN
Texas Instruments TPS544B20RVFR	40-LQFN-CLIP (7x5)	Adjustable			Surface Mount	4.5 V	5.5 V	Positive	-40 °C	125 ¯C	Buck	Step-Down	18 V		1	20 A	40-PowerLFQFN	0.6 V	Selectable
Texas Instruments TPS544C25RVFT	40-LQFN-CLIP (7x5)	Adjustable	1 MHz	200 kHz	Surface Mount	4.5 V	5.5 V	Positive	-40 °C	125 ¯C	Buck	Step-Down	18 V	0.5 V	1	30 A	40-PowerLFQFN
Texas Instruments TPS544C20RVFR	40-LQFN-CLIP (7x5)	Adjustable	1 MHz	250 kHz	Surface Mount	4.5 V	5.5 V	Positive	-40 °C	125 ¯C	Buck	Step-Down	18 V		1	30 A	40-PowerLFQFN	0.6 V

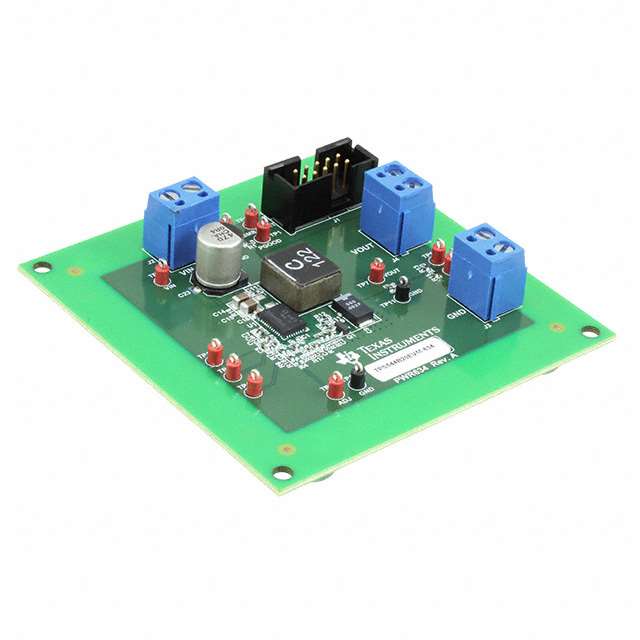

Texas Instruments TPS544B20EVM-634																20 A				14 V	8 V	Buck	DC/DC Step Down	TPS544B20	Board(s)	Non-Isolated	1	1 V	500 kHz	Fully Populated
Texas Instruments TPS544C22RVFT
Texas Instruments TPS544B20RVFT	40-LQFN-CLIP (7x5)	Adjustable			Surface Mount	4.5 V	5.5 V	Positive	-40 °C	125 ¯C	Buck	Step-Down	18 V		1	20 A	40-PowerLFQFN	0.6 V	Selectable
Texas Instruments TPS544A22RVFR
Texas Instruments TPS544C20RVFT	40-LQFN-CLIP (7x5)	Adjustable	1 MHz	250 kHz	Surface Mount	4.5 V	5.5 V	Positive	-40 °C	125 ¯C	Buck	Step-Down	18 V		1	30 A	40-PowerLFQFN	0.6 V
Texas Instruments TPS544C25RVFR	40-LQFN-CLIP (7x5)	Adjustable	1 MHz	200 kHz	Surface Mount	4.5 V	5.5 V	Positive	-40 °C	125 ¯C	Buck	Step-Down	18 V	0.5 V	1	30 A	40-PowerLFQFN

Catalog

4.5-V to 18-V, 30-A synchronous SWIFT™ buck converter with PMBus programmability and monitoring

Key Features

• Single chip power supply for SVID railsIntel VR13 SVID compliantI2C interface with NVM for configuration, telemetry (V/I/T) and fault reportingInput power monitoring for DDR5 memory RAPLIntegrated 4.0-mΩ and 1.0-mΩ MOSFETs for 35-A continuous current operationSupports external 5-V bias improving efficiency and enabling 2.7-V minimum input voltageVOUTprogrammable from 0.25 V to 3.04 VPrecision voltage reference and differential remote sense for high output accuracy±0.5% VOUTtolerance from 0°C to 85°C TJ±1% VOUTtolerance from –40°C to 125°C TJD-CAP+™ control topology with fast transient response, supporting all ceramic output capacitorsProgrammable internal loop compensation including droopSelectable cycle-by-cycle valley current limitSelectable operation frequency 0.6 MHz to 1.2 MHz with DCM or FCCM operationSafe start-up into pre-biased outputsProgrammable soft-start time from 1 ms to 16 msProgrammable soft-stop time from 0.5 ms to 4 msOpen-drain power-good output (VRRDY) and Catastrophic fault indicator (CAT_FAULT#)Programmable overcurrent, overvoltage, undervoltage, overtemperature protections5 mm × 6 mm, 37-pin WQFN-FCRLF packageTPS548C26 non-SVID/I2C analog converter in the same package available soonSingle chip power supply for SVID railsIntel VR13 SVID compliantI2C interface with NVM for configuration, telemetry (V/I/T) and fault reportingInput power monitoring for DDR5 memory RAPLIntegrated 4.0-mΩ and 1.0-mΩ MOSFETs for 35-A continuous current operationSupports external 5-V bias improving efficiency and enabling 2.7-V minimum input voltageVOUTprogrammable from 0.25 V to 3.04 VPrecision voltage reference and differential remote sense for high output accuracy±0.5% VOUTtolerance from 0°C to 85°C TJ±1% VOUTtolerance from –40°C to 125°C TJD-CAP+™ control topology with fast transient response, supporting all ceramic output capacitorsProgrammable internal loop compensation including droopSelectable cycle-by-cycle valley current limitSelectable operation frequency 0.6 MHz to 1.2 MHz with DCM or FCCM operationSafe start-up into pre-biased outputsProgrammable soft-start time from 1 ms to 16 msProgrammable soft-stop time from 0.5 ms to 4 msOpen-drain power-good output (VRRDY) and Catastrophic fault indicator (CAT_FAULT#)Programmable overcurrent, overvoltage, undervoltage, overtemperature protections5 mm × 6 mm, 37-pin WQFN-FCRLF packageTPS548C26 non-SVID/I2C analog converter in the same package available soon

Description

The TPS544C26 device is a highly integrated buck converter with D-CAP+ control topology for the fast transient response. All programmable parameters can be configured by the I2C interface and stored in NVM as the new default values to minimize the external component count. These features make the device well-suited for space-constrained applications. The TPS544C26 device is designed to work with Intel CPUs and fits well for single-phase, low-to-mid current SVID rails in Intel’s server and SoC platforms. Fault management and status reports for the Overcurrent limit, VOUTOVF/UVF, and OTF are provided on the device. The TPS544C26 device provides a full set of telemetry, including VOUT, IOUT, and IC temperature. Additionally, input power monitoring through an external sensing resistor is provided for board-level power management. The TPS544C26 device is a lead-free device and is RoHS compliant without exemption. The TPS544C26 device is a highly integrated buck converter with D-CAP+ control topology for the fast transient response. All programmable parameters can be configured by the I2C interface and stored in NVM as the new default values to minimize the external component count. These features make the device well-suited for space-constrained applications. The TPS544C26 device is designed to work with Intel CPUs and fits well for single-phase, low-to-mid current SVID rails in Intel’s server and SoC platforms. Fault management and status reports for the Overcurrent limit, VOUTOVF/UVF, and OTF are provided on the device. The TPS544C26 device provides a full set of telemetry, including VOUT, IOUT, and IC temperature. Additionally, input power monitoring through an external sensing resistor is provided for board-level power management. The TPS544C26 device is a lead-free device and is RoHS compliant without exemption.
