201173 Series

Manufacturer: Molex

Catalog

SLIM-GRID HEADER, 6 CIRCUITS, SURFACE MOUNT, RIGHT-ANGLE, SHROUDED, 0.38ΜM GOLD (AU) PLATED, WITH PICK-AND-PLACE POLYIMIDE TAPE, TUBE, LEAD-FREE

Part	Fastening Type	Contact Shape	Voltage Rating	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Material Flammability Rating	Number of Rows	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Contact Finish - Post	Row Spacing - Mating	Row Spacing - Mating	Applications	Features	Insulation Height	Insulation Height [z]	Number of Positions Loaded	Insulation Color	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Contact Type	Contact Finish - Mating	Mounting Type	Number of Positions
Molex 2011731106	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	15 µin	0.38 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications	Pick and Place	5.4 mm	0.213 in	All	Black	6	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle

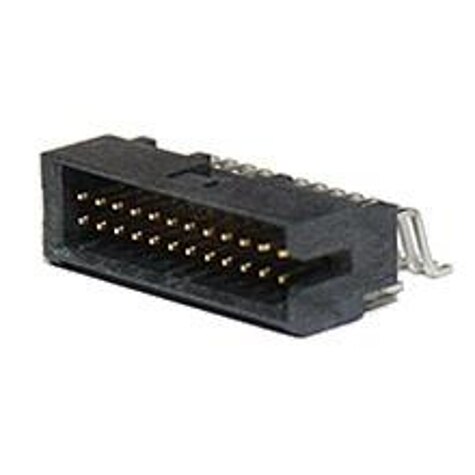

Molex 2011731114	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	15 µin	0.38 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications	Pick and Place	5.4 mm	0.213 in	All	Black	14	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle

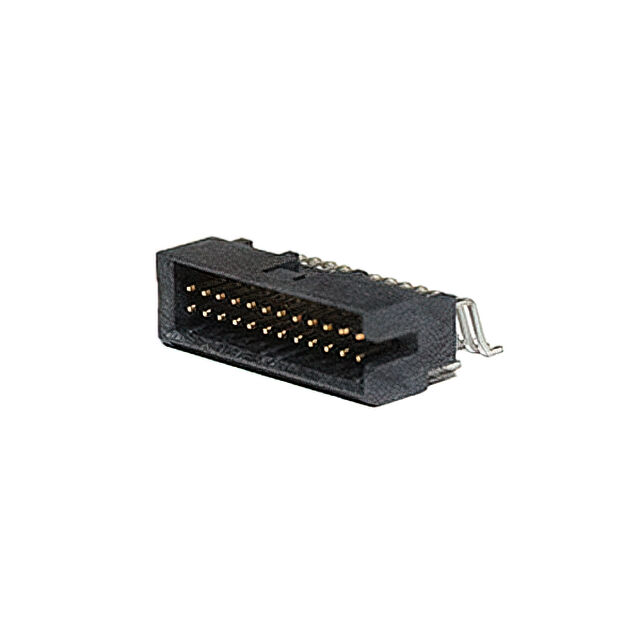

Molex 2011730024	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	2 µin	0.051 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications		5.4 mm	0.213 in	All	Black	24	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle
Molex 2011731120	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	15 µin	0.38 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications	Pick and Place	5.4 mm	0.213 in	All	Black	20	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle
Molex 2011731112	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	15 µin	0.38 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications	Pick and Place	5.4 mm	0.213 in	All	Black	12	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle
Molex 2011730106	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	15 µin	0.38 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications		5.4 mm	0.213 in	All	Black	6	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle
Molex 2011730116	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	15 µin	0.38 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications		5.4 mm	0.213 in	All	Black		Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle	16
Molex 2011731024	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	2 µin	0.051 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications	Pick and Place	5.4 mm	0.213 in	All	Black	24	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle
Molex 2011730110	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	15 µin	0.38 µm	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications		5.4 mm	0.213 in	All	Black	10	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle
Molex 2011730220	Latch Holder	Square	125 VDC	Shrouded - 4 Wall	30 Áin	0.76 Ám	Solder	UL94 V-0	2	2 çm	78.7 çin	105 ░C	-55 °C	Copper Alloy	Tin	0.05 in	1.27 mm	Automotive General Purpose Telecommunications		5.4 mm	0.213 in	All	Black	20	Header	0.05 in	1.27 mm	Male Pin	Gold	Surface Mount Right Angle
