2387405 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CARD EDGE CONNECTOR, 164 CONTACT(S), RIGHT ANGLE, SOLDER TERMINAL, BLACK INSULATOR

Part	Card Thickness	Card Thickness	Features	Read Out	Material - Insulation	Termination	Contact Material	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Gender	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Type	Termination Rows	Number of Rows	Color	Flange Feature	Flange Feature	Flange Feature	Contact Finish	Card Type	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]
TE Connectivity Raychem Cable Protection 2387405-4	0.062 in	1.57 mm	Locking Ramp	Dual	Glass Filled Nylon 9T Polyamide (PA9T)	Solder	Phosphor Bronze	71	11	Board Edge Straddle Mount	0.025 µm	1 µin	164	Female	0.039 in	1 mm	85 °C	-40 °C	Cantilever	2	2	Black	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Gold	PCI Express™
TE Connectivity Raychem Cable Protection 1-2387405-1
TE Connectivity Raychem Cable Protection 1-2387405-2
TE Connectivity Raychem Cable Protection 2387405-2	0.062 in	1.57 mm	Locking Ramp	Dual	Glass Filled Nylon 9T Polyamide (PA9T)	Solder	Phosphor Bronze			Board Edge Straddle Mount	0.025 µm	1 µin	64	Female	0.039 in	1 mm	85 °C	-40 °C	Cantilever	2	2	Black	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Gold	PCI Express™	21	11

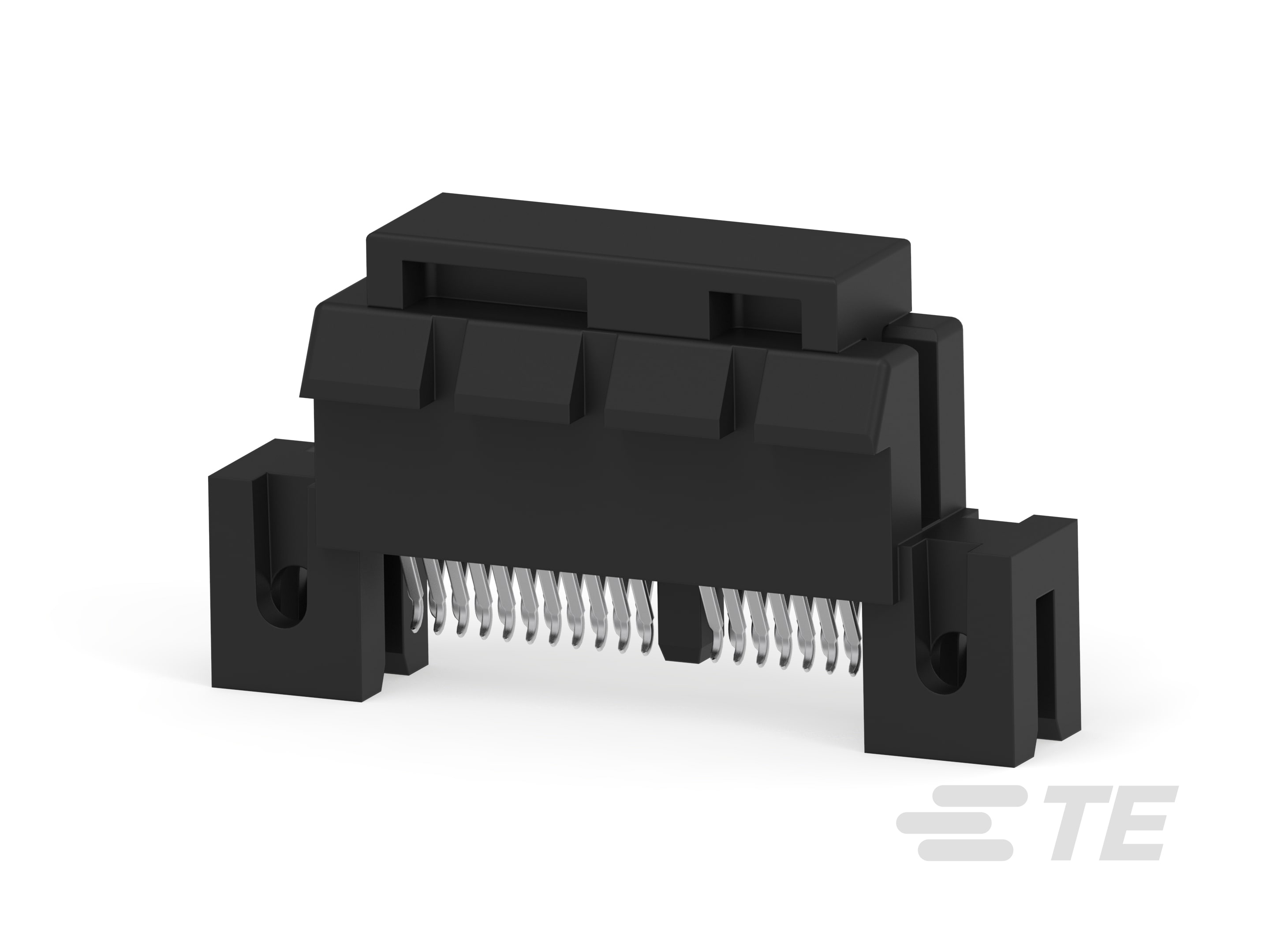

TE Connectivity Raychem Cable Protection 2387405-1	0.062 in	1.57 mm	Locking Ramp	Dual	Glass Filled Nylon 9T Polyamide (PA9T)	Solder	Phosphor Bronze			Board Edge Straddle Mount	0.025 µm	1 µin	36	Female	0.039 in	1 mm	85 °C	-40 °C	Cantilever	2	2	Black	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Gold	PCI Express™		7	11

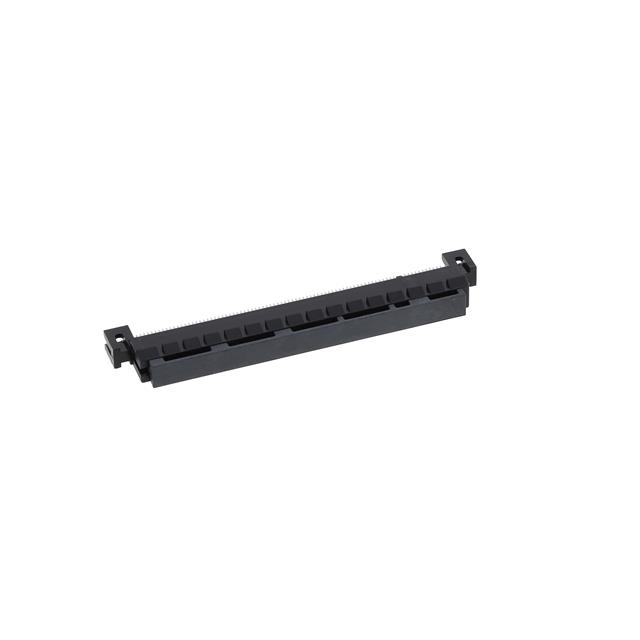

TE Connectivity Raychem Cable Protection 2-2387405-4	0.062 in	1.57 mm	Locking Ramp	Dual	Glass Filled Nylon 9T Polyamide (PA9T)	Solder	Phosphor Bronze	71	11	Board Edge Straddle Mount	0.76 Ám	30 Áin	164	Female	0.039 in	1 mm	85 °C	-40 °C	Cantilever	2	2	Black	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Gold	PCI Express™

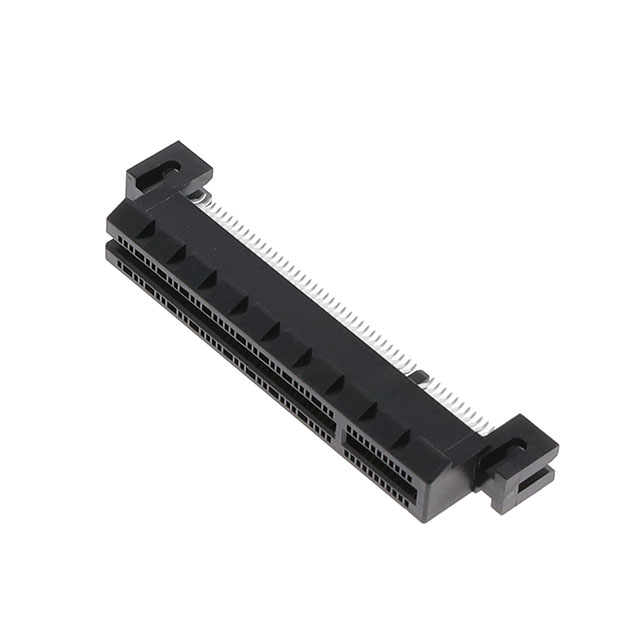

TE Connectivity Raychem Cable Protection 2-2387405-3	0.062 in	1.57 mm	Locking Ramp	Dual	Glass Filled Nylon 9T Polyamide (PA9T)	Solder	Phosphor Bronze			Board Edge Straddle Mount	0.76 Ám	30 Áin	98	Female	0.039 in	1 mm	85 °C	-40 °C	Cantilever	2	2	Black	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Gold	PCI Express™	38	11

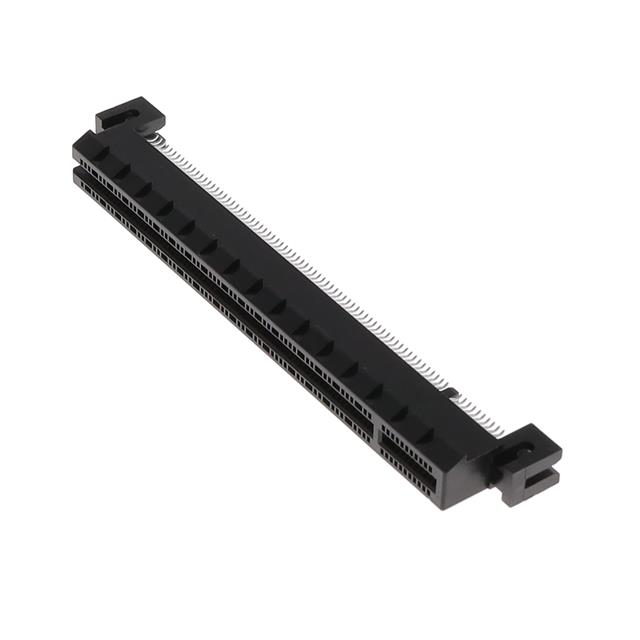

TE Connectivity Raychem Cable Protection 1-2387405-4

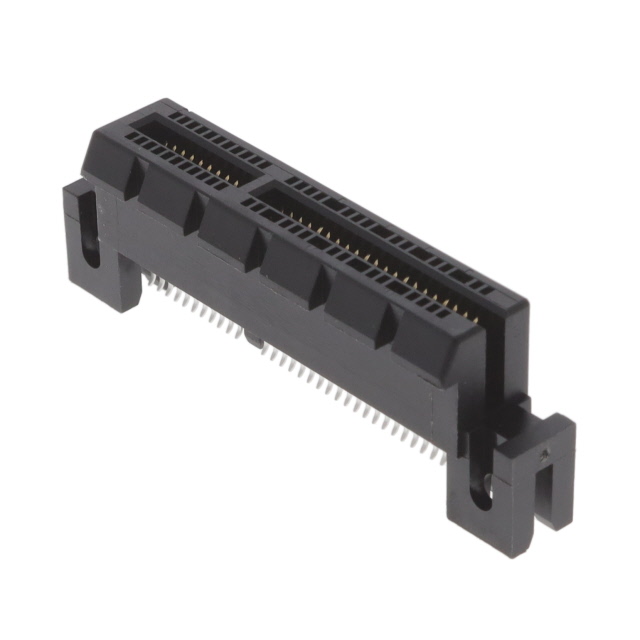

TE Connectivity Raychem Cable Protection 2-2387405-2	0.062 in	1.57 mm	Locking Ramp	Dual	Glass Filled Nylon 9T Polyamide (PA9T)	Solder	Phosphor Bronze			Board Edge Straddle Mount	0.76 Ám	30 Áin	64	Female	0.039 in	1 mm	85 °C	-40 °C	Cantilever	2	2	Black	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Gold	PCI Express™	21	11

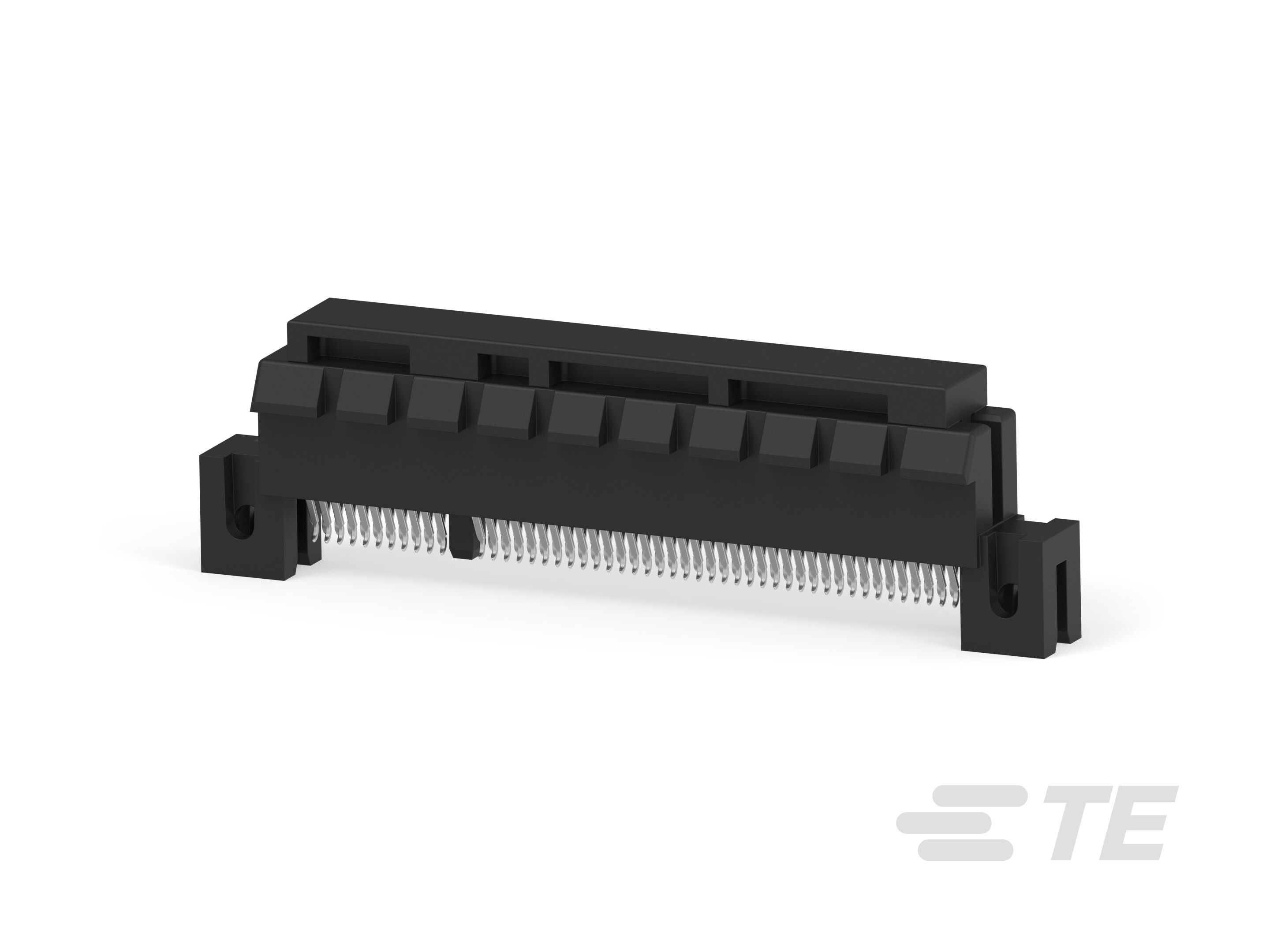

TE Connectivity Raychem Cable Protection 2387405-3	0.062 in	1.57 mm	Locking Ramp	Dual	Glass Filled Nylon 9T Polyamide (PA9T)	Solder	Phosphor Bronze			Board Edge Straddle Mount	0.025 µm	1 µin	98	Female	0.039 in	1 mm	85 °C	-40 °C	Cantilever	2	2	Black	Straddle Mount Opening Unthreaded	2.2 mm	0.087 in	Gold	PCI Express™	38	11
