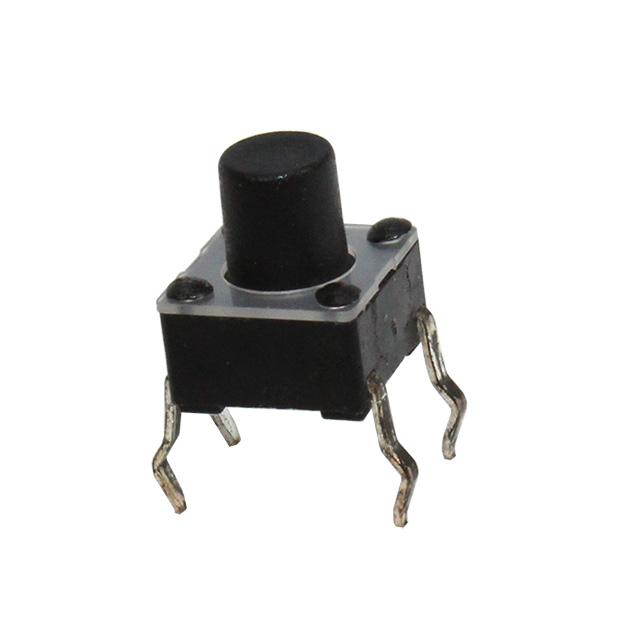

CT11027 Series

Catalog

SWITCH TACTILE SPST-NO 0.05A 50V

Part	Actuator Material	Switch Travel	Actuator Height off PCB, Vertical [z]	Outline [x]	Outline [y]	Switch Function	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Orientation	Termination Style	Illumination	Mounting Type	Operating Force	Actuator Type	Contact Rating @ Voltage	Actuator Height off PCB, Vertical

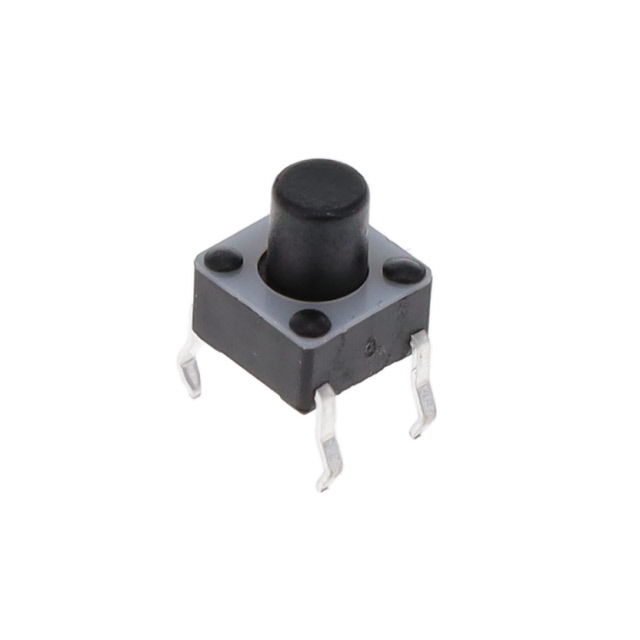

CIT Relay and Switch CT11027.0F160	Nylon 6/6 Polyamide (PA66)	0.25 mm	7 mm	6 mm	6 mm	Off-Mom	SPST-NO	85 °C	-40 C	Top Actuated	PC Pin	Non-Illuminated	Through Hole	160 gf	Standard	0.05 A 50 VDC
CIT Relay and Switch CT11027.0F260	Nylon 6/6 Polyamide (PA66)	0.25 mm	7 mm	6 mm	6 mm	Off-Mom	SPST-NO	85 °C	-40 C	Top Actuated	PC Pin	Non-Illuminated	Through Hole	260 gf	Plunger for Cap	0.05 A 50 VDC
CIT Relay and Switch CT11027.5F100	Nylon 6/6 Polyamide (PA66)	0.25 mm		6 mm	6 mm	Off-Mom	SPST-NO	85 °C	-40 C	Top Actuated	PC Pin	Non-Illuminated	Through Hole	100 gf	Plunger for Cap	0.05 A 50 VDC	7.5 mm
CIT Relay and Switch CT11027.5F160	Nylon 6/6 Polyamide (PA66)	0.25 mm		6 mm	6 mm	Off-Mom	SPST-NO	85 °C	-40 C	Top Actuated	PC Pin	Non-Illuminated	Through Hole	160 gf	Plunger for Cap	0.05 A 50 VDC	7.5 mm
