CABLE MOUNTING & ACCESSORIES RCA30SM8 RATCHET P CLAMP

Part	Type	Opening Size [Max]	Opening Size [Min]	Opening Size [Max]	Opening Size [Min]	Color	Length	Length	Type Attributes	Type Attributes	Material	Material Flammability Rating	Features	Width [y]	Width [y]	Mounting Type	Panel Hole Size	Panel Hole Size	Length [x]	Length [x]	Opening Size [Max]
HELLERMANNTYTON 151-01428	Clamp P-Type	0.54 in	5.33 mm	13.72 mm	0.21 in	Black	71.2 mm	2.803 in	30 °	Ratchet Ribbed	Nylon 6/6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	34.9 mm	Fastener	0.327 in	8.31 mm

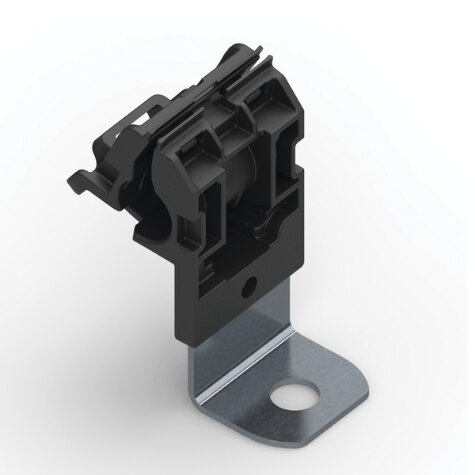

HELLERMANNTYTON 151-01935	Clamp P-Type	0.539 in	6.2 mm		0.244 in	Black				90° Ratchet Ribbed	Nylon 6/6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	34.9 mm	Fastener	0.256 in	6.5 mm	68.8 mm	2.709 in	13.7 mm
HELLERMANNTYTON 151-01644	Clamp P-Type	0.54 in	5.33 mm	13.72 mm	0.21 in	Black	96.8 mm	3.811 in		90° Ratchet Ribbed	Nylon 6/6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	34.9 mm	Fastener	0.256 in	6.5 mm
HELLERMANNTYTON 151-01923	Clamp P-Type	0.539 in	6.2 mm		0.244 in	Black	86.9 mm	3.421 in	15 °	Ratchet Ribbed	Nylon 6/6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	34.9 mm	Fastener	0.256 in	6.5 mm			13.7 mm
HELLERMANNTYTON 151-01670	Clamp P-Type	0.54 in	5.33 mm	13.72 mm	0.21 in	Black	83.1 mm	3.272 in	180 °	Ratchet Ribbed	Nylon 6/6 Polyamide (PA66) Steel	UL94 HB	Chemical Resistant Heat Stabilized Impact Resistant Slotted for Cable Tie UV Resistant	1.374 in	34.9 mm	Fastener	0.256 in	6.5 mm
HELLERMANNTYTON 151-01924	Clamp P-Type	0.539 in	6.2 mm		0.244 in	Black	86.9 mm	3.421 in	15 °	Ratchet Ribbed	Nylon 6/6 Polyamide (PA66) Steel	UL94 HB	Heat Stabilized Impact Resistant UV Resistant	1.374 in	34.9 mm	Fastener	0.327 in	8.31 mm			13.7 mm
