746-118 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 118POS 0.125

Part	Material - Insulation	Termination Rows [custom]	Termination	Contact Finish Thickness	Contact Finish Thickness	Mounting Type	Gender	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Rows [custom]	Color	Read Out	Number of Positions/Bay/Row [custom]	Card Type	Contact Finish	Number of Positions	Pitch	Pitch	Contact Type	Card Thickness [Max]	Card Thickness [Min]
EDAC Inc. 746-118-527-606	Polyester Thermoplastic	2	Press-Fit	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-118-553-206	Polyester Thermoplastic	2	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-118-541-201	Polyester Thermoplastic	2	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-118-525-601	Polyester Thermoplastic	2	Press-Fit	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

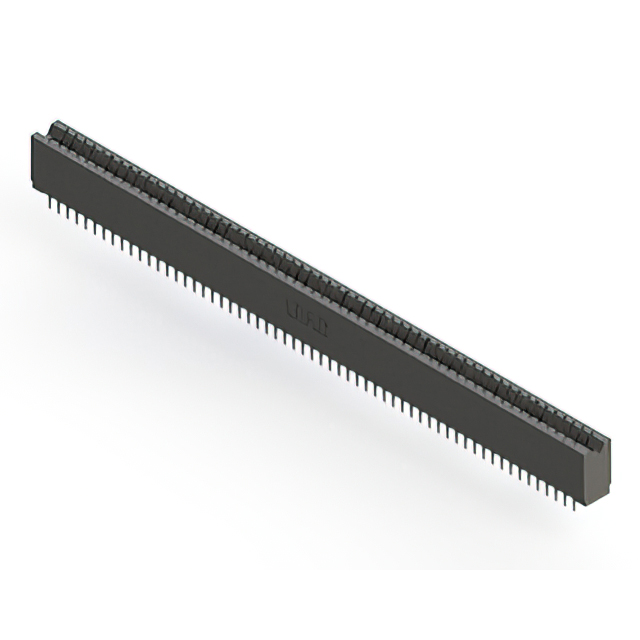

EDAC Inc. 746-118-520-206	Polyester Thermoplastic	2	Press-Fit	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-118-553-606	Polyester Thermoplastic	2	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm

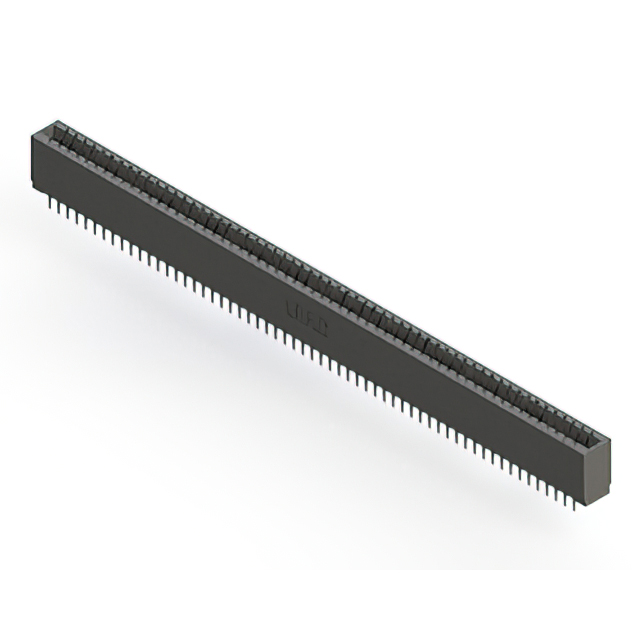

EDAC Inc. 746-118-520-201	Polyester Thermoplastic	2	Press-Fit	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-118-525-206	Polyester Thermoplastic	2	Press-Fit	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-118-541-206	Polyester Thermoplastic	2	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
EDAC Inc. 746-118-540-606	Polyester Thermoplastic	2	Press-Fit Wire Wrap	30 Áin	0.76 Ám	Through Hole	Female	Copper Alloy	-40 C	105 ░C	2	Black	Dual	59	Non Specified - Dual Edge	Gold	118	3.18 mm	0.125 in	Cantilever	0.07 in 1.78 mm	0.054 in 1.37 mm
