GLCC0 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 120V
| Part | Voltage Rating - DC | Termination Style | Voltage Rating - AC | Differential Travel | Operating Temperature [Max] | Operating Temperature [Min] | Actuator Type | Operating Position | Circuit | Switch Function | Current Rating (Amps) | Pretravel | Mechanical Life | Features | Operating Force | Ingress Protection | Overtravel | Mounting Type | Operating Position | Pretravel | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 125 VDC | Screw Terminal | 120 V | 12 ° | 85 °C | -40 °C | Roller Side Rotary | 26 ° | SPDT | On-Mom | 6 A 550 mA | 26 ° | 10000000 Cycles | Steel Roller | 12 gfm | IP67 - Dust Tight Waterproof | 49 ° | Chassis Mount | |||
Honeywell Sensing and Productivity Solutions | 50 VDC | Screw Terminal | 50 V | 12 ° | 85 °C | -40 °C | Side Rotary Adjustable Roller | 26 ° | SPDT | On-Mom | 100 mA | 26 ° | 10000000 Cycles | Steel Roller | 12 gfm | IP67 - Dust Tight Waterproof | 49 ° | Chassis Mount | |||

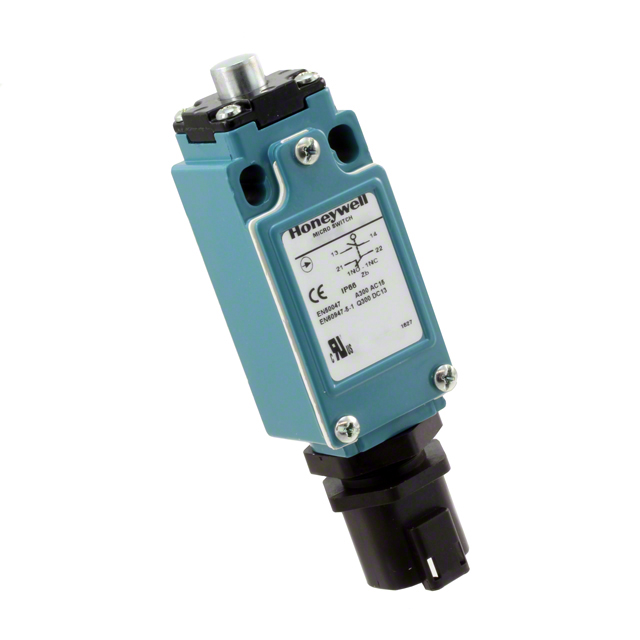

 Honeywell Sensing and Productivity Solutions | 125 VDC | Cable with Connector | 120 V | 85 °C | -40 °C | Round (Pin Plunger) | 0.71 " | SPDT | On-Mom | 6 A 550 mA | 0.12 in | 15000000 Cycles | 1632 gf | IP67 - Dust Tight Waterproof | 0.118 in | Chassis Mount | 18 mm | 3 mm | 3 mm | ||

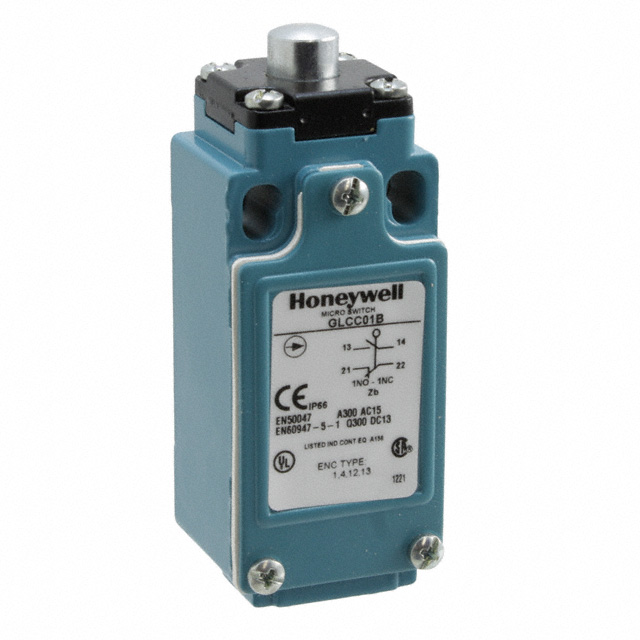

 Honeywell Sensing and Productivity Solutions | 125 VDC | Screw Terminal | 120 V | 85 °C | -40 °C | Round (Pin Plunger) | 0.71 " | SPDT | On-Mom | 6 A 550 mA | 0.12 in | 15000000 Cycles | 1632 gf | IP67 - Dust Tight Waterproof | 0.118 in | Chassis Mount | 18 mm | 3 mm | 3 mm |
