6349 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

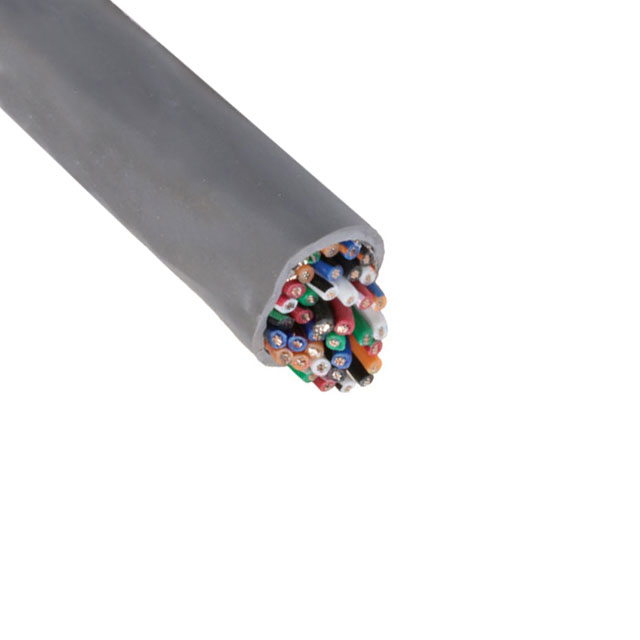

CABLE 37COND 22AWG SHLD 100'
| Part | Shield Type | Number of Conductors | Shield Material | Conductor Insulation | Conductor Material | Length [x] | Length [x] | Operating Temperature [Min] | Operating Temperature [Max] | Shield Coverage | Wire Gauge | Jacket (Insulation) Material | Features | Cable Type | Jacket Color | Ratings | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Braid Foil | 37 | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | Copper Tinned | 30.5 m | 100 ft | -20 C | 80 C | 65 % 100 % | 22 AWG | Poly-Vinyl Chloride (PVC) | Drain Wire | Multi-Conductor | Slate | UL Style 2464 | 28 | 7 | 300 V | 0.44 in | 11.18 mm | ||
 ALPHA WIRE | Braid Foil | 37 | Aluminum Copper Tinned | Poly-Vinyl Chloride (PVC) | Copper Tinned | -20 C | 80 C | 65 % 100 % | 22 AWG | Poly-Vinyl Chloride (PVC) | Drain Wire | Multi-Conductor | Slate | UL Style 2464 | 28 | 7 | 300 V | 0.44 in | 11.18 mm | 1000 ft | 304.8 m |
