070928 Series
Manufacturer: Molex
Beta
⌘K

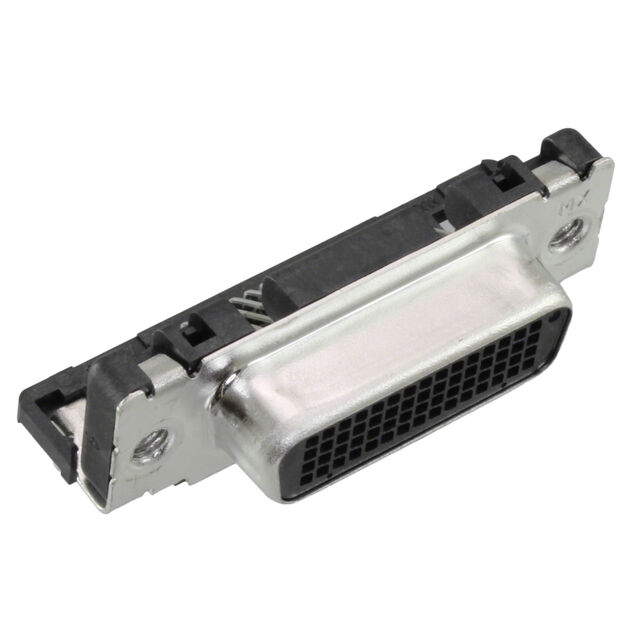

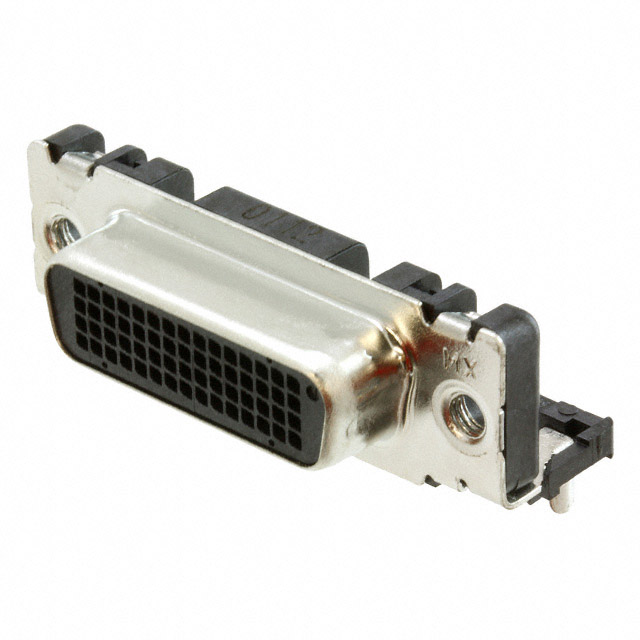

CONN D-TYPE RCPT 60POS R/A SLDR
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Material Flammability Rating | Contact Material | Connector Type | Color | Contact Finish | Backset Spacing | Backset Spacing | Flange Feature | Number of Positions | Dielectric Material | Connector Style | Contact Type | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Features | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | -20 C | 80 C | 40 V | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | Black | Gold | 0.208 in | 5.28 mm | Housing/Shell (M3) | 60 | Thermoplastic Glass Filled | Board to Board D-Type Matrix | Signal | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | 0.05 | 0.05 | Board Lock Shielded | Solder |
Molex | -20 C | 80 C | 40 V | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | Black | Gold | 0.208 in | 5.28 mm | Housing/Shell (M3) | 60 | Liquid Crystal Polymer (LCP) Glass Filled | Board to Board D-Type Matrix | Signal | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | 0.05 | 0.05 | Board Lock Shielded | Solder |
 Molex | -20 C | 80 C | 40 V | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | Black | Gold | 0.208 in | 5.28 mm | Housing/Shell (M3) | 60 | Thermoplastic Glass Filled | Board to Board D-Type Matrix | Signal | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | 0.05 | 0.05 | Board Lock Shielded | Solder |
Molex | -20 C | 80 C | 40 V | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | Black | Gold | 0.208 in | 5.28 mm | Housing/Shell (M3) | 60 | Liquid Crystal Polymer (LCP) Glass Filled | Board to Board D-Type Matrix | Signal | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | 0.05 | 0.05 | Board Lock Shielded | Solder |
Molex | -20 C | 80 C | 40 V | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | Black | Gold | 0.208 in | 5.28 mm | Housing/Shell (M3) | 60 | Liquid Crystal Polymer (LCP) Glass Filled | Board to Board D-Type Matrix | Signal | Board Edge Right Angle Through Hole | 0.76 Ám | 30 Áin | 0.05 | 0.05 | Board Lock Shielded | Solder |
 Molex | -20 C | 80 C | 40 V | UL94 V-0 | Copper Alloy | Receptacle Female Sockets | Black | Gold | 0.208 in | 5.28 mm | Housing/Shell (M3) | 60 | Polymer Glass Filled | Board to Board D-Type Matrix | Signal | Panel Mount Right Angle Through Hole | 0.76 Ám | 30 Áin | 0.05 | 0.05 | Board Lock Shielded | Solder |
