M80-840 Series

Catalog

BOARD-TO-BOARD CONNECTOR, VERTICAL, DATAMATE L-TEK M80 SERIES, THROUGH HOLE, RECEPTACLE, 6, 2 MM ROHS COMPLIANT: YES

Part	Insulation Material	Contact Shape	Contact Material	Applications	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Length - Post [x]	Contact Length - Post [x]	Style	Insulation Color	Connector Type	Material Flammability Rating	Number of Positions Loaded	Insulation Height	Insulation Height	Number of Rows	Termination	Number of Positions	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Fastening Type	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Contact Finish - Post	Voltage Rating	Mounting Type

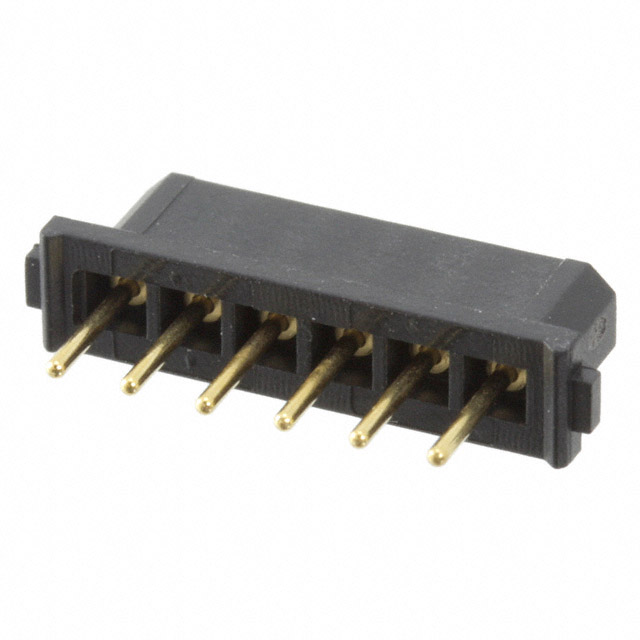

Harwin Inc. M80-8400645	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	10 Áin	0.25 çm	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder	6	7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Gold	800 V	Through Hole
Harwin Inc. M80-8400642	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	137.8 Áin	3.5 Ám	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder	6	7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Tin	800 V	Through Hole

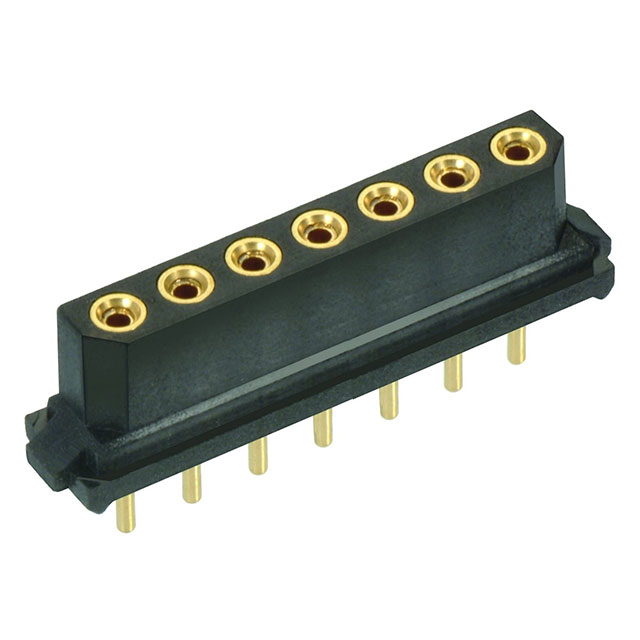

Harwin Inc. M80-8400745	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	10 Áin	0.25 çm	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder	7	7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Gold	800 V	Through Hole
Harwin Inc. M80-8400445	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	10 Áin	0.25 çm	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder	4	7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Gold	800 V	Through Hole

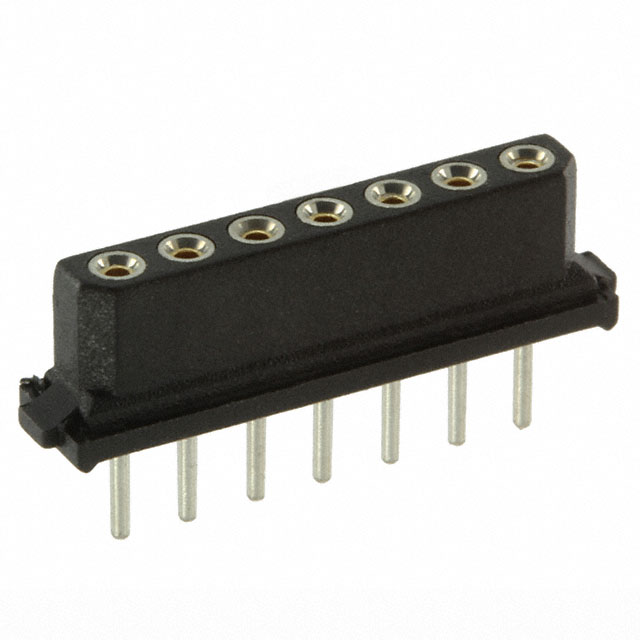

Harwin Inc. M80-8400742	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	137.8 Áin	3.5 Ám	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder	7	7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Tin	800 V	Through Hole

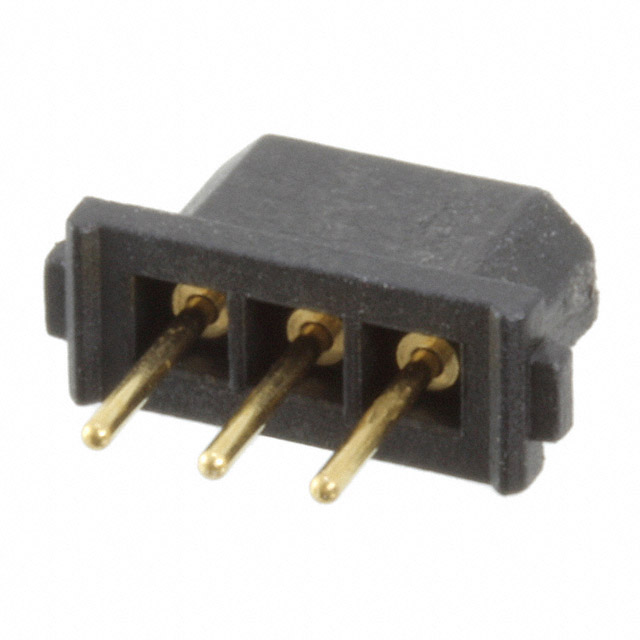

Harwin Inc. M80-8400345	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	10 Áin	0.25 çm	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder		7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Gold	800 V	Through Hole

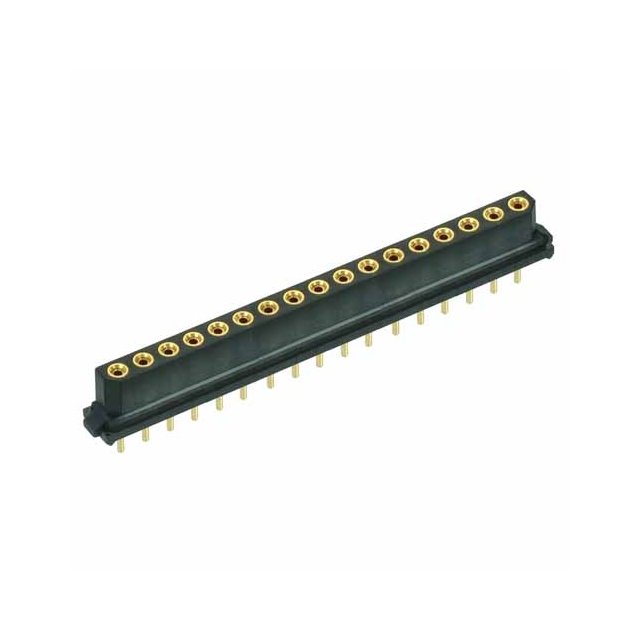

Harwin Inc. M80-8401745	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	10 Áin	0.25 çm	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder		7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Gold	800 V	Through Hole

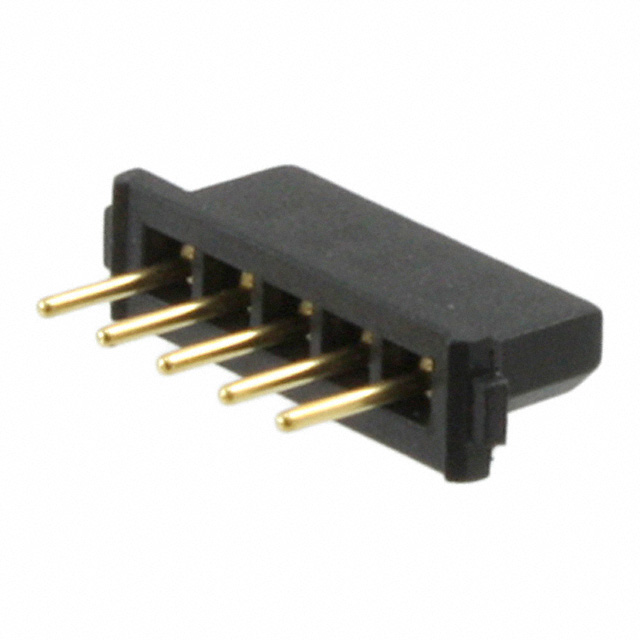

Harwin Inc. M80-8400545	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	10 Áin	0.25 çm	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder	5	7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Gold	800 V	Through Hole

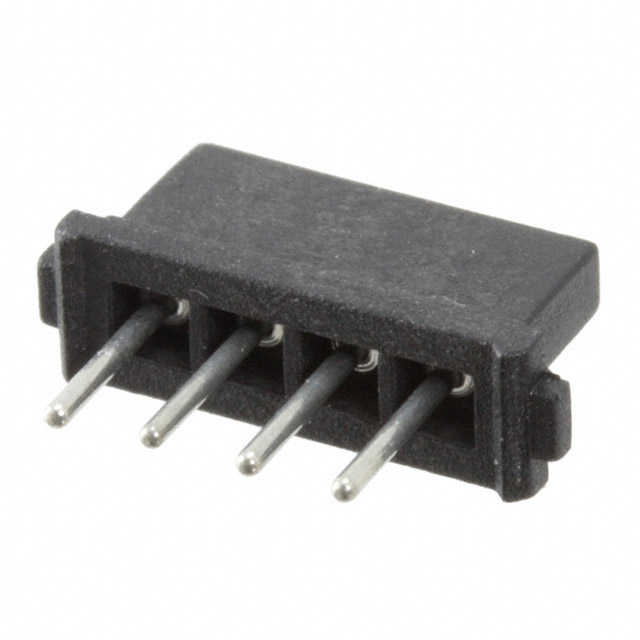

Harwin Inc. M80-8400442	Glass Filled Nylon 4/6 Polyamide (PA46)	Circular	Beryllium Copper	Automotive General Purpose Military	137.8 Áin	3.5 Ám	0.126 "	3.2 mm	Board to Board Cable	Black	Receptacle	UL94 V-0	All	0.202 in	5.14 mm	1	Solder	4	7.23 mm 7.83 mm	0.079 "	2 mm	Locking Ramp	Female Socket	12 Áin	0.3 Ám	-55 C	125 °C	Gold	Tin	800 V	Through Hole
