317-028 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FMALE 28POS 0.156

Part	Material - Insulation	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Card Type	Flange Feature	Color	Contact Type	Gender	Card Thickness [Max]	Card Thickness [Min]	Read Out	Pitch	Pitch	Number of Rows [custom]	Termination	Number of Positions/Bay/Row	Mounting Type	Number of Positions	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 317-028-542-808	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	2	Wire Wrap	14	Through Hole	28

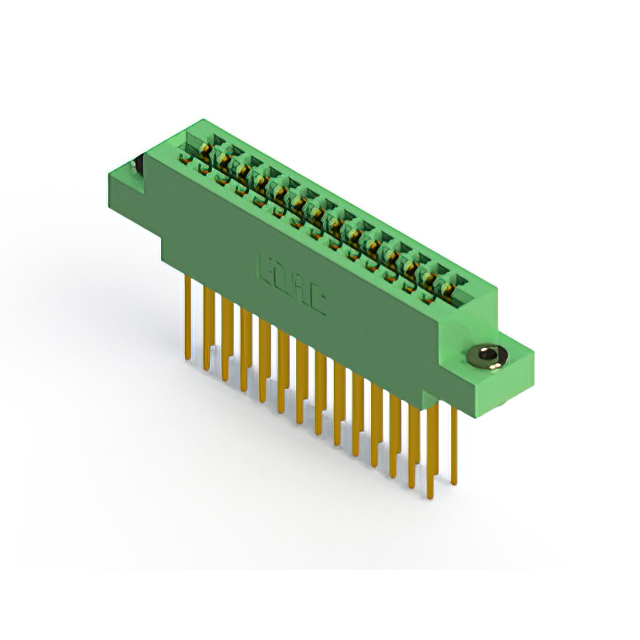

EDAC Inc. 317-028-542-803	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Floating Bobbin Flush Mount	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	2	Wire Wrap	14	Through Hole	28	0.116 "	2.95 mm
EDAC Inc. 317-028-541-603	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Floating Bobbin Flush Mount	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.96 mm	0.156 in	2	Wire Wrap	28	Through Hole	56	0.116 "	2.95 mm
EDAC Inc. 317-028-541-607	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	M3 Threaded Insert Top Mount Opening	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.96 mm	0.156 in	2	Wire Wrap	28	Through Hole	56
EDAC Inc. 317-028-542-878	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	2	Wire Wrap	14	Through Hole	28			Card Guides

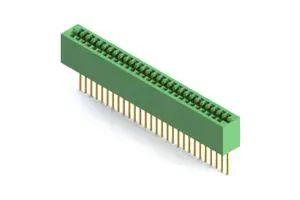

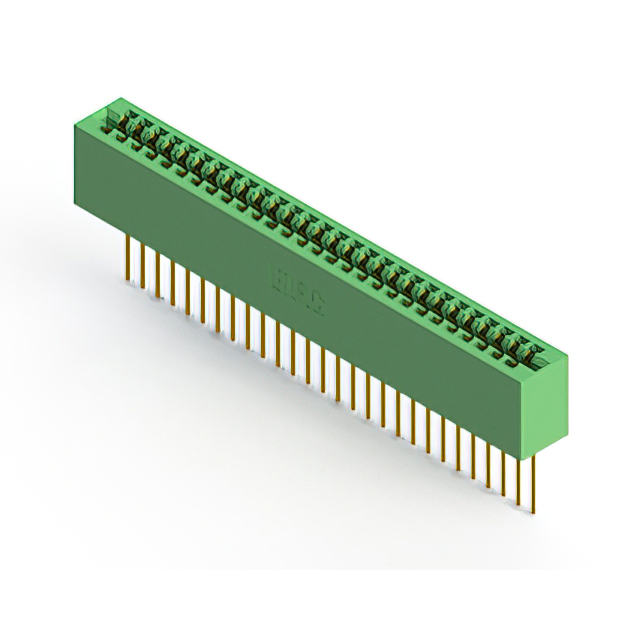

EDAC Inc. 317-028-541-601	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge		Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.96 mm	0.156 in	2	Wire Wrap	28	Through Hole	56
EDAC Inc. 317-028-540-803	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	Floating Bobbin Flush Mount	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	2	Wire Wrap	14	Through Hole	28	0.116 "	2.95 mm

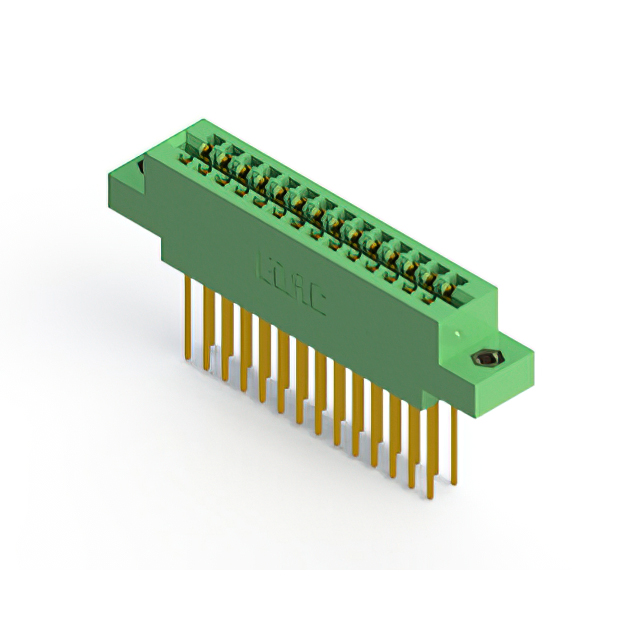

EDAC Inc. 317-028-542-807	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	M3 Threaded Insert Top Mount Opening	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	2	Wire Wrap	14	Through Hole	28
EDAC Inc. 317-028-540-807	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	M3 Threaded Insert Top Mount Opening	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Dual	3.96 mm	0.156 in	2	Wire Wrap	14	Through Hole	28

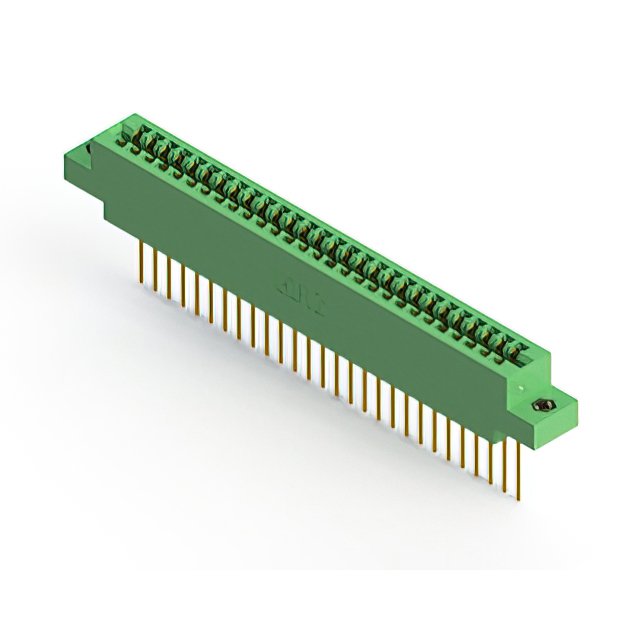

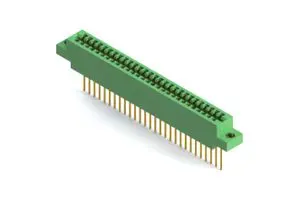

EDAC Inc. 317-028-541-608	Diallyl Phthalate (DAP)	Copper Alloy	-65 ░C	125 °C	0.25 Ám	10 Áin	Gold	Non Specified - Dual Edge	4-40 Threaded Insert Top Mount Opening	Green	Cantilever	Female	0.07 in 1.78 mm	0.054 in 1.37 mm	Single	3.96 mm	0.156 in	2	Wire Wrap	28	Through Hole	56
