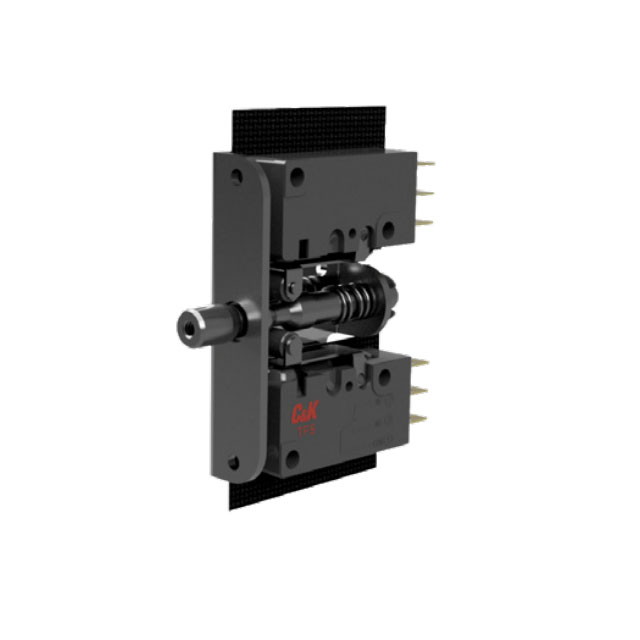

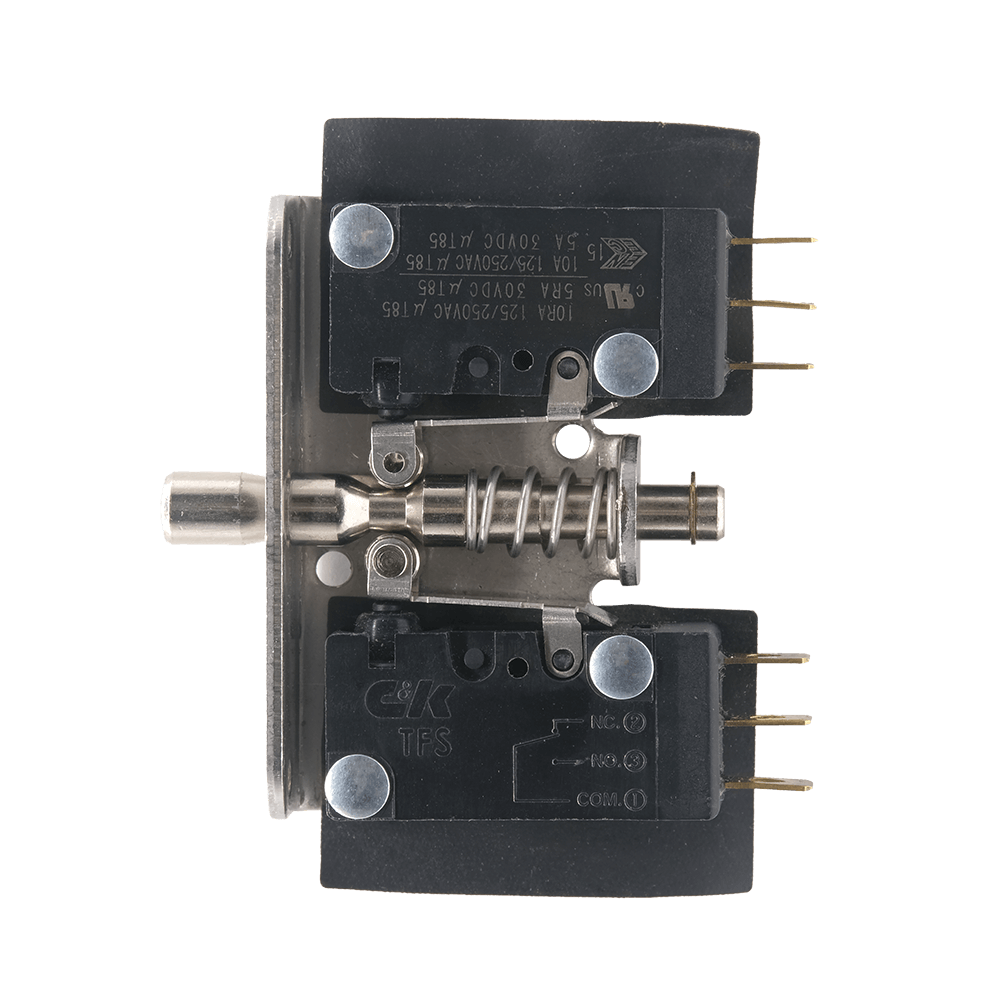

Sl0 Series Series

Large Heavy Duty Snap-Acting Switches

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Large Heavy Duty Snap-Acting Switches

Part	Termination Style	Switch Function	Voltage Rating - AC	Operating Force	Voltage Rating - DC	Mounting Type	Current Rating (Amps)	Actuator Type	Circuit	Mechanical Life	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]
Littelfuse/Commercial Vehicle Products 12SL40210	Quick Connect - 0.187" (4.7mm)	On-On-Mom	125 V	200 gf	30 V	Chassis Mount	5 A 10 A	Push-Pull Plunger	SPDT	1000000 Cycles	10000 Cycles	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products 11SL40410	Quick Connect - 0.187" (4.7mm)	On-On-Mom	125 V	200 gf	30 V	Chassis Mount	5 A 10 A	Push-Pull Plunger	SPDT	1000000 Cycles	10000 Cycles	85 °C	-40 °C
Littelfuse/Commercial Vehicle Products 23SL40410	Quick Connect - 0.187" (4.7mm)	On-On-Mom	125 V	200 gf	30 V	Chassis Mount	5 A 10 A	Push-Pull Plunger	DPDT	1000000 Cycles	10000 Cycles	85 °C	-40 °C

Catalog

Large Heavy Duty Snap-Acting Switches

Key Features

• IP67 rated encapsulated wires version

• Threaded or non-threaded plunger

• Dust tight for the quick connect terminal version

• From 0.1A to 10A max. / AC or DC Voltage

• Push (MOM) / pull motion (maintained)

• Excellent sealed solution for harsh or outdoors applications

• Ruggedize design for door detect applications (harsh environments)

Description

SL series is a sealed heavy duty interlock switch perfect for outdoors and harsh environment applications. It offers with 0.187"quick connect terminal or potted 12 inches (304.8 mm) wire long and IP67 rated.
