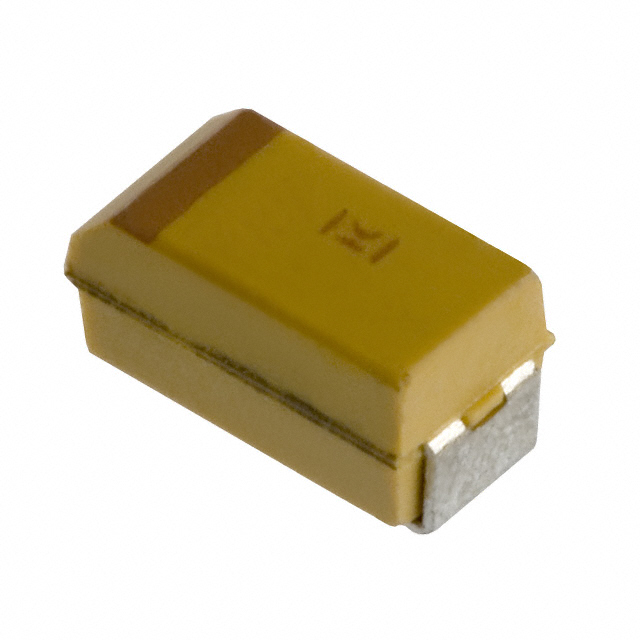

T491S Series
Manufacturer: KEMET
Beta
⌘K
SURFACE MOUNT TANTALUM CAPACITOR, 1 ΜF, 20 V, 1206 [3216 METRIC], ± 10%, 18 OHM, S
| Part | Features | ESR (Equivalent Series Resistance) | Type | Mounting Type | Lifetime @ Temp. | Voltage - Rated | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Tolerance | Capacitance | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Manufacturer Size Code |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KEMET | General Purpose | 18 Ohm | Molded | Surface Mount | 2000 Hrs | 20 V | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 10 % | 1 µF | 1.2 mm | 0.047 " | S |
KEMET | General Purpose | 18 Ohm | Molded | Surface Mount | 2000 Hrs | 25 VDC | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 20 % | 1 µF | 1.2 mm | 0.047 " | S |
 KEMET | General Purpose | 15 Ohms | Molded | Surface Mount | 2000 Hrs | 6.3 VDC | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 10 % | 6.8 µF | 1.2 mm | 0.047 " | S |
KEMET | General Purpose | 15 Ohms | Molded | Surface Mount | 2000 Hrs | 6.3 VDC | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 20 % | 6.8 µF | 1.2 mm | 0.047 " | S |
KEMET | General Purpose | 10 Ohm | Molded | Surface Mount | 2000 Hrs | 6.3 VDC | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 10 % | 15 µF | 1.2 mm | 0.047 " | S |
KEMET | General Purpose | 15 Ohms | Molded | Surface Mount | 2000 Hrs | 10 V | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 20 % | 4.7 µF | 1.2 mm | 0.047 " | S |
KEMET | General Purpose | 15 Ohms | Molded | Surface Mount | 2000 Hrs | 10 V | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 10 % | 4.7 µF | 1.2 mm | 0.047 " | S |
KEMET | General Purpose | 15 Ohms | Molded | Surface Mount | 2000 Hrs | 16 V | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 20 % | 2.2 µF | 1.2 mm | 0.047 " | S |
KEMET | General Purpose | 18 Ohm | Molded | Surface Mount | 2000 Hrs | 20 V | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 20 % | 1 µF | 1.2 mm | 0.047 " | S |
KEMET | General Purpose | 15 Ohms | Molded | Surface Mount | 2000 Hrs | 6.3 VDC | 0.063 " | 0.126 " | 3.2 mm | 1.6 mm | -55 C | 125 °C | 1206 (3216 Metric) | 10 % | 4.7 µF | 1.2 mm | 0.047 " | S |
