MX23A40N Series
Manufacturer: JAE Electronics
Beta
⌘K

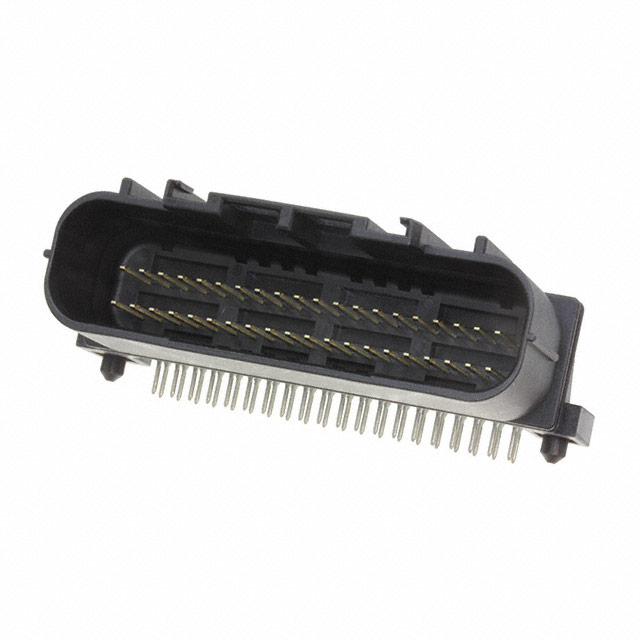

CONN HEADER R/A 40POS 2.5MM
| Part | Applications | Connector Type | Shrouding | Operating Temperature [Max] | Operating Temperature [Min] | Number of Rows [custom] | Number of Positions | Termination | Insulation Material | Ingress Protection | Contact Finish - Post | Number of Positions Loaded | Insulation Color | Fastening Type | Current Rating (Amps) | Row Spacing - Mating | Row Spacing - Mating | Contact Material | Features | Style | Pitch - Mating | Pitch - Mating | Contact Shape | Mounting Type | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Height | Insulation Height | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JAE Electronics | Automotive | Header | Shrouded - 4 Wall | 125 °C | -40 C | 2 | 40 | Solder | Polybutylene Terephthalate (PBT) Glass Filled | Waterproof | Tin | All | Black | Latch Holder | 3 A | 4.4 mm | 0.173 " | Brass | Board Guide | Board to Cable/Wire | 2.5 mm | 0.098 in | Square | Right Angle Through Hole | 0.122 in | 3.1 mm | 0.72 in | 18.3 mm | Male Pin |
