CD5 Series

Manufacturer: PULS, LP

Catalog

DC/DC DIN RAIL SUPPLY 24V 120W

Part	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Approval Agency	Current - Output (Max)	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	Applications	Efficiency	Input Type	Standard Number	Voltage - Output 1	Power (Watts)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Current - Output (Max) [Max]

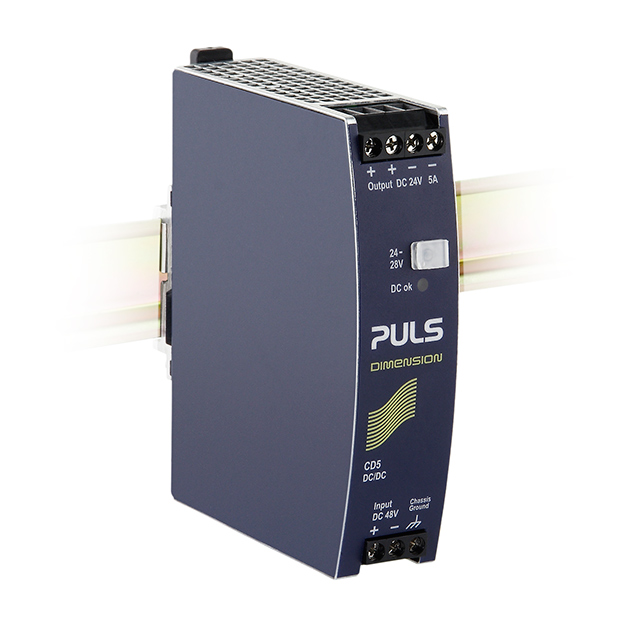

PULS, LP CD5.242	70 °C	-25 °C	1	ABS ATEX CSA DNV GL EAC IEC IECEx UL	5 A	36 V	60 V	ITE (Commercial)	90.3 %	DC	508 60950-1 Class I Div 2	24 V	120 W	32 mm	102 mm	4.02 in	1.26 in	4.88 in	124 mm

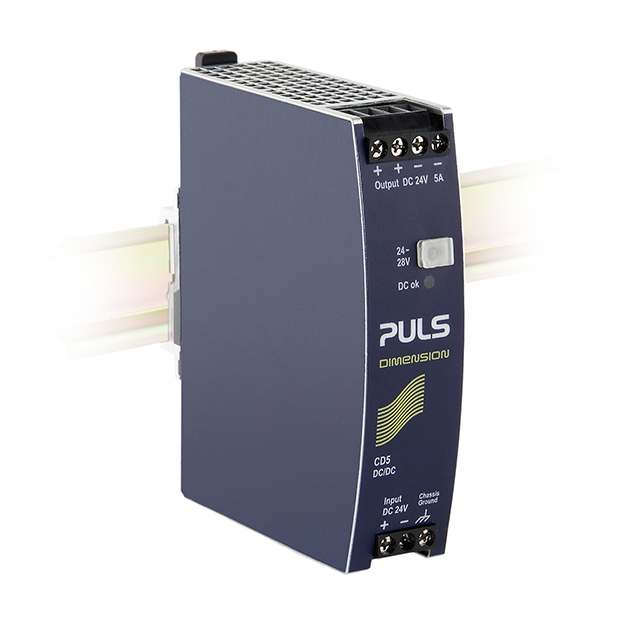

PULS, LP CD5.241	70 °C	-25 °C	1	ABS ATEX CSA DNV GL EAC IEC IECEx UL	5 A	18 V	32.4 V	ITE (Commercial)	90.3 %	DC	508 60950-1 Class I Div 2	24 V	120 W	32 mm	102 mm	4.02 in	1.26 in	4.88 in	124 mm

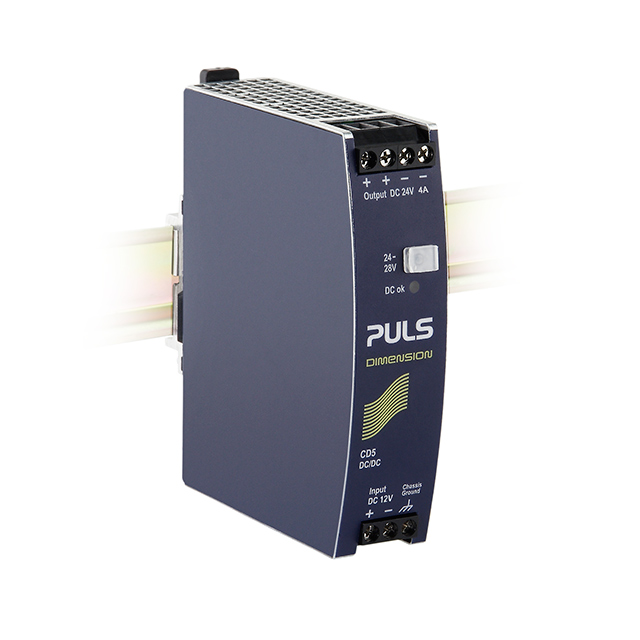

PULS, LP CD5.243	70 °C	-25 °C	1	ABS ATEX CSA DNV GL EAC IEC IECEx UL		10.8 V	16.2 V	ITE (Commercial)	87.7 %	DC	508 60950-1 Class I Div 2	24 V	84 W	32 mm	102 mm	4.02 in	1.26 in	4.88 in	124 mm	4 A

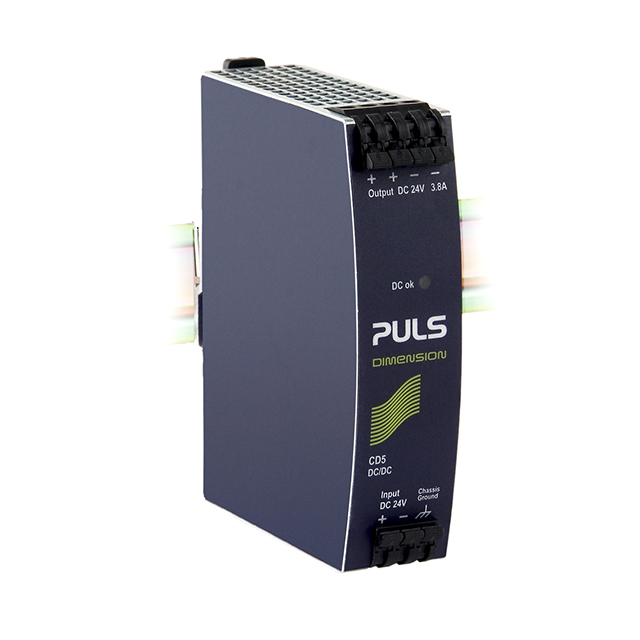

PULS, LP CD5.241-L1	70 °C	-25 °C	1	ABS ATEX CSA DNV GL EAC IEC IECEx NEC UL		14.4 V	32.4 V	ITE (Commercial)	90.5 %	DC	508 60950-1 Class 2 Class I Div 2	24 V	92 W	32 mm	102 mm	4.02 in	1.26 in	4.88 in	124 mm	3.8 A

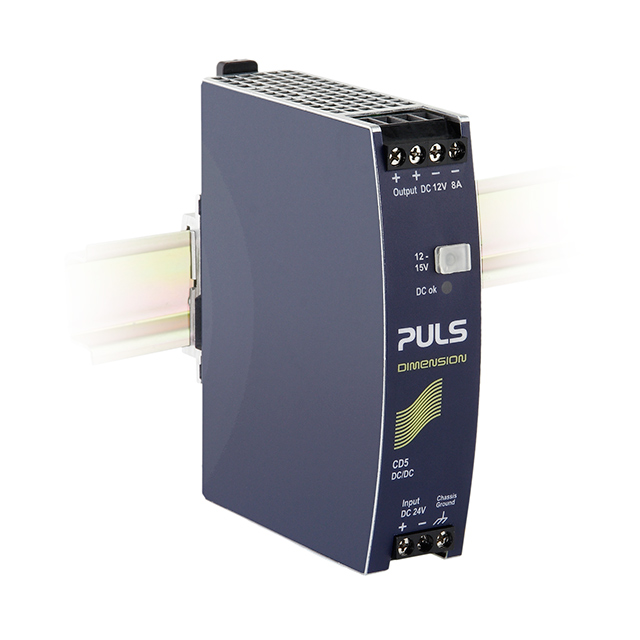

PULS, LP CD5.121	70 °C	-25 °C	1	ABS ATEX CSA DNV GL EAC IEC IECEx UL		18 V	32.4 V	ITE (Commercial)	88.2 %	DC	508 60950-1 Class I Div 2	12 V	96 W	32 mm	102 mm	4.02 in	1.26 in	4.88 in	124 mm	8 A

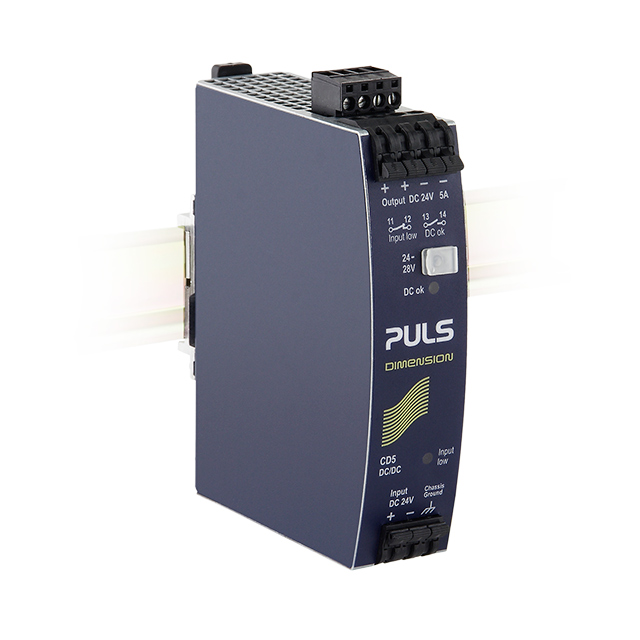

PULS, LP CD5.241-S1	70 °C	-25 °C	1	ABS ATEX CSA DNV GL EAC IEC IECEx UL	5 A	18 V	32.4 V	ITE (Commercial)	90.2 %	DC	508 60950-1 Class I Div 2	24 V	120 W	32 mm	102 mm	4.02 in	1.26 in	4.88 in	124 mm
