208009 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

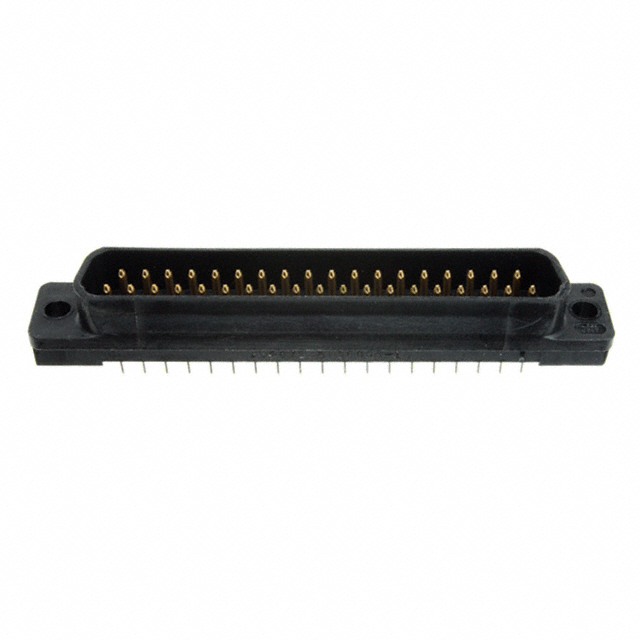

CONN D-SUB PLUG 37POS VERT SLDR
| Part | Current Rating (Amps) | Number of Rows | Connector Style | Shell Size, Connector Layout | Dielectric Material | Connector Type | Color | Number of Positions | Material Flammability Rating | Voltage Rating | Contact Material | Mounting Type | Contact Finish | Contact Type | Contact Finish Thickness | Flange Feature | Termination | Operating Temperature [Max] | Operating Temperature [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 6 A | 2 | D-Sub | 4 (DC C) | Polyester | Male Pins Plug | Black | 37 | UL94 V-0 | 125 VDC | Brass | Through Hole | Gold | Signal | Flash | Housing/Shell (Unthreaded) | Solder | 105 ░C | -55 °C |
