LCM-S01604 Series

Catalog

LCD MOD 64 DIG 16 X 4 REFLECTIVE

Part	Outline L x W x H [x]	Outline L x W x H [z]	Outline L x W x H [y]	Display Type	Background Color	Dot Size [y]	Dot Size [x]	Viewing Area [x]	Viewing Area [y]	Number of Characters	Character Format [x]	Character Format [y]	Display Mode	Operating Temperature [Max]	Display Format [y]	Display Format [x]	Interface	Character Size [z]	Character Size [y]

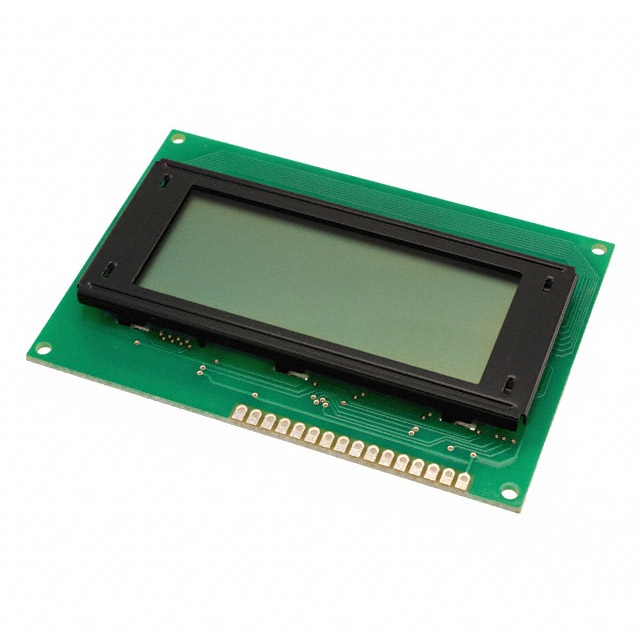

Lumex Opto/Components Inc. LCM-S01604DSR	87 mm	8.9 mm	60 mm	STN - Super-Twisted Nematic	Green	0.55 mm	0.55 mm	65 mm	25.6 mm	64	5 Dots	8 Dots	Reflective	50 °C	4	16	Parallel
Lumex Opto/Components Inc. LCM-S01604DTF	87 mm	12.7 mm	60 mm	TN - Twisted Nematic		0.55 mm	0.55 mm	62 mm	25.6 mm	64	5 Dots	8 Dots	Transflective	50 °C	4	16	Parallel
Lumex Opto/Components Inc. LCM-S01604DTR	87 mm	8.9 mm	60 mm	TN - Twisted Nematic		0.55 mm	0.55 mm	62 mm	25.6 mm	64	5 Dots	8 Dots	Reflective	50 °C	4	16	Parallel

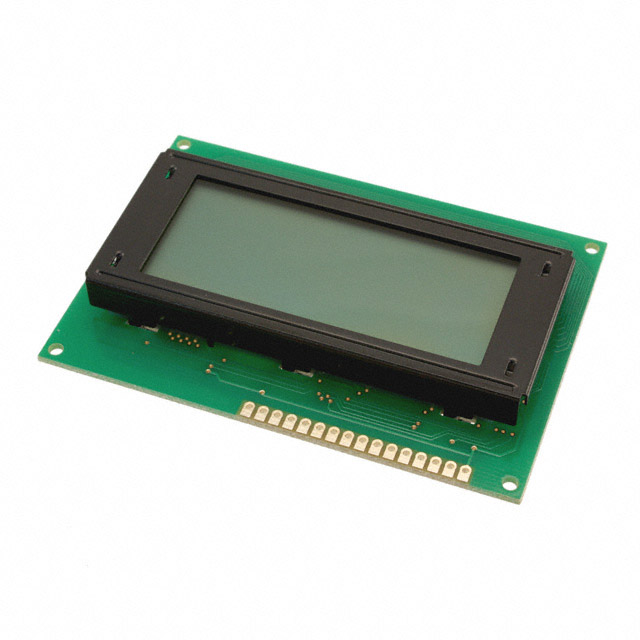

Lumex Opto/Components Inc. LCM-S01604DSF	87 mm	12.7 mm	60 mm	STN - Super-Twisted Nematic	Green	0.55 mm	0.55 mm	62 mm	25.6 mm	64	5 Dots	8 Dots	Transflective	50 °C	4	16	Parallel	4.75 mm	3.55 mm
