Cg0 Series Series

Rocker Switches SPST 16A ON-OFF BLK Single Pole Power Rocker Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Rocker Switches SPST 16A ON-OFF BLK Single Pole Power Rocker Switch

Part	Actuator Type	Actuator Marking	Switch Function	Operating Temperature [Max]	Operating Temperature [Min]	Electrical Life	Mounting Type	Circuit	Approval Agency	Color - Actuator/Cap	Termination Style	Current Rating (Amps)	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Voltage Rating - AC	Illumination Voltage (Nominal)	Illumination Type, Color	Features
Littelfuse/Commercial Vehicle Products CG102J12S205HQF	Concave (Curved)	O I	On-Off	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPST	cULus UL	Black	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V
Littelfuse/Commercial Vehicle Products CG103J12S205QF	Concave (Curved)	No Marking	On-Off-On	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPDT	cULus UL	Black	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V
Littelfuse/Commercial Vehicle Products CG102J3GS205QF7	Concave (Curved) - Illuminated	No Marking	On-Off	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPST	cULus UL	Green	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V	125 VAC	Green Neon
Littelfuse/Commercial Vehicle Products CG102J3AS205QF7	Concave (Curved) - Illuminated	No Marking	On-Off	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPST	cULus UL	Amber	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V	125 VAC	Amber Neon
Littelfuse/Commercial Vehicle Products CG101J12S205QF	Concave (Curved)	No Marking	On-On	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPDT	cULus UL	Black	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V
Littelfuse/Commercial Vehicle Products CG102J23S205QF	Concave (Curved)	Dot	On-Off	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPST	cULus UL	Red White	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V			Two-Tone Rocker

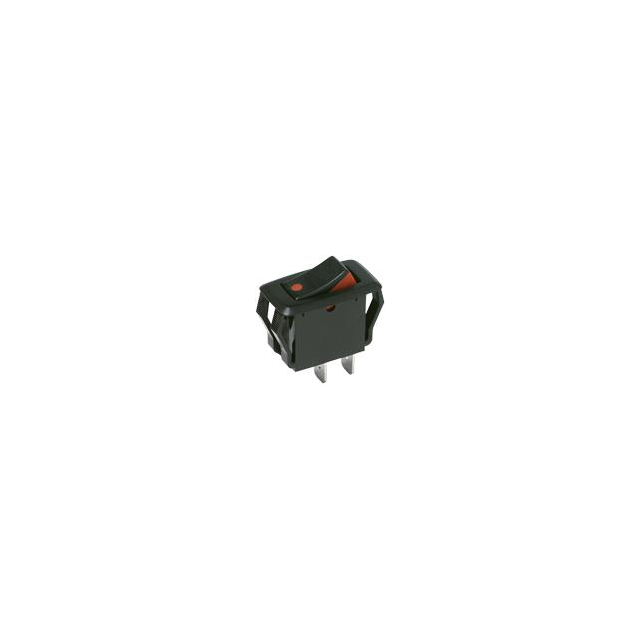

Littelfuse/Commercial Vehicle Products CG102J11S105HQF	Concave (Curved)	O I	On-Off	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPST	cULus UL	White	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V
Littelfuse/Commercial Vehicle Products CG102J12S205PQF	Concave (Curved)	O -	On-Off	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPST	cULus UL	Black	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V

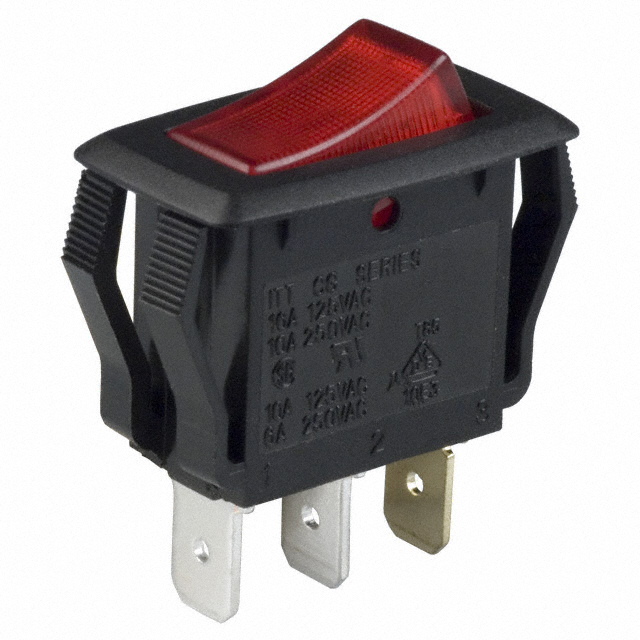

Littelfuse/Commercial Vehicle Products CG102J3RS205QF7	Concave (Curved) - Illuminated	No Marking	On-Off	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPST	cULus UL	Red	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V	125 VAC	Neon Red

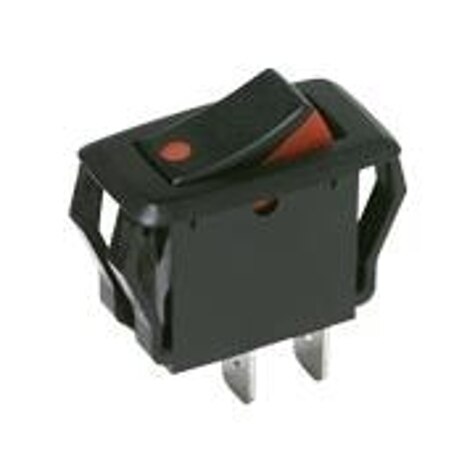

Littelfuse/Commercial Vehicle Products CG105J12S205QF	Concave (Curved)	No Marking	Mom-Off-Mom	85 °C	-20 C	10000 Cycles	Panel Mount Snap-In	SPDT	cULus UL	Black	Quick Connect - 0.250" (6.3mm)	16 A	13.8 mm	27.8 mm	125 V

Catalog

Rocker Switches SPST 16A ON-OFF BLK Single Pole Power Rocker Switch

Key Features

• Beveled frame

• Illuminated versions available

• Easy panel mount installation

Description

C&K’s CG series single pole power rocker switch are designed with a beveled frame and easy panel mount installation, making it perfect for today’s innovative product designs. With optional illumination, the CG switches are most often used in small appliances, instrument panels and industrial controls.
