82_SMA-S50 Series
Manufacturer: Huber+Suhner, Inc.
Beta
⌘K

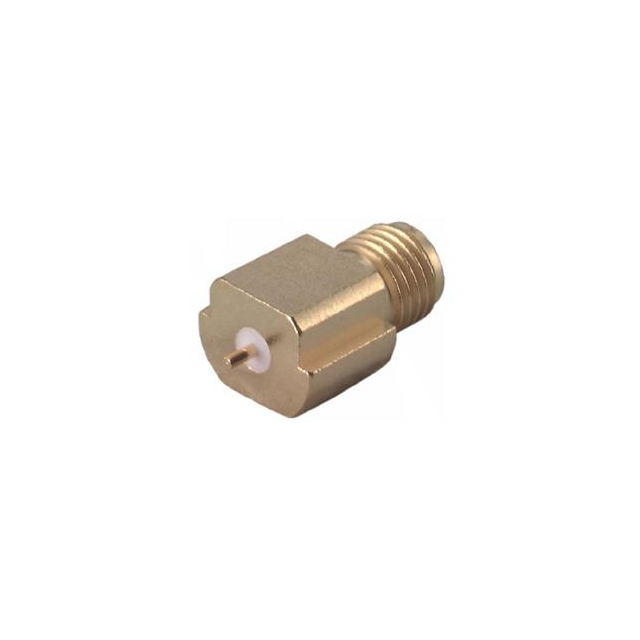

82_SMA-S50-0-45/111_NM
| Part | Body Finish | Dielectric Material | Mating Cycles | Center Contact Plating | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Termination | Connector Style | Mounting Type | Number of Ports | Connector Type | Impedance | Center Contact Material | Contact Termination | Frequency - Max [Max] | Fastening Type | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Gold | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 | Gold | Brass | -65 ░C | 165 °C | Solder | SMA | Board Edge Cutout Surface Mount | 1 | Female Socket Jack | 50 Ohms | Beryllium Copper Brass | Solder | 18 GHz | Threaded | Gold |
