TUSB212-Q1 Series

Automotive USB 2.0 high speed signal conditioner with DC boost with flow thru packaging

Catalog

Automotive USB 2.0 high speed signal conditioner with DC boost with flow thru packaging

Part	Mounting Type	Interface	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Applications	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Type	Function	Utilized IC / Part	Supplied Contents	Qualification	Grade
Texas Instruments TUSB212IRWBR	Surface Mount	USB	12-XFQFN	3.6 V	3 V	Signal Processing	1.6	12-X2QFN	1.6

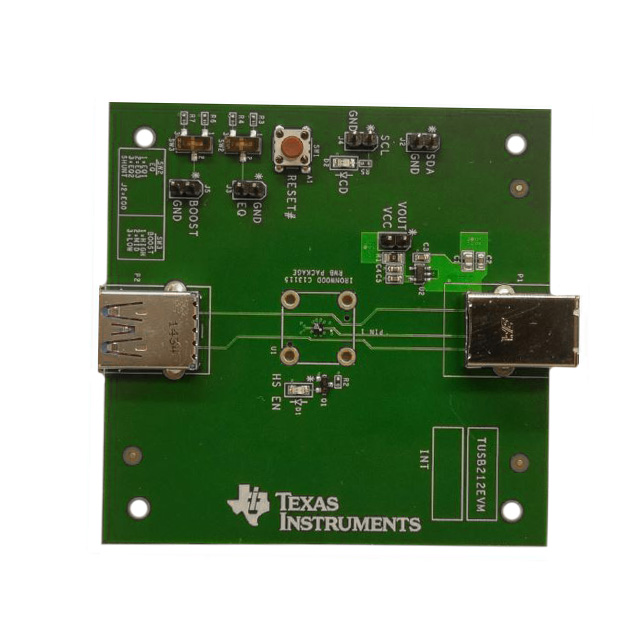

Texas Instruments TUSB212EVM										Interface	Signal Conditioner	TUSB212	Board(s)
Texas Instruments TUSB212IRWBT	Surface Mount	USB	12-XFQFN	3.6 V	3 V	Signal Processing	1.6	12-X2QFN	1.6
Texas Instruments TUSB212QRWBRQ1	Surface Mount	USB	12-XFQFN	3.6 V	3 V	Signal Processing	1.6	12-X2QFN	1.6					AEC-Q100	Automotive
Texas Instruments TUSB212RWBT	Surface Mount	USB	12-XFQFN	3.6 V	3 V	Signal Processing	1.6	12-X2QFN	1.6

Catalog

Automotive USB 2.0 high speed signal conditioner with DC boost with flow thru packaging

Key Features

• Qualified for Automotive Applications:Device Temperature Grade 2: –40°C to 105°C Ambient Operating TemperatureDevice HBM Classification Level H1CDevice CDM Classification Level C3Compatible with USB 2.0, OTG 2.0 and BC 1.2Pin strap or I2C configurableSupport for LS, FS, HS signalingUltra-low USB Disconnect and Shutdown Power ConsumptionSelectable Signal Gain Via Daisy Chain Device for High Loss ApplicationsD1P/M and D2P/M Interchangeable and Host/Device AgnosticSupports up to 5m pre-channel or 2m post-channel Cable LengthFour Selectable AC Boost Settings Via External Pulldown ResistorDC Boost Along With AC Boost for Best Signal IntegrityQualified for Automotive Applications:Device Temperature Grade 2: –40°C to 105°C Ambient Operating TemperatureDevice HBM Classification Level H1CDevice CDM Classification Level C3Compatible with USB 2.0, OTG 2.0 and BC 1.2Pin strap or I2C configurableSupport for LS, FS, HS signalingUltra-low USB Disconnect and Shutdown Power ConsumptionSelectable Signal Gain Via Daisy Chain Device for High Loss ApplicationsD1P/M and D2P/M Interchangeable and Host/Device AgnosticSupports up to 5m pre-channel or 2m post-channel Cable LengthFour Selectable AC Boost Settings Via External Pulldown ResistorDC Boost Along With AC Boost for Best Signal Integrity

Description

The TUSB212-Q1 is a USB High-Speed (HS) signal conditioner, designed to compensate for ISI signal loss in a transmission channel. TUSB212-Q1 has a patent-pending design which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB212-Q1 while HS signals are compensated. Programmable signal AC boost and DC boost permits fine tuning device performance to optimize High Speed signals at the connector. This helps to pass USB High Speed electrical compliance tests. In addition, TUSB212-Q1 is compatible with the USB On-The-Go (OTG) and Battery Charging (BC) protocols. The TUSB212-Q1 is a USB High-Speed (HS) signal conditioner, designed to compensate for ISI signal loss in a transmission channel. TUSB212-Q1 has a patent-pending design which is agnostic to USB Low Speed (LS) and Full Speed (FS) signals. LS and FS signal characteristics are unaffected by the TUSB212-Q1 while HS signals are compensated. Programmable signal AC boost and DC boost permits fine tuning device performance to optimize High Speed signals at the connector. This helps to pass USB High Speed electrical compliance tests. In addition, TUSB212-Q1 is compatible with the USB On-The-Go (OTG) and Battery Charging (BC) protocols.
