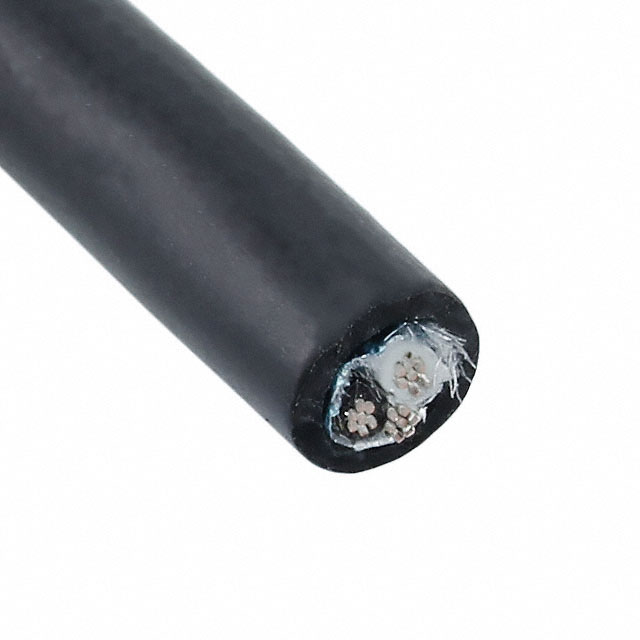

5616B2001 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 2COND 20AWG BLK SHLD 100'
| Part | Shield Material | Shield Coverage | Conductor Insulation | Voltage | Length [x] | Length [x] | Features | Number of Conductors | Operating Temperature [Max] | Operating Temperature [Min] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Conductor Strand [custom] | Conductor Strand [custom] | Cable Type | Jacket (Insulation) Material | Jacket Color | Shield Type | Conductor Material | Wire Gauge | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 600 V | 100 ft | 30.5 m | Drain Wire | 2 | 90 °C | -25 °C | 5.59 mm | 0.22 in | 1.016 mm | 0.04 in | 0.0121 | 7 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Black | Foil | Copper Bare | 20 AWG | ||
ALPHA WIRE | Aluminum | 100 % | Poly-Vinyl Chloride (PVC) | 600 V | Drain Wire | 2 | 90 °C | -25 °C | 5.59 mm | 0.22 in | 1.016 mm | 0.04 in | 0.0121 | 7 | Multi-Conductor | Poly-Vinyl Chloride (PVC) | Black | Foil | Copper Bare | 20 AWG | 304.8 m | 1000 ft |
