854-80 Series

Manufacturer: Preci-Dip

Catalog

CONN HEADER VERT 84POS 1.27MM

Part	Contact Length - Post	Contact Length - Post	Connector Type	Shrouding	Row Spacing - Mating	Row Spacing - Mating	Contact Type	Mounting Type	Fastening Type	Termination	Contact Material	Insulation Material	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions Loaded	Number of Rows [custom]	Voltage Rating	Contact Length - Mating	Contact Length - Mating	Overall Contact Length	Overall Contact Length	Number of Positions [custom]	Insulation Color	Material Flammability Rating	Contact Shape	Contact Finish - Post	Pitch - Mating	Pitch - Mating	Contact Length - Post [x]	Contact Length - Post [x]	Number of Positions	Insulation Height	Insulation Height

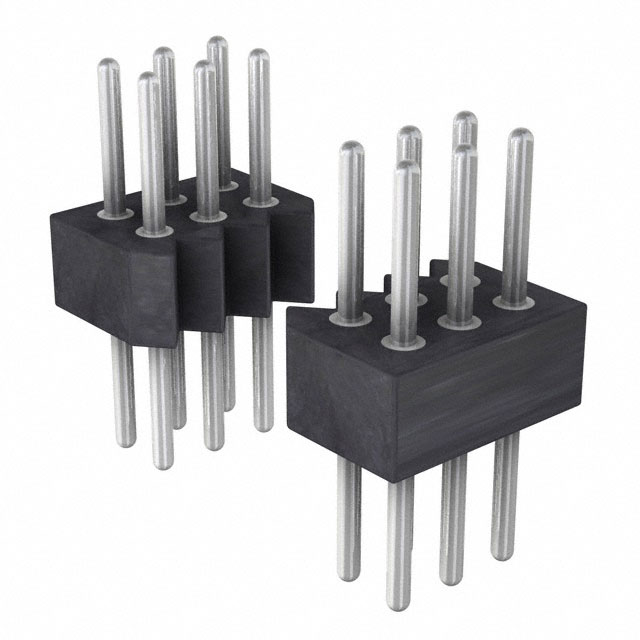

Preci-Dip 854-80-084-10-001101	0.118 in	3 mm	Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in	8.1 mm	0.319 in	84	Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in

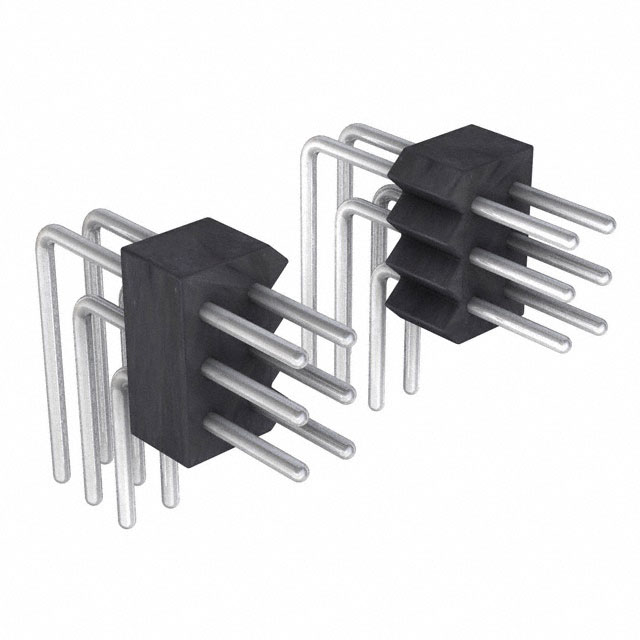

Preci-Dip 854-80-090-20-001101			Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Right Angle Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in				Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in	0.126 "	3.2 mm	90	0.174 in	4.42 mm
Preci-Dip 854-80-078-10-001101	0.118 in	3 mm	Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in	8.1 mm	0.319 in		Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in			78
Preci-Dip 854-80-081-10-001101	0.118 in	3 mm	Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in	8.1 mm	0.319 in		Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in			81
Preci-Dip 854-80-018-10-001101	0.118 in	3 mm	Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in	8.1 mm	0.319 in		Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in			18
Preci-Dip 854-80-048-20-001101			Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Right Angle Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in				Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in	0.126 "	3.2 mm	48	0.174 in	4.42 mm
Preci-Dip 854-80-105-10-001101	0.118 in	3 mm	Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in	8.1 mm	0.319 in		Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in			105
Preci-Dip 854-80-138-20-001101			Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Right Angle Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in			138	Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in	0.126 "	3.2 mm		0.174 in	4.42 mm
Preci-Dip 854-80-129-20-001101			Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Right Angle Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in				Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in	0.126 "	3.2 mm	129	0.174 in	4.42 mm
Preci-Dip 854-80-042-10-001101	0.118 in	3 mm	Header	Unshrouded	0.05 in	1.27 mm	Male Pin	Through Hole	Push-Pull	Solder	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	-55 C	125 °C	All	3	150 VDC	3 mm	0.118 in	8.1 mm	0.319 in		Black	UL94 V-0	Circular	Tin	1.27 mm	0.05 in			42
