9404-1113 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

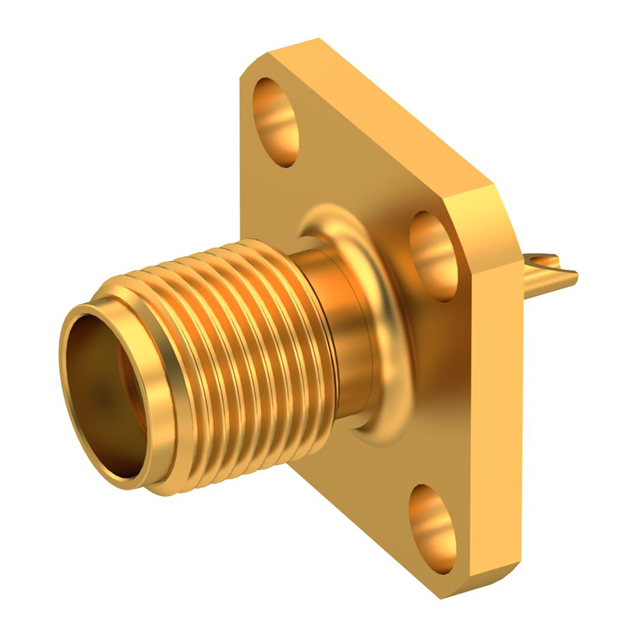

SMA / STRAIGHT JACK FEMALE GOLD
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Center Contact Plating | Dielectric Material | Mating Cycles | Housing Color | Connector Style | Center Contact Material | Fastening Type | Mounting Feature | Mounting Type | Number of Ports | Connector Type | Contact Termination | Shield Termination | Impedance | Frequency - Max [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | Stainless Steel | -65 ░C | 165 °C | Gold | Gold | Polytetrafluoroethylene (PTFE) | 500 | Gold | SMA | Beryllium Copper | Threaded | Flange | Panel Mount | 1 | Female Socket Jack | Solder Cup | Solder | 50 Ohms | 18 GHz |
