DC12.2102 Series

AC Power Entry Modules DC12 PWR ENTRY MODUL 2A

Manufacturer: SCHURTER Inc.

Catalog

AC Power Entry Modules DC12 PWR ENTRY MODUL 2A

Catalog

AC Power Entry Modules DC12 PWR ENTRY MODUL 2A

Part	Approval Agency	Voltage Rating - Appliance Inlet	Switch Features	Termination	Termination	Termination	Material Flammability Rating	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Features	Accomodates a Fuse	Connector Style	Connector Type	Current Rating - Appliance Inlet	Mounting Type	Filter Type	Ingress Protection	Current Rating - Filter	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]
SCHURTER Inc. DC12.2102.201	CQC cULus ENEC	250 VAC	Switch On-Off	6.3 mm	Quick Connect	0.25 "	UL94 V-0	34.4 mm	30.4 mm	Shielded V-Lock Notch		IEC 320-C14	Receptacle Male Blades - Module	10 A	Flange Panel Mount	Filtered (EMI RFI) - Commercial	IP40	2 A

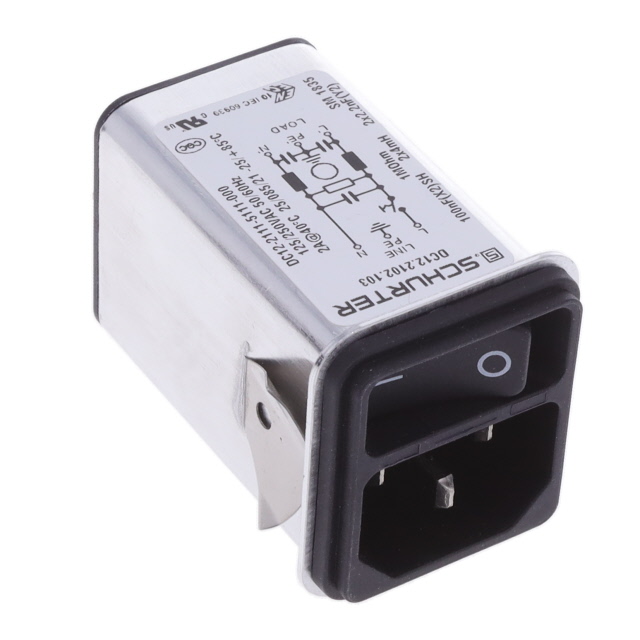

SCHURTER Inc. DC12.2102.103	CQC cULus ENEC	250 VAC	Switch On-Off	6.3 mm	Quick Connect	0.25 "	UL94 V-0	33.1 mm	29.4 mm	Shielded V-Lock Notch		IEC 320-C14	Receptacle Male Blades - Module	10 A	Panel Mount Snap-In	Filtered (EMI RFI) - Commercial	IP40	2 A	0.118 in	3 mm	1 mm	0.039 in
SCHURTER Inc. DC12.2102.001	CQC cULus ENEC	250 VAC	Switch On-Off	6.3 mm	Quick Connect	0.25 "	UL94 V-0	33.1 mm	29.1 mm	Shielded V-Lock Notch		IEC 320-C14	Receptacle Male Blades - Module	10 A	Flange Panel Mount	Filtered (EMI RFI) - Commercial	IP40	2 A

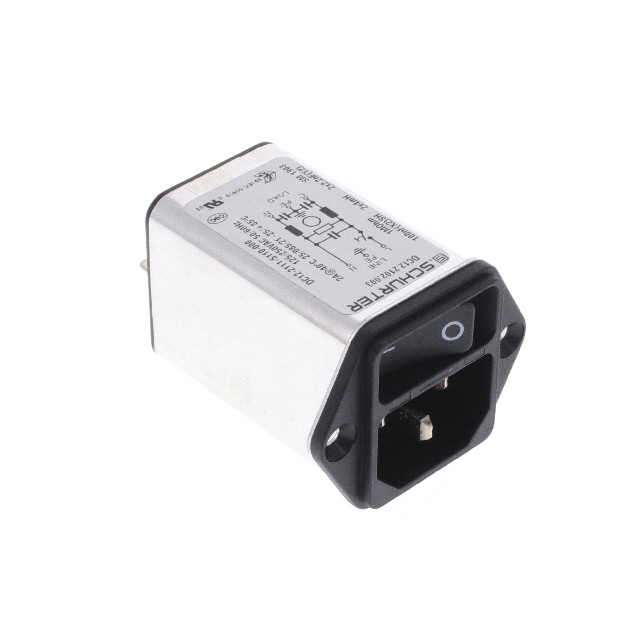

SCHURTER Inc. DC12.2102.003	CQC cULus ENEC	250 VAC	Switch On-Off	6.3 mm	Quick Connect	0.25 "	UL94 V-0	33.1 mm	29.1 mm	Shielded V-Lock Notch		IEC 320-C14	Receptacle Male Blades - Module	10 A	Flange Panel Mount	Filtered (EMI RFI) - Commercial	IP40	2 A

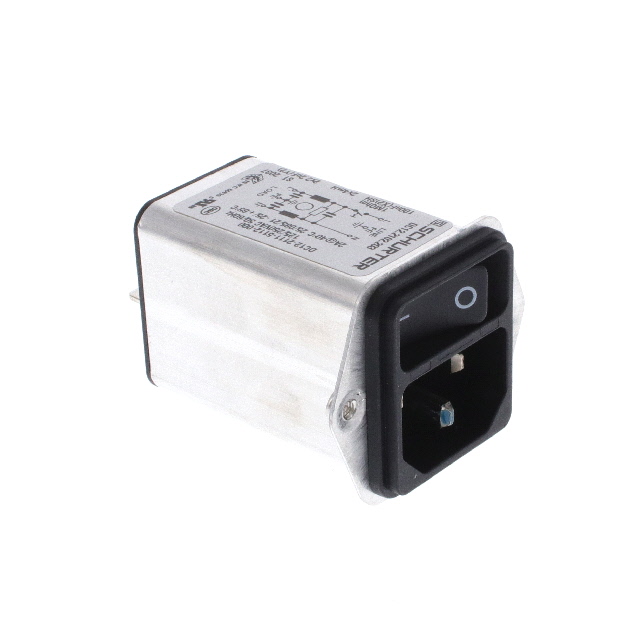

SCHURTER Inc. DC12.2102.203	CQC cULus ENEC	250 VAC	Switch On-Off	6.3 mm	Quick Connect	0.25 "	UL94 V-0	34.4 mm	30.4 mm	Shielded V-Lock Notch		IEC 320-C14	Receptacle Male Blades - Module	10 A	Flange Panel Mount	Filtered (EMI RFI) - Commercial	IP40	2 A
