TPS5401 Series

Catalog

3.5V TO 42V INPUT, 0.5 A STEP DOWN CONVERTER

Part	Frequency - Switching [Max]	Frequency - Switching [Min]	Voltage - Input (Min) [Min]	Current - Output	Package / Case	Package / Case	Voltage - Output (Max) [Max]	Output Type	Number of Outputs	Voltage - Output (Min/Fixed)	Voltage - Input (Max) [Max]	Mounting Type	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Output Configuration	Topology	Function	Supplied Contents	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Outputs and Type	Outputs and Type	Board Type	Utilized IC / Part	Frequency - Switching	Voltage - Output	Main Purpose
Texas Instruments TPS5401DGQR	2.5 MHz	100 kHz	3.5 V	500 mA	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	39 V	Adjustable	1	0.8 V	42 V	Surface Mount	10-HVSSOP	150 °C	-40 °C	Positive	Buck	Step-Down

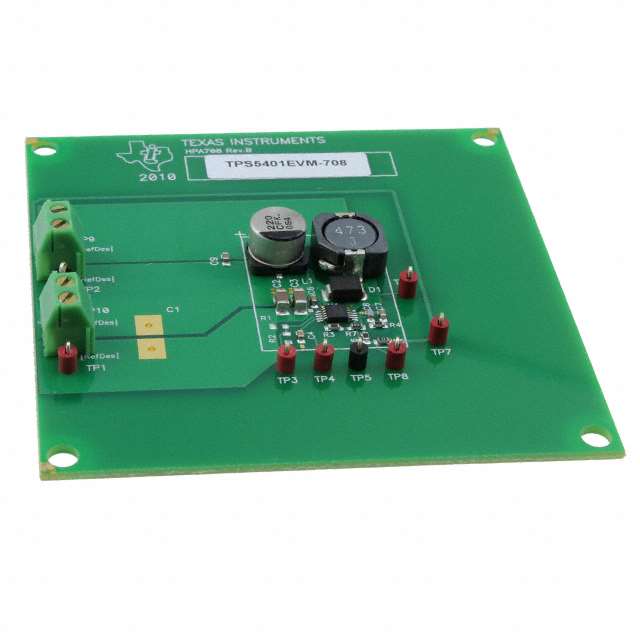

Texas Instruments TPS5401EVM-708				500 mA															Board(s)	Buck	7.5 V	35 V	Non-Isolated	1	Fully Populated	TPS5401	700 kHz	5 V	DC/DC Step Down
Texas Instruments TPS5401DGQT	2.5 MHz	100 kHz	3.5 V	500 mA	10-MSOP 10-PowerTFSOP	0.118 in 3 mm	39 V	Adjustable	1	0.8 V	42 V	Surface Mount	10-HVSSOP	150 °C	-40 °C	Positive	Buck	Step-Down
