SW-R2 Series

Manufacturer: Adam Tech

Catalog

SWITCH ROCKER SPDT 5A 125V

Part	Electrical Life	Actuator Type	Actuator Marking	Current Rating (Amps)	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Rating - DC	Voltage Rating - AC	Color - Actuator/Cap	Mounting Type	Termination Style	Switch Function	Illumination Voltage (Nominal)	Illumination Type, Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]

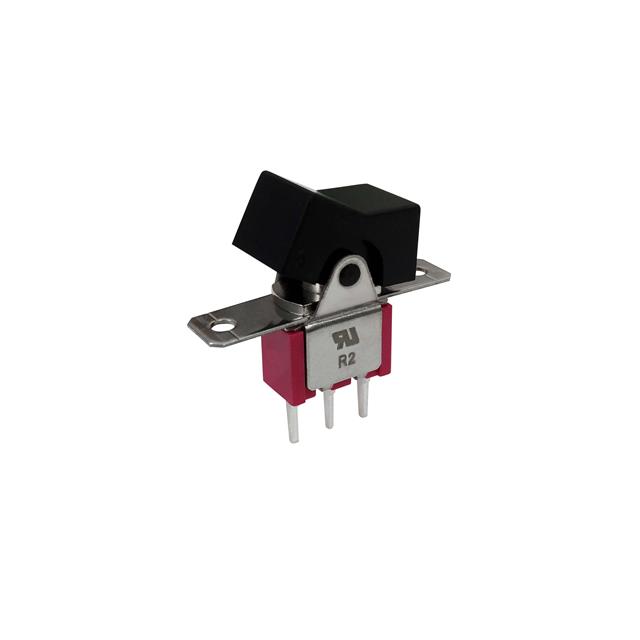

Adam Tech SW-R2-2B-B-5-10	50000 Cycles	Concave	No Marking	5 A	SPDT	85 °C	-30 ░C	28 V	125 V	Black	Flange Panel Mount	PC Pin	On-On
Adam Tech SW-R2-1A-F-LY13-2	10000 Cycles	Concave (Curved) - Illuminated	O -	10 A	SPST	85 °C	-25 °C		125 V	Amber	Panel Mount Snap-In	Quick Connect	On-Off	12 VDC	Amber LED	19.2 mm	13 mm
Adam Tech SW-R2-1A-F-Y1-5W	10000 Cycles	Round	O -	10 A	SPST	85 °C	-25 °C		125 V	Amber	Panel Mount Snap-In	Quick Connect	On-Off

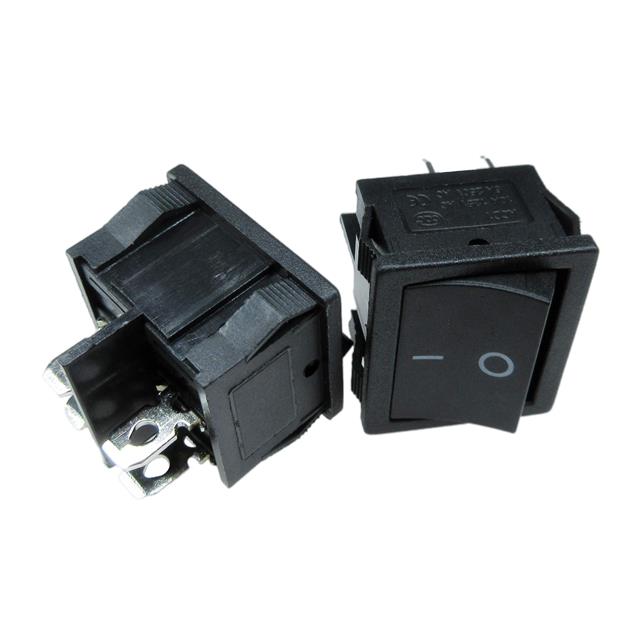

Adam Tech SW-R2-3A-F-1-6	10000 Cycles	Concave (Curved)	O -	10 A	DPST	85 °C	-25 °C		125 V	Black	Panel Mount Snap-In	Quick Connect	On-Off			22.2 mm	20 mm
Adam Tech SW-R2-2E-F-W6-8	10000 Cycles	Round	I O II	10 A	SPDT	85 °C	-25 °C		125 V	White	Panel Mount Snap-In	Quick Connect	On-Off-On
Adam Tech SW-R2-1A-F-LW13-5	10000 Cycles	Round - Illuminated	O -	10 A	SPST	85 °C	-25 °C		125 V	White	Panel Mount Snap-In	Quick Connect	On-Off	12 VDC	LED White
Adam Tech SW-R2-4E-S-R6-1	10000 Cycles	Concave (Curved)	I O II	10 A	DPDT	85 °C	-25 °C		125 V	Red	Panel Mount Snap-In	Solder Quick Connect - 0.110" (2.8mm)	On-Off-On
Adam Tech SW-R2-1A-F-G2-5W	10000 Cycles	Round	ON OFF	10 A	SPST	85 °C	-25 °C		125 V	Green	Panel Mount Snap-In	Quick Connect	On-Off
Adam Tech SW-R2-1A-F-2-8	10000 Cycles	Round	ON OFF	10 A	SPST	85 °C	-25 °C		125 V	Black	Panel Mount Snap-In	Quick Connect	On-Off
Adam Tech SW-R2-1A-F-LG23-2	10000 Cycles	Concave (Curved) - Illuminated	ON OFF	10 A	SPST	85 °C	-25 °C		125 V	Green	Panel Mount Snap-In	Quick Connect	On-Off	12 VDC	Green LED	19.2 mm	13 mm
