G3R40 Series

Catalog

SIC MOSFET N-CH 75A TO263-7

Part	Operating Temperature [Max]	Operating Temperature [Min]	Drive Voltage (Max Rds On, Min Rds On)	Vgs (Max)	Input Capacitance (Ciss) (Max) @ Vds	Supplier Device Package	Drain to Source Voltage (Vdss)	Package / Case	Rds On (Max) @ Id, Vgs	FET Type	Mounting Type	Current - Continuous Drain (Id) @ 25°C	Power Dissipation (Max)	Gate Charge (Qg) (Max) @ Vgs [Max]	Vgs(th) (Max) @ Id
GeneSiC Semiconductor G3R40MT12J	175 °C	-55 °C	15 V	15 V	2929 pF	TO-263-7	1.2 kV	D2PAK (7 Leads + Tab) TO-263-8 TO-263CA	48 mOhm	N-Channel	Surface Mount	75 A	374 W	106 nC	2.7 V
GeneSiC Semiconductor G3R40MT12K	175 °C	-55 °C	15 V	15 V	2929 pF	TO-247-4	1.2 kV	TO-247-4	48 mOhm	N-Channel	Through Hole	71 A	333 W	106 nC	2.69 V

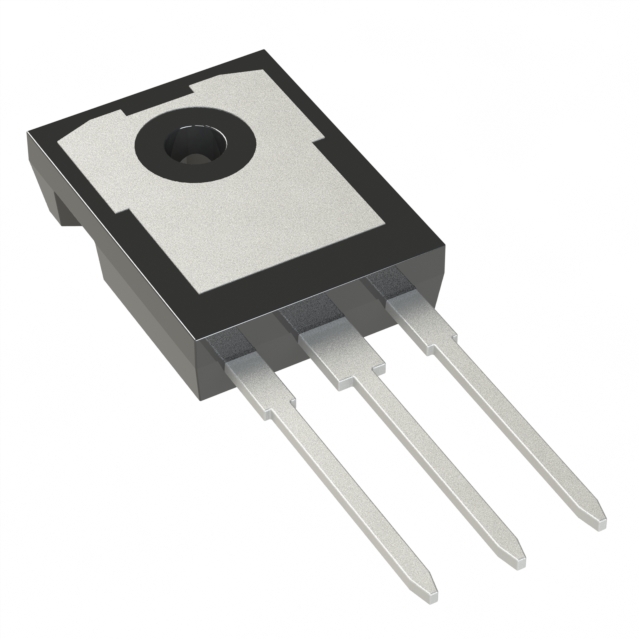

GeneSiC Semiconductor G3R40MT12D	175 °C	-55 °C	15 V	15 V	2929 pF	TO-247-3	1.2 kV	TO-247-3	48 mOhm	N-Channel	Through Hole	71 A	333 W	106 nC	2.69 V
