000957 Series
Manufacturer: Molex
Beta
⌘K

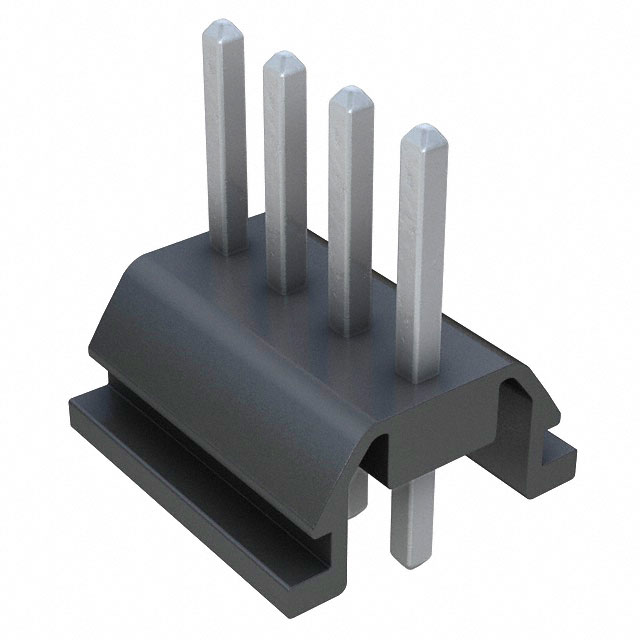

CONN HEADER VERT 4POS 3.96MM
| Part | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Fastening Type | Contact Length - Post | Contact Length - Post | Insulation Material | Pitch - Mating | Pitch - Mating | Number of Positions | Insulation Color | Contact Length - Mating | Contact Length - Mating | Number of Positions Loaded | Contact Finish - Post | Contact Shape | Overall Contact Length | Overall Contact Length | Style | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Number of Rows | Termination | Connector Type | Contact Type | Material Flammability Rating | Insulation Height | Insulation Height | Contact Material | Shrouding |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Automotive General Purpose Industrial Medical Telecommunications | 1.52 µm | 60 µin | Push-Pull | 0.635 in | 16.13 mm | Nylon 6/6 Polyamide (PA66) | 3.96 mm | 0.156 in | 4 | Natural | 0.63 in | 16 mm | All | Tin | Square | 35.05 mm | 1.38 in | Board to Cable/Wire | 60 µin | 1.52 Ám | Panel Mount Snap-In Through Hole | 1 | Solder | Header | Male Pin | UL94 V-2 | 6.35 mm | 0.25 in | Brass | Unshrouded |
 Molex | Automotive General Purpose Industrial Medical Telecommunications | 1.52 µm | 60 µin | Push-Pull | 0.635 in | 16.13 mm | Nylon 6/6 Polyamide (PA66) | 3.96 mm | 0.156 in | 10 | Natural | 0.63 in | 16 mm | All | Tin | Square | 35.05 mm | 1.38 in | Board to Cable/Wire | 60 µin | 1.52 Ám | Panel Mount Snap-In Through Hole | 1 | Solder | Header | Male Pin | UL94 V-2 | 6.35 mm | 0.25 in | Brass | Unshrouded |
