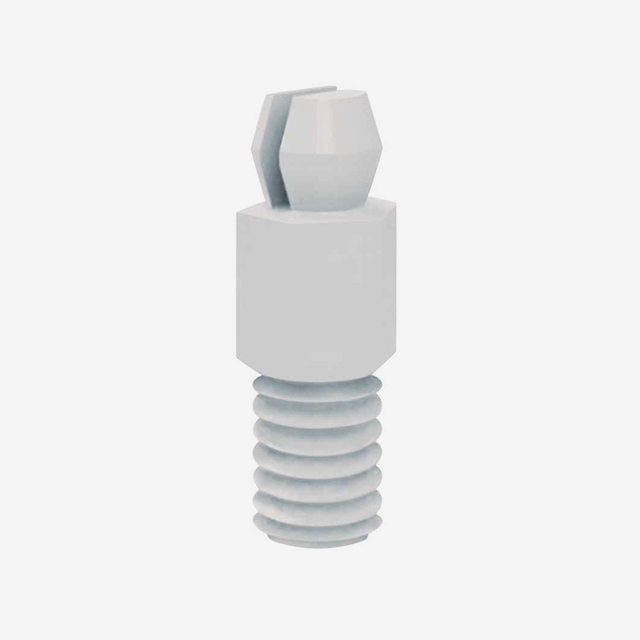

HMSP-TM Series

Catalog

BRD SPT SNAP FIT THR STUD 7/8"

Part	Holding Type	Support Panel Thickness	Support Panel Thickness	Support Panel Thickness	Mounting Type	Material	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Between Board Height	Features	Support Hole Diameter [diameter]	Support Hole Diameter [diameter]	Length - Overall	Length - Overall
Essentra Components HMSP-TM-14-01	Snap Fit	1.57 mm	0.062 in	0.0625 in	Threaded Stud	Nylon	1.251 in	31.77 mm	22.23 mm	0.875 in	0.875 in	6-32 Thread	0.152 in	3.86 mm
Essentra Components HMSP-TM-6-01	Snap Fit	1.57 mm	0.062 in	0.0625 in	Threaded Stud	Nylon	0.751 "	19.07 mm	9.53 mm	0.375 "	0.375 in	6-32 Thread	0.152 in	3.86 mm
Essentra Components HMSP-TM-4-01	Snap Fit	1.57 mm	0.062 in	0.0625 in	Threaded Stud	Nylon	0.629 in	15.97 mm	0.25 in		6.35 mm	6-32 Thread	0.152 in	3.86 mm
Essentra Components HMSP-TM-3-01	Snap Fit	1.57 mm	0.062 in	0.0625 in	Threaded Stud	Nylon	0.566 in	14.37 mm	0.1875 in		0.188 in	6-32 Thread	0.152 in	3.86 mm
Essentra Components HMSP-TM-10-01	Snap Fit	1.57 mm	0.062 in	0.0625 in	Threaded Stud	Nylon			15.88 mm	5 8	0.625 in	6-32 Thread	0.152 in	3.86 mm	25.47 mm	1.003 in
