EP53 Series

Manufacturer: Altera

Catalog

BOARD EVAL EP53A8L Q100 1A DC-DC

Part	Outputs and Type	Frequency - Switching	Main Purpose	Contents	Regulator Topology	Voltage - Input [Min]	Voltage - Input [Max]	Current - Output	Utilized IC / Part	Supplied Contents	Outputs and Type	Board Type	Voltage - Output	Voltage - Output
Altera EVB-EP53A8LQA	1 Non-Isolated Output	5 MHz	DC/DC Step Down	Board(s)	Buck	2.4 V	5.5 V	1 A	EP53A8LQA
Altera EVB-EP53A8LQA	Non-Isolated	5 MHz	DC/DC Step Down		Buck	2.4 V	5.5 V	1 A	EP53A8LQA	Board(s)	1	Fully Populated

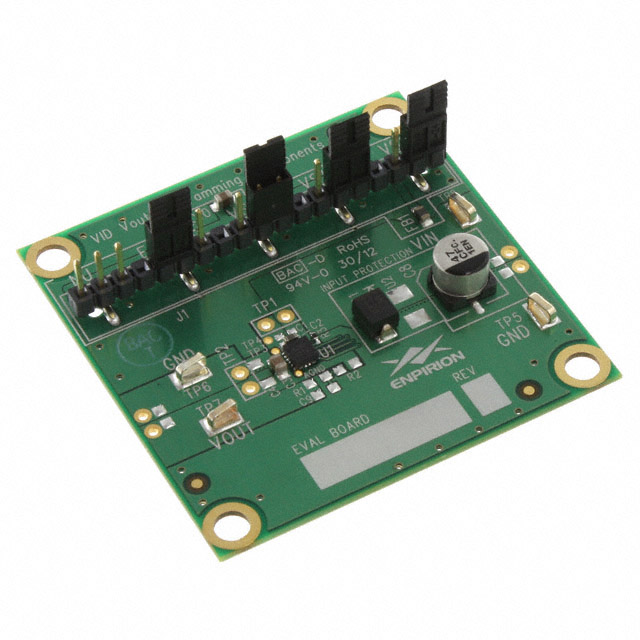

Altera EVB-EP53A8LQI	Non-Isolated	5 MHz	DC/DC Step Down		Buck	2.4 V	5.5 V	1 A	EP53A8LQI	Board(s)	1	Fully Populated	0.8 V 1.05 V 1.1 V 1.15 V 1.2 V	1.45 or 1.5V

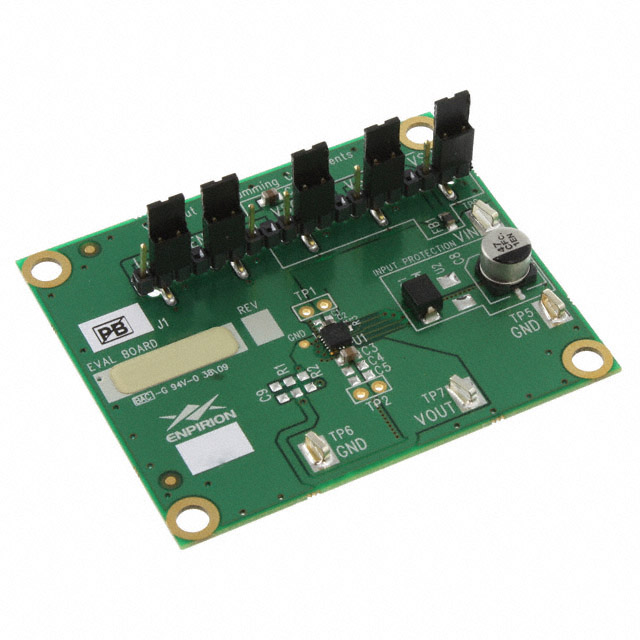

Altera EVB-EP53A7LQI	1 Non-Isolated Output	5 MHz	DC/DC Step Down	Board(s)	Buck	2.4 V	5.5 V	1 A	EP53A7LQI				0.8 V 1.05 V 1.1 V 1.15 V 1.2 V	1.45 or 1.5V

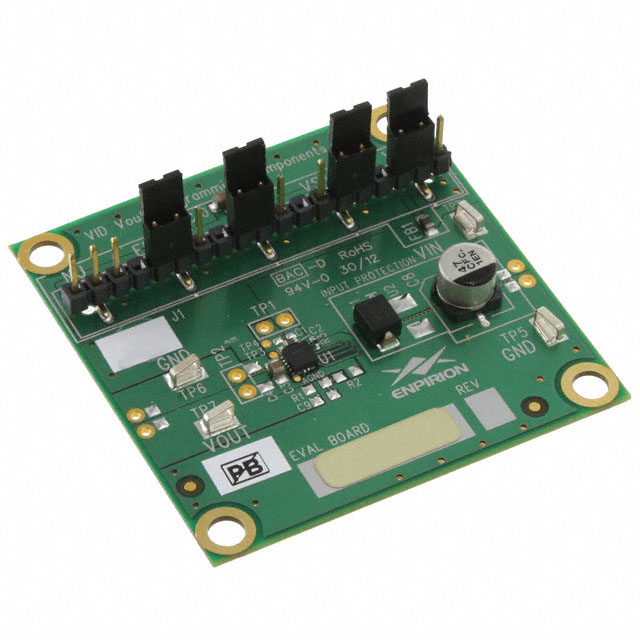

Altera EVB-EP53A8HQI	1 Non-Isolated Output	5 MHz	DC/DC Step Down	Board(s)	Buck	2.4 V	5.5 V	1 A	EP53A8HQI				1.8 V 2.1 V 2.2 V 2.5 V 2.6 V 2.9 V 3 V 3.3 V
Altera EVB-EP53A8HQI	Non-Isolated	5 MHz	DC/DC Step Down		Buck	2.4 V	5.5 V	1 A	EP53A8HQI	Board(s)	1	Fully Populated	1.8 V 2.1 V 2.2 V 2.5 V 2.6 V 2.9 V 3 V 3.3 V
Altera EVB-EP53A8LQI	1 Non-Isolated Output	5 MHz	DC/DC Step Down	Board(s)	Buck	2.4 V	5.5 V	1 A	EP53A8LQI				0.8 V 1.05 V 1.1 V 1.15 V 1.2 V	1.45 or 1.5V
Altera EVB-EP53A7LQI	Non-Isolated	5 MHz	DC/DC Step Down		Buck	2.4 V	5.5 V	1 A	EP53A7LQI	Board(s)	1	Fully Populated	0.8 V 1.05 V 1.1 V 1.15 V 1.2 V	1.45 or 1.5V
