MC705 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC MCU 8BIT 15KB OTP 56PSDIP

Part	Connectivity	Mounting Type	RAM Size	Data Converters	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Core Processor	Package / Case	Package / Case	Package / Case	EEPROM Size	Speed	Program Memory Size	Number of I/O	Operating Temperature [Max]	Operating Temperature [Min]	Core Size	Peripherals	Program Memory Type	Oscillator Type	Package / Case [y]	Package / Case [y]	Supplier Device Package	RAM Size	Data Converters [custom]	Data Converters [custom]	Package / Case	Data Converters [custom]	Data Converters [custom]	Package / Case [x]
Freescale Semiconductor - NXP MC705B16NBE	SCI	Through Hole	352	A/D 8x8b	5.5 V	4.5 V	HC05	0.6 in	56-SDIP	15.24 mm	256 x 8	2.1 MHz	15 KB	32	70 °C	0 °C	8-Bit	POR WDT	OTP	Internal
Freescale Semiconductor - NXP MC705J1ACDWE		Surface Mount			5.5 V	3 V	HC05		20-SOIC			4 MHz	1.2 KB	14	85 °C	-40 °C	8-Bit	POR WDT	OTP	Internal	0.295 in	7.5 mm	20-SOIC	64 x 8
Freescale Semiconductor - NXP MC705P6ACPE	SIO	Through Hole			5.5 V	3 V	HC05	15.24 mm	28-DIP			2.1 MHz	4.5 KB	21 I/O	85 °C	-40 °C	8-Bit	POR WDT	OTP	Internal			28-PDIP	176 x 8	8	4	0.6 in
Freescale Semiconductor - NXP MC705C8ACFBE	SCI SPI	Surface Mount	304		5.5 V	3 V	HC05		44-QFP			2.1 MHz		24	85 °C	-40 °C	8-Bit	POR WDT	OTP	Internal
Freescale Semiconductor - NXP MC705L16CFUE	SPI	Surface Mount	512		5.5 V	3 V	HC05		80-QFP			2.1 MHz	16 KB	16	85 °C	-40 °C	8-Bit	LCD POR WDT	OTP	Internal			80-QFP (14x14)

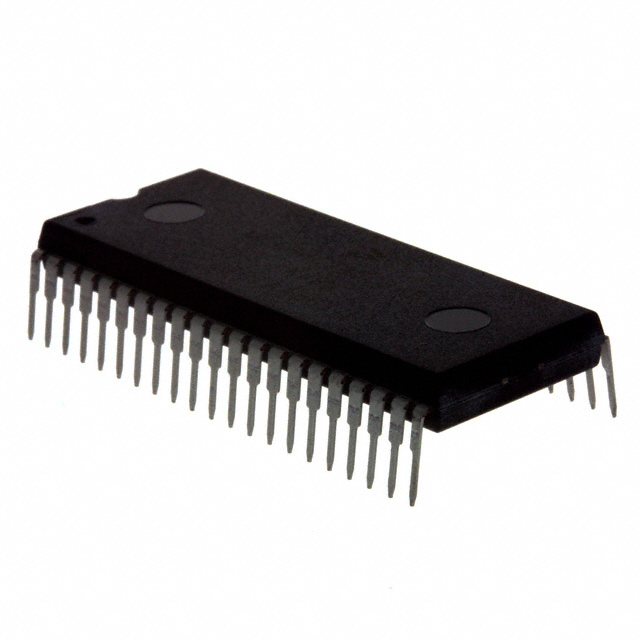

Freescale Semiconductor - NXP MC705C8ACBE	SCI SPI	Through Hole	304		5.5 V	3 V	HC05	0.6 in	42-SDIP	15.24 mm		2.1 MHz		24	85 °C	-40 °C	8-Bit	POR WDT	OTP	Internal			42-PDIP
Freescale Semiconductor - NXP MC705JP7CPE	SIO	Through Hole			5.5 V	2.7 V	HC05	15.24 mm	28-DIP			2.1 MHz	6 KB	22	85 °C	-40 °C	8-Bit	POR Temp Sensor WDT	OTP	Internal			28-PDIP	224 x 8			0.6 in	12 b	4
Freescale Semiconductor - NXP MC705P6ACDWER	SIO	Surface Mount			5.5 V	3 V	HC05		28-SOIC			2.1 MHz	4.5 KB	21 I/O	85 °C	-40 °C	8-Bit	POR WDT	OTP	Internal	7.5 mm		28-SOIC	176 x 8	8	4				0.295 in
Freescale Semiconductor - NXP MC705P6AMDWER	SIO	Surface Mount			5.5 V	3 V	HC05		28-SOIC			2.1 MHz	4.5 KB	21 I/O	125 °C	-40 °C	8-Bit	POR WDT	OTP	Internal	7.5 mm		28-SOIC	176 x 8	8	4				0.295 in
Freescale Semiconductor - NXP MC705P6ACDWE	SIO	Surface Mount			5.5 V	3 V	HC05		28-SOIC			2.1 MHz	4.5 KB	21 I/O	85 °C	-40 °C	8-Bit	POR WDT	OTP	Internal	7.5 mm		28-SOIC	176 x 8	8	4				0.295 in
