HDSM-441 Series

Catalog

DISPLAY 7SEG 0.39" DBL WHT 10SMD

Part	Current - Test	Power Dissipation (Max) [Max]	Package / Case	Common Pin	Voltage - Forward (Vf) (Typ)	Number of Characters	Millicandela Rating	Display Type	Digit/Alpha Size	Digit/Alpha Size	Color	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Wavelength - Peak

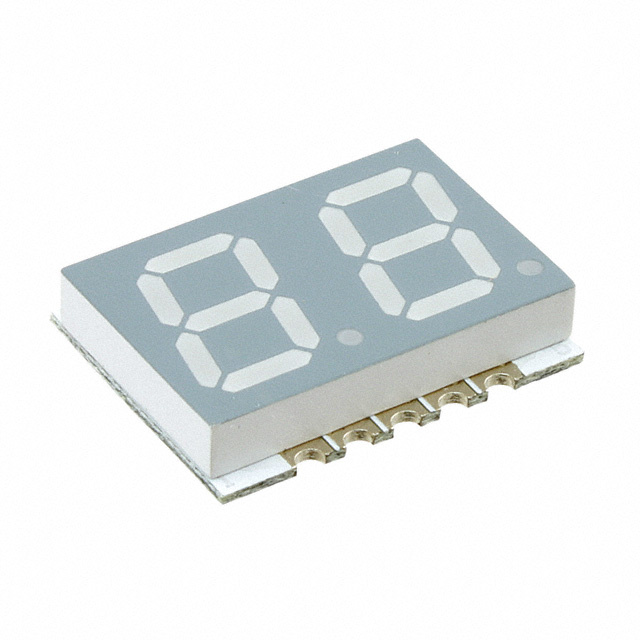

Broadcom Limited HDSM-441W	5 mA	39 mW	10-SMD No Lead	Common Anode	2.95 V	2	40 mcd	7-Segment	10 mm	0.39 in	White	13 mm	0.772 in	3.75 mm	19.6 mm	0.512 "	0.148 in

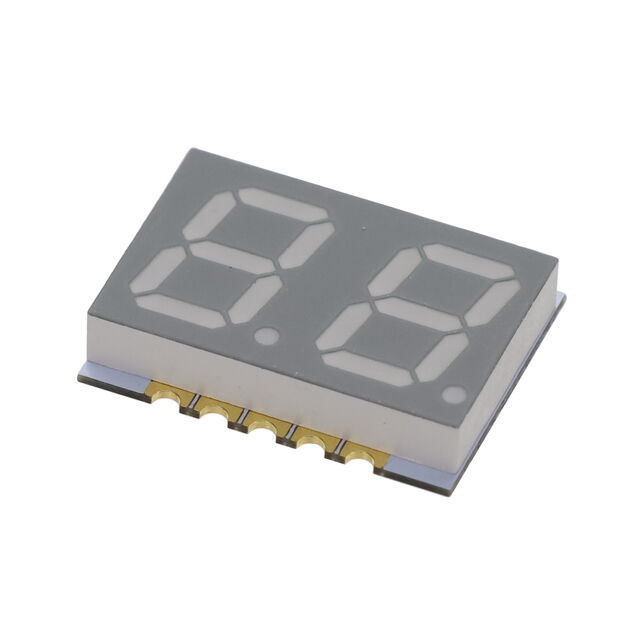

Broadcom Limited HDSM-441C	20 mA	65 mW	10-SMD No Lead	Common Anode	2 V	2	14.3 mcd	7-Segment	10 mm	0.39 in	Red	13 mm	0.772 in	3.75 mm	19.6 mm	0.512 "	0.148 in	644 nm
Broadcom Limited HDSM-441F	20 mA	65 mW	10-SMD No Lead	Common Anode	2.1 V	2	15 mcd	7-Segment	10 mm	0.39 in	Yellow	13 mm	0.772 in	3.75 mm	19.6 mm	0.512 "	0.148 in	591 nm
