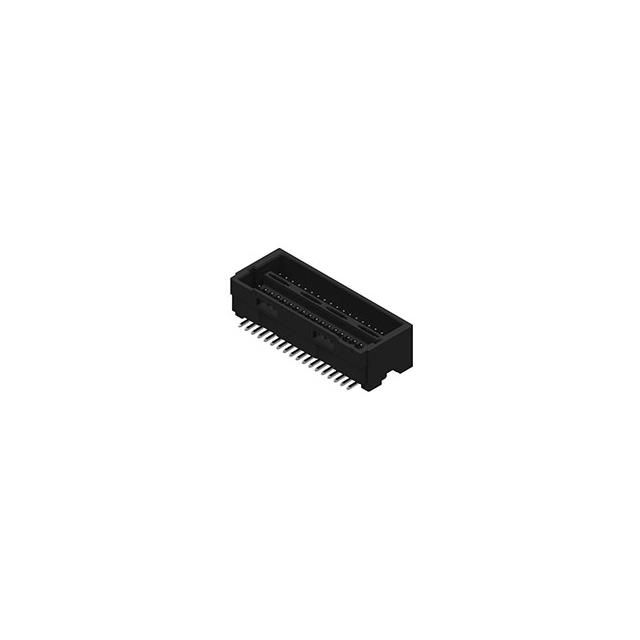

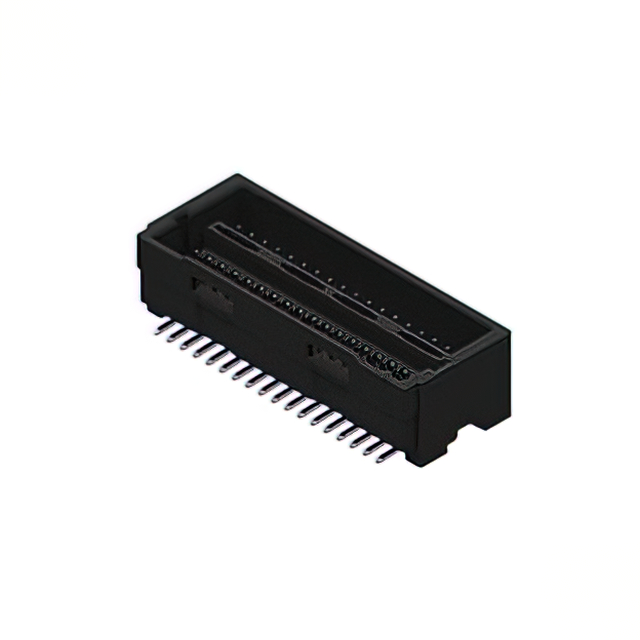

Spot-On Wire-to-Board Header with Nail, 1.50mm Pitch, Dual Row, Vertical, 24 Circuits, with Potting Capability, Matte Tin (Sn) Plating, Natural
Spot-On Wire-to-Board Header with Nail, 1.50mm Pitch, Dual Row, Vertical, 24 Circuits, with Potting Capability, Matte Tin (Sn) Plating, Natural
Spot-On Wire-to-Board Header with Nail, 1.50mm Pitch, Dual Row, Vertical, 24 Circuits, with Potting Capability, Matte Tin (Sn) Plating, Natural
| Part | Current Rating (Amps) | Insulation Height | Insulation Height | Fastening Type | Insulation Color | Material Flammability Rating | Applications | Style | Mounting Type | Contact Finish - Post | Number of Rows | Contact Material | Features | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Operating Temperature [Min] | Operating Temperature [Max] | Shrouding | Insulation Material | Connector Type | Number of Positions Loaded | Contact Shape | Contact Type | Number of Positions | Voltage Rating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Black | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 18 | 100 V | Solder | 1 µm | 39.4 µin |
 Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Natural | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 24 | 100 V | Solder | 1 µm | 39.4 µin |
Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Natural | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 34 | 100 V | Solder | 1 µm | 39.4 µin |
Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Natural | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 36 | 100 V | Solder | 1 µm | 39.4 µin |
Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Natural | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 38 | 100 V | Solder | 1 µm | 39.4 µin |
Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Black | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 40 | 100 V | Solder | 1 µm | 39.4 µin |
 Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Natural | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 20 | 100 V | Solder | 1 µm | 39.4 µin |
Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Natural | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 14 | 100 V | Solder | 1 µm | 39.4 µin |
 Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Black | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 10 | 100 V | Solder | 1 µm | 39.4 µin |
 Molex | Varies by Wire Gauge | 9 mm | 0.354 in | Latch Holder | Natural | UL94 V-0 | General Purpose | Board to Cable/Wire | Surface Mount | Tin | 2 | Brass | Pick and Place Solder Retention | 1 çm | 39.4 çin | -40 °C | 105 ░C | Shrouded - 4 Wall | Glass Filled Nylon Polyamide (PA) | Header | All | Square | Male Pin | 12 | 100 V | Solder | 1 µm | 39.4 µin |
