EN2P4F Series
Manufacturer: Switchcraft Inc.
Beta
⌘K

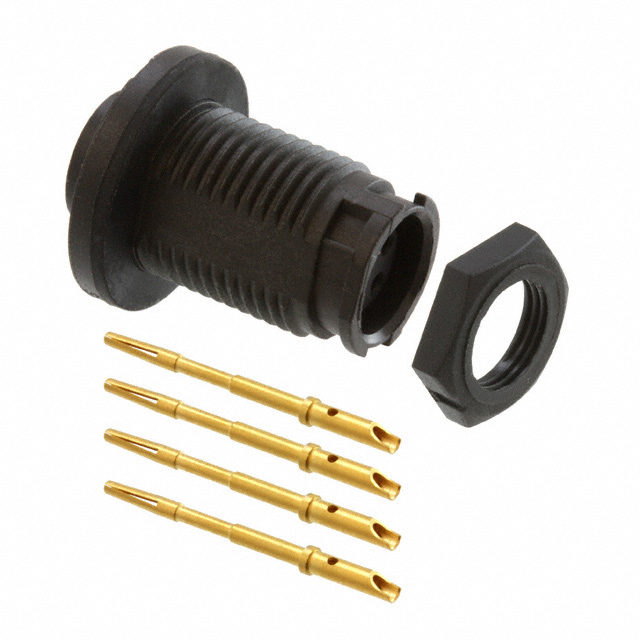

CONN CIRCULAR SKT 4 POS SOLDER ST PANEL MOUNT 4 TERMINAL 1 PORT BULK
| Part | Number of Positions | Orientation | Mounting Type | Voltage Rating | Primary Material | Ingress Protection | Contact Finish - Mating | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Feature | Shielding | Insert Material | Fastening Type | Connector Type | Termination | Color | Contact Material | Material Flammability Rating | Applications | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Switchcraft Inc. | 4 | Keyed | Panel Mount Through Hole | 125 VAC | Plastic | IP66 IP67 IP68 | Gold | 85 °C | -40 °C | Bulkhead - Front Side Nut | Unshielded | Elastomer | Bayonet Lock | Receptacle Female Sockets | Solder | Black | Copper Alloy | UL94 V-0 | Communication Systems Industrial Marine Medical | 1.5 A |
 Switchcraft Inc. | 4 | Keyed | 125 VAC | Plastic | IP66 IP67 IP68 | Gold | 85 °C | -40 °C | Bulkhead - Front Side Nut | Unshielded | Elastomer | Bayonet Lock | Receptacle Female Sockets | Crimp Solder Cup | Black | Copper Alloy | UL94 V-0 | Communication Systems Industrial Marine Medical | 1.5 A |
