RD2CB Series

Catalog

RELAY GEN PURPOSE DPDT 10A 24V

Part	Contact Rating (Current)	Must Operate Voltage	Coil Type	Must Release Voltage	Switching Voltage	Mounting Type	Termination Style	Coil Voltage	Contact Material	Operate Time	Contact Form	Operating Temperature [Max]	Operating Temperature [Min]	Features	Relay Type	Coil Resistance	Coil Current
R-K Electronics, Inc. RD2CB-24VAC-L	10 A	18 VAC	Non Latching	7.2 VAC	30 VDC 240 VAC	Socketable	Plug In	24 VAC	Silver Cadmium Oxide (AgCdO)	20 ms	DPDT (2 Form C)	40 °C	-10 °C	Lighted Indicator	General Purpose

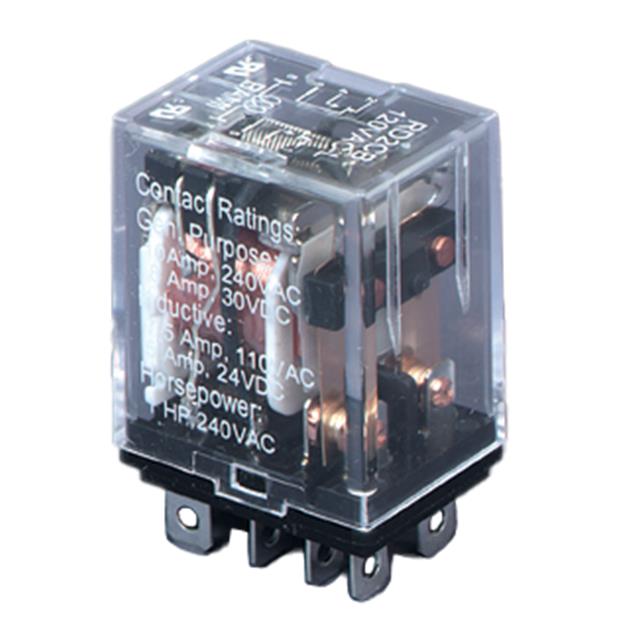

R-K Electronics, Inc. RD2CB-120VAC	10 A	90 VAC	Non Latching	36 VAC	30 VDC 240 VAC	Socketable	Plug In	120 VAC	Silver Cadmium Oxide (AgCdO)	20 ms	DPDT (2 Form C)	40 °C	-10 °C	Lighted Indicator	General Purpose
R-K Electronics, Inc. RD2CB-24VAC	10 A	18 VAC	Non Latching	7.2 VAC	30 VDC 240 VAC	Socketable	Plug In	24 VAC	Silver Cadmium Oxide (AgCdO)	20 ms	DPDT (2 Form C)	40 °C	-10 °C	Lighted Indicator	General Purpose
R-K Electronics, Inc. RD2CB-24OVAC	10 A	180 VAC	Non Latching	72 VAC/DC	30 VDC 240 VAC	Socketable	Plug In	240 VAC/DC	Silver Cadmium Oxide (AgCdO)	20 ms	DPDT (2 Form C)	40 °C	-10 °C	Lighted Indicator	General Purpose
R-K Electronics, Inc. RD2CB-120VAC-L	10 A	90 VAC	Non Latching	36 VAC	30 VDC 240 VAC	Socketable	Plug In	120 VAC	Silver Cadmium Oxide (AgCdO)	20 ms	DPDT (2 Form C)	40 °C	-10 °C	Lighted Indicator	General Purpose
R-K Electronics, Inc. RD2CB-24VDC-L	10 A	18 VDC	Non Latching	2.4 VDC	30 VDC 240 VAC	Socketable	Plug In	24 VDC	Silver Cadmium Oxide (AgCdO)	20 ms	DPDT (2 Form C)	40 °C	-10 °C	Lighted Indicator	General Purpose	576 Ohms	41.7 mA
