LZ9-J0 Series

Catalog

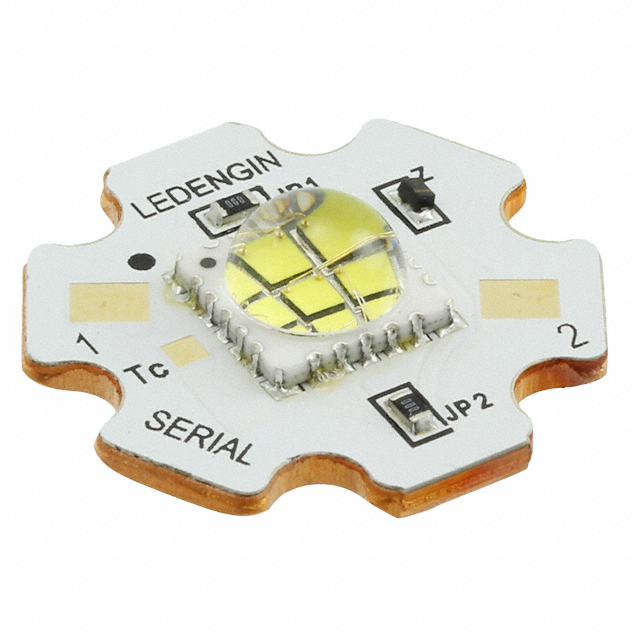

LED MOD LZ9 WM WH STARBRD 3000K

Part	Light Emitting Surface (LES) [diameter]	Lumens/Watt @ Current - Test	Size / Dimension [diameter]	Viewing Angle	Type	CCT (K)	Lens Type	Current - Max [Max]	Height [z]	Temperature - Test	CRI (Color Rendering Index)	Configuration	Color	Luminous Flux @ Current/Temperature	Voltage - Forward (Vf) (Typ)	Luminous Flux @ Current/Temperature [Max]	Luminous Flux @ Current/Temperature [Min]	CCT (K)	CCT (K) [Max]	CCT (K) [Min]
ams-OSRAM USA INC. LZ9-J0GW00-0430	6.2 mm	52 lm/W	19.9 mm	115 °	LED Module	3000 K	Domed	800 mA	5.5 mm	25 °C	95	Starboard	Warm White	1060 lm	29.1 V
ams-OSRAM USA INC. LZ9-J0WW00-0235	6.2 mm	68 lm/W	19.9 mm	110 °	LED Module	3500 K	Domed	800 mA	5.5 mm	25 °C	82	Starboard	Warm White		29.1 V	1696 lm	1085 lm
ams-OSRAM USA INC. LZ9-J0WW00-0027	6.2 mm	68 lm/W	19.9 mm	110 °	LED Module	2700 K	Domed	800 mA	5.5 mm	25 °C	82	Starboard	Warm White		29.1 V	1696 lm	1085 lm
ams-OSRAM USA INC. LZ9-J0SW00-0000	6.2 mm	68 lm/W	19.9 mm	110 °	LED Module	5300 K	Domed	800 mA	5.5 mm	25 °C	88	Starboard	Cool White		9.7 V	1696 lm	1085 lm
ams-OSRAM USA INC. LZ9-J0GW00-0028	6.2 mm	55 lm/W	19.9 mm	110 °	LED Module	2850 K	Domed	1.06 A	5.5 mm	25 °C	95	Starboard	Warm White	1113 lm	29.1 V	1357 lm	868 lm	3-Step MacAdam Ellipse
ams-OSRAM USA INC. LZ9-J0WW00-0035	6.2 mm	68 lm/W	19.9 mm	110 °	LED Module	3500 K	Domed	800 mA	5.5 mm	25 °C	82	Starboard	Warm White		29.1 V	1696 lm	1085 lm
ams-OSRAM USA INC. LZ9-J0WW00-0430	6.2 mm	68 lm/W	19.9 mm	110 °	LED Module	3000 K	Domed	800 mA	5.5 mm	25 °C	82	Starboard	Warm White		29.1 V	1696 lm	1085 lm
ams-OSRAM USA INC. LZ9-J0WW00-0435	6.2 mm	68 lm/W	19.9 mm	110 °	LED Module	3500 K	Domed	800 mA	5.5 mm	25 °C	82	Starboard	Warm White		29.1 V	1696 lm	1085 lm
ams-OSRAM USA INC. LZ9-J0WW00-0427	6.2 mm	68 lm/W	19.9 mm	110 °	LED Module	2700 K	Domed	800 mA	5.5 mm	25 °C	82	Starboard	Warm White		29.1 V	1696 lm	1085 lm
ams-OSRAM USA INC. LZ9-J0CW00-0000	6.2 mm	88 lm/W	19.9 mm	110 °	LED Module		Domed	800 mA	5.5 mm	25 °C	75	Starboard	Cool White	1800 lm	29.1 V	2120 lm	1357 lm		6500 K	5000 K
