S16B-XAD Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

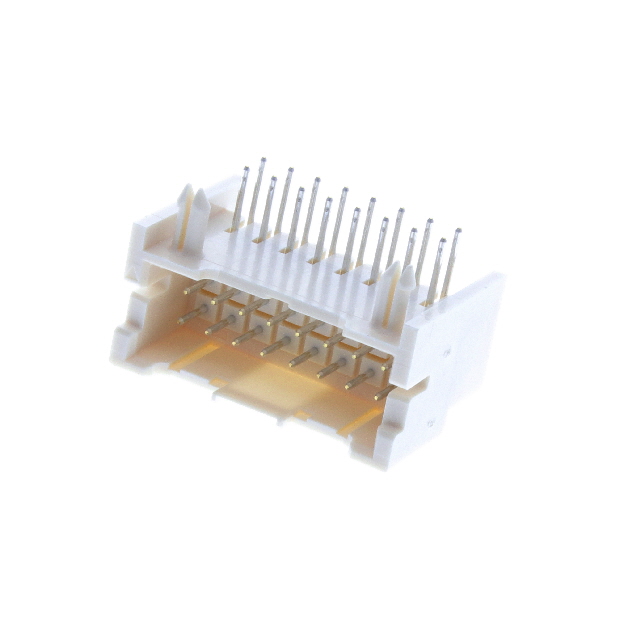

CONN HEADER R/A 16POS 2.5MM
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Contact Length - Post [x] | Contact Length - Post | Style | Insulation Color | Contact Material | Number of Positions | Insulation Material | Material Flammability Rating | Contact Type | Number of Rows [custom] | Fastening Type | Voltage Rating | Insulation Height | Insulation Height | Pitch - Mating | Pitch - Mating | Shrouding | Mounting Type | Row Spacing - Mating [x] | Row Spacing - Mating [x] | Contact Shape | Termination | Number of Positions Loaded | Contact Finish - Post | Current Rating (Amps) | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | 85 °C | -25 °C | 0.134 " | 3.4 mm | Board to Cable/Wire | Natural | Copper Alloy | 16 | Glass Filled Nylon 6/6 Polyamide (PA66) | UL94 V-0 | Male Pin | 2 | Locking Ramp | 250 V | 12.1 mm | 0.476 " | 2.5 mm | 0.098 in | Shrouded - 4 Wall | Right Angle Through Hole | 2.5 mm | 0.098 in | Circular | Solder | All | Tin | 3 A | Header |
