FFB1312 Series

Catalog

FAN AXIAL 127X38MM 12VDC WIRE

Part	Current Rating (Amps)	Lifetime @ Temp.	Material - Frame	Voltage Range [Min]	Voltage Range [Max]	Material - Blade	Termination	Weight	Weight	Air Flow	Air Flow	Power (Watts)	Approval Agency	Size / Dimension [z]	Size / Dimension [x]	Noise	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Min]	Width [y]	Fan Type	Static Pressure	Static Pressure	Bearing Type	Features	RPM
Delta Electronics FFB1312VHE	1.32 A	70000 Hrs	Plastic	7 V	13.2 VDC	Plastic	2 Wire Leads	499 g	1.1 lbs	160 CFM	4.48 m³/min	15.84 W	CE CSA UL VDE	5 in	5 "	53 dB	12 VDC	70 °C	-10 °C	38 mm	Tubeaxial	125.5 Pa	0.504 in H2O	Ball
Delta Electronics FFB1312VHE-F00	1.32 A	70000 Hrs	Plastic	7 V	13.2 VDC	Plastic	3 Wire Leads	499 g	1.1 lbs	160 CFM	4.48 m³/min	15.84 W	CE CSA UL VDE	5 in	5 "	53 dB	12 VDC	70 °C	-10 °C	38 mm	Tubeaxial	125.5 Pa	0.504 in H2O	Ball	Locked Rotor Protection Speed Sensor (Tach)

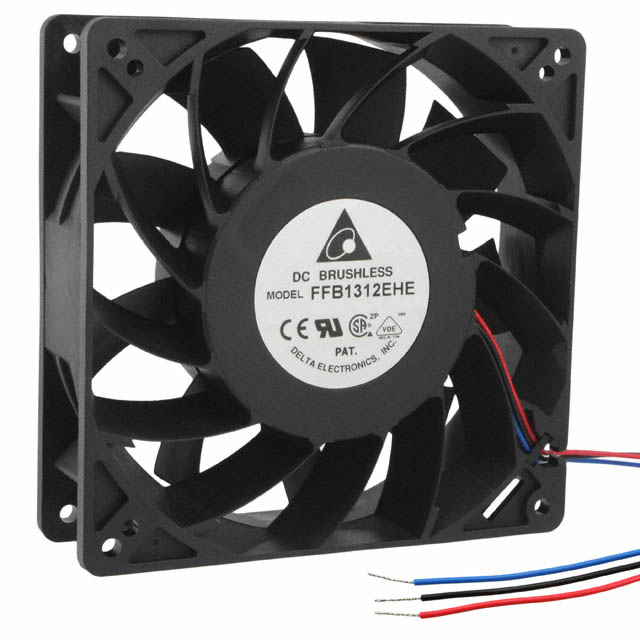

Delta Electronics FFB1312EHE-F00	2.74 A	70000 Hrs	Plastic	8.5 VDC	13.2 VDC	Plastic	3 Wire Leads	499 g	1.1 lbs	200 CFM	5.6 mł/min	32.88 W	CE CSA UL VDE	5 in	5 "	59.5 dB	12 VDC	70 °C	-10 °C	38 mm	Tubeaxial			Ball	Locked Rotor Protection Speed Sensor (Tach)	3850 RPM

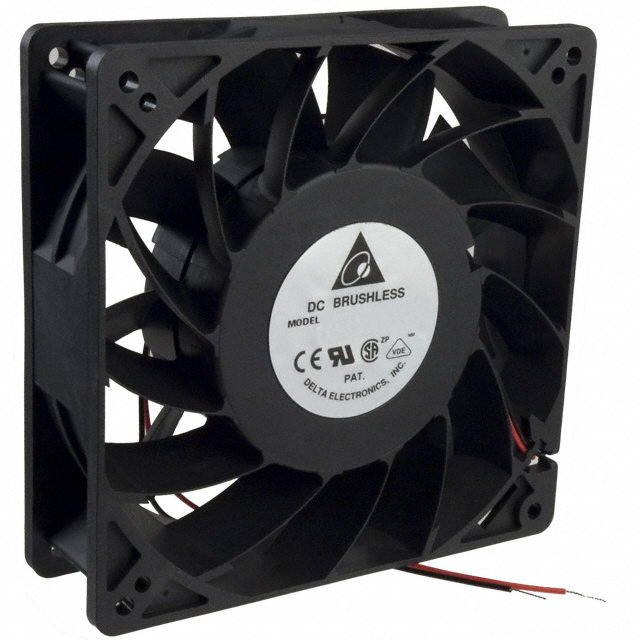

Delta Electronics FFB1312SHE	1.85 A	70000 Hrs	Plastic	7 V	13.2 VDC	Plastic	2 Wire Leads	499 g	1.1 lbs	180 CFM	5.04 mł/min	22.2 W	CE CSA UL VDE	5 in	5 "	56.5 dB	12 VDC	70 °C	-10 °C	38 mm	Tubeaxial	159.9 Pa	0.642 in H2O	Ball		3450 RPM

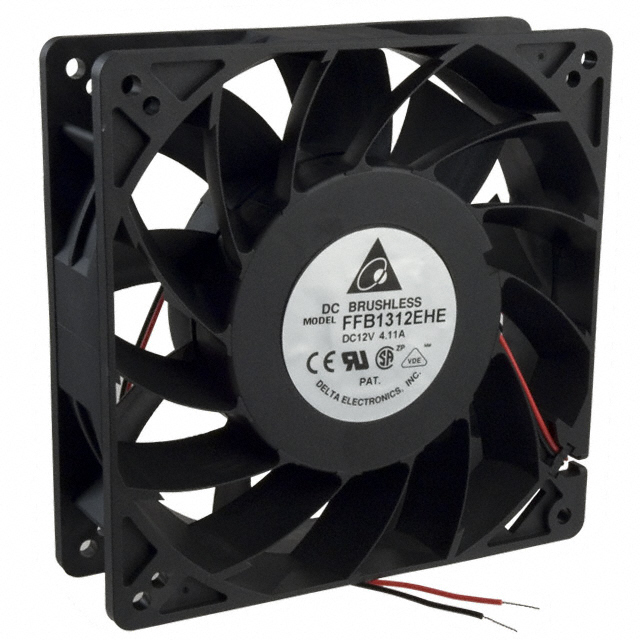

Delta Electronics FFB1312EHE	2.74 A	70000 Hrs	Plastic	8.5 VDC	13.2 VDC	Plastic	2 Wire Leads	499 g	1.1 lbs	200 CFM	5.6 mł/min	32.88 W	CE CSA UL VDE	5 in	5 "	59.5 dB	12 VDC	70 °C	-10 °C	38 mm	Tubeaxial			Ball		3850 RPM
