IR91-21 Series

Catalog

EMITTER IR 940NM 65MA AXIAL

Part	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Radiant Intensity (Ie) Min @ If	Mounting Type	Wavelength	Current - DC Forward (If) (Max) [Max]	Viewing Angle	Type	Orientation

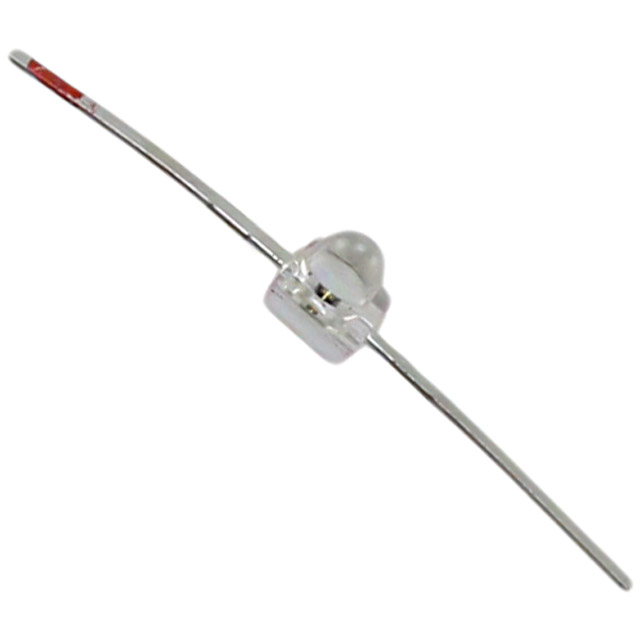

Everlight Electronics Co Ltd IR91-21C	Axial Flat Leads	85 °C	-25 °C	3 mW/sr	Through Hole	940 nm	65 mA	25 °	Infrared (IR)	Top View

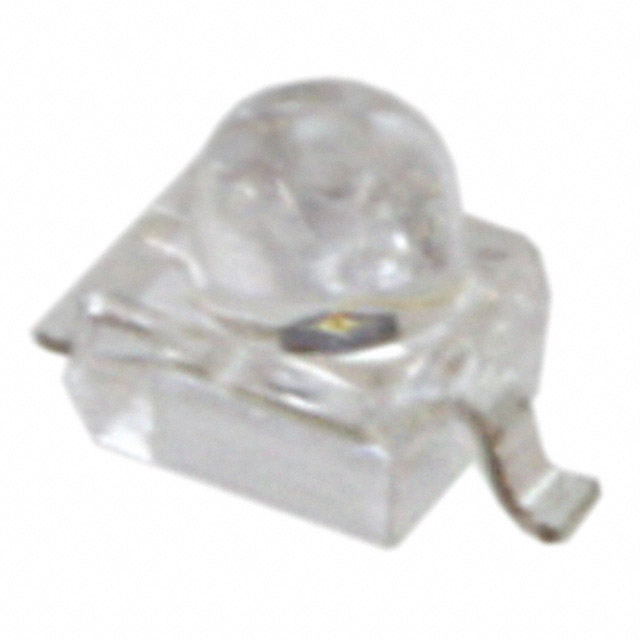

Everlight Electronics Co Ltd IR91-21C/TR7	2-SMD Gull Wing	85 °C	-25 °C	3 mW/sr	Surface Mount	940 nm	65 mA	25 °	Infrared (IR)	Top View

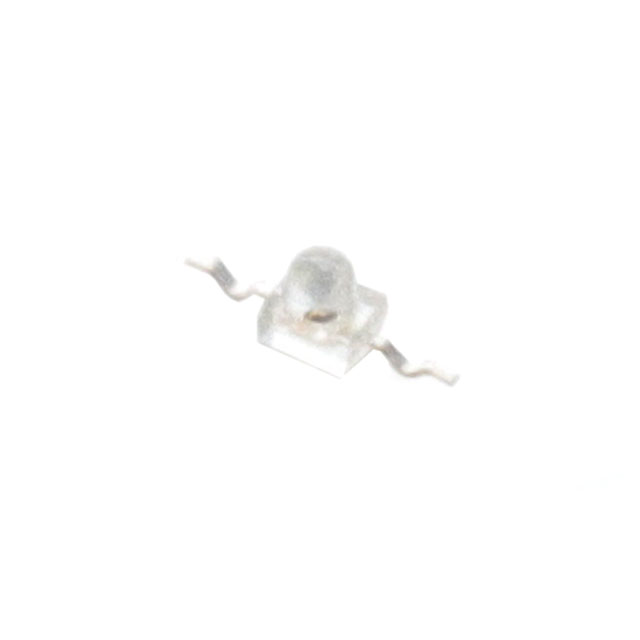

Everlight Electronics Co Ltd IR91-21C/TR9	Axial Flat Leads	85 °C	-25 °C	3 mW/sr	Through Hole	940 nm	65 mA	25 °	Infrared (IR)	Top View

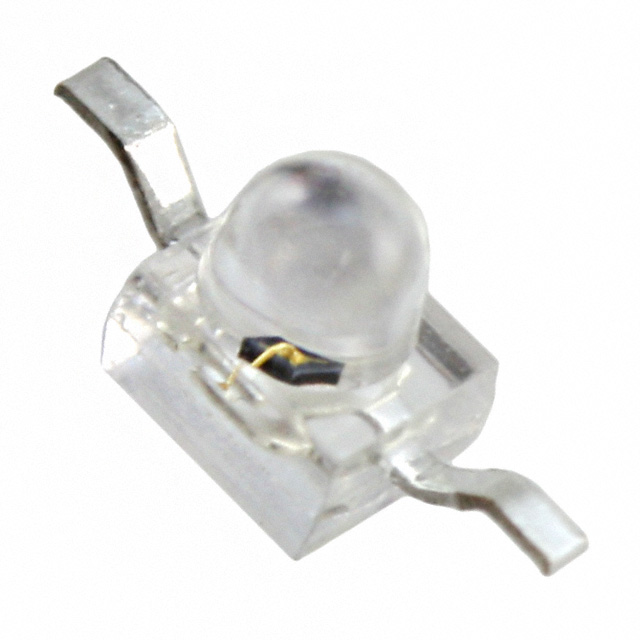

Everlight Electronics Co Ltd IR91-21C/TR10	2-SMD Z-Bend	85 °C	-25 °C	3 mW/sr	Surface Mount	940 nm	65 mA	25 °	Infrared (IR)	Top View
