MC08XS6421 Series

Manufacturer: Freescale Semiconductor - NXP

Catalog

IC HIGH SIDE SWITCH 12V 32SOIC

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Interface	Features	Current - Output (Max) [Min]	Current - Output (Max) [Max]	Rds On (Typ)	Number of Outputs	Output Type	Ratio - Input:Output [custom]	Package / Case	Supplier Device Package	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Fault Protection	Output Configuration	Switch Type	Mounting Type	Input Type	Package / Case	Package / Case
Freescale Semiconductor - NXP MC08XS6421DEK	-40 °C	125 °C	18 V	7 V	SPI	Internal PWM	5.5 A	11 A	8 mOhm 21 mOhm	6	N-Channel	2:3	32-SSOP	32-HSOP	5.5 V	4.5 V	Current Limiting (Fixed) Open Load Detect Over Temperature	High Side	General Purpose	Surface Mount

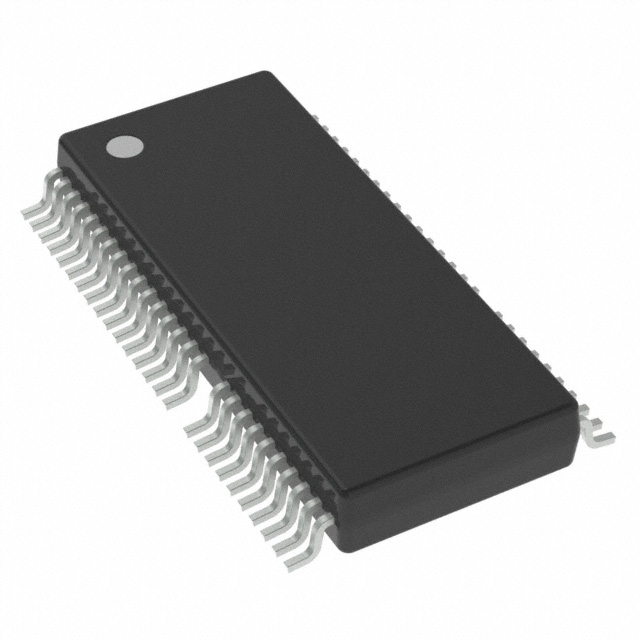

Freescale Semiconductor - NXP MC08XS6421CEKR2	-40 °C	125 °C	18 V	7 V	SPI		5.5 A	11 A	8 mOhm 21 mOhm	4	N-Channel	1:1	54-SSOP	54-HSOP	5.5 V	4.5 V	Current Limiting (Fixed) Open Load Detect Over Temperature	High Side	General Purpose	Surface Mount	CMOS	0.295 in	7.5 mm
Freescale Semiconductor - NXP MC08XS6421BEKR2	-40 °C	125 °C	18 V	7 V	SPI		5.5 A	11 A	8 mOhm 21 mOhm	4	N-Channel	1:1	32-SSOP	32-HSOP	5.5 V	4.5 V	Current Limiting (Fixed) Open Load Detect Over Temperature	High Side	General Purpose	Surface Mount
Freescale Semiconductor - NXP MC08XS6421EK	-40 °C	125 °C	18 V	7 V	SPI	Slew Rate Controlled	5.5 A	11 A	8 mOhm 21 mOhm	4	N-Channel	1:1	32-SSOP	32-HSOP	5.5 V	4.5 V	Current Limiting (Fixed) Open Load Detect Over Temperature	High Side	General Purpose	Surface Mount
Freescale Semiconductor - NXP MC08XS6421CEK	-40 °C	125 °C	18 V	7 V	SPI		5.5 A	11 A	8 mOhm 21 mOhm	4	N-Channel	1:1	54-SSOP	54-HSOP	5.5 V	4.5 V	Current Limiting (Fixed) Open Load Detect Over Temperature	High Side	General Purpose	Surface Mount	CMOS	0.295 in	7.5 mm
