FMA1-09238 Series
Manufacturer: Qualtek
Beta
⌘K

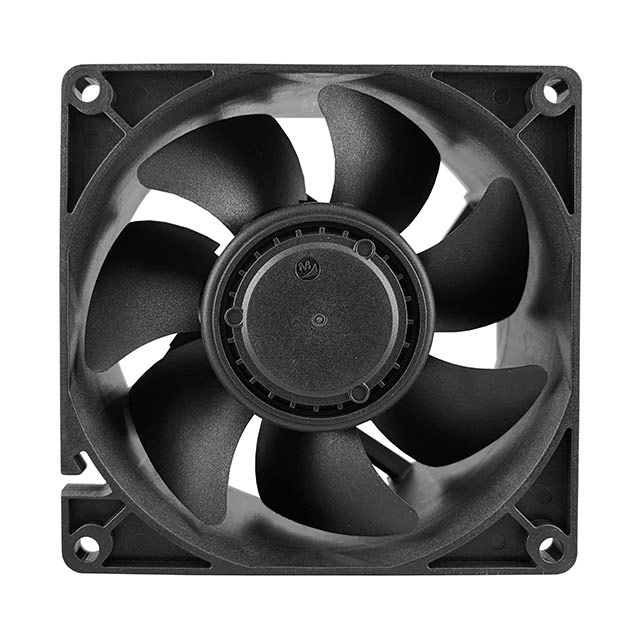

EC FAN, 92X92X38MM, 2-BALL BEARI
| Part | Lifetime @ Temp. | Material - Frame | Current Rating (Amps) | Material - Blade | Noise | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Voltage - Rated [Max] | Voltage - Rated [Min] | Air Flow | Air Flow | Fan Type | Width [y] | RPM | Static Pressure | Static Pressure | Power (Watts) | Approval Agency | Size / Dimension [y] | Size / Dimension [x] | Bearing Type | Features | Ingress Protection | Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Qualtek | 70000 Hrs | Plastic | 110 mA | Plastic | 42 dB | -20 ░C | 70 °C | 2 Wire Leads | 240 VAC | 100 VAC | 1.9 m³/min | 67.7 CFM | Tubeaxial | 38 mm | 3500 RPM | 71.7 Pa | 0.288 in H2O | 5.5 W | CE cURus | 92 mm | 92 mm | Ball | Electronic Commutation (EC) | IP54 - Dust Protected Water Resistant | |
Qualtek | 70000 Hrs | Plastic | 110 mA | Plastic | 42 dB | -20 ░C | 70 °C | 240 VAC | 100 VAC | 1.9 m³/min | 67.7 CFM | Tubeaxial | 38 mm | 3500 RPM | 71.7 Pa | 0.288 in H2O | 5.5 W | CE cURus | 92 mm | 92 mm | Ball | Electronic Commutation (EC) | IP54 - Dust Protected Water Resistant | 2 |
