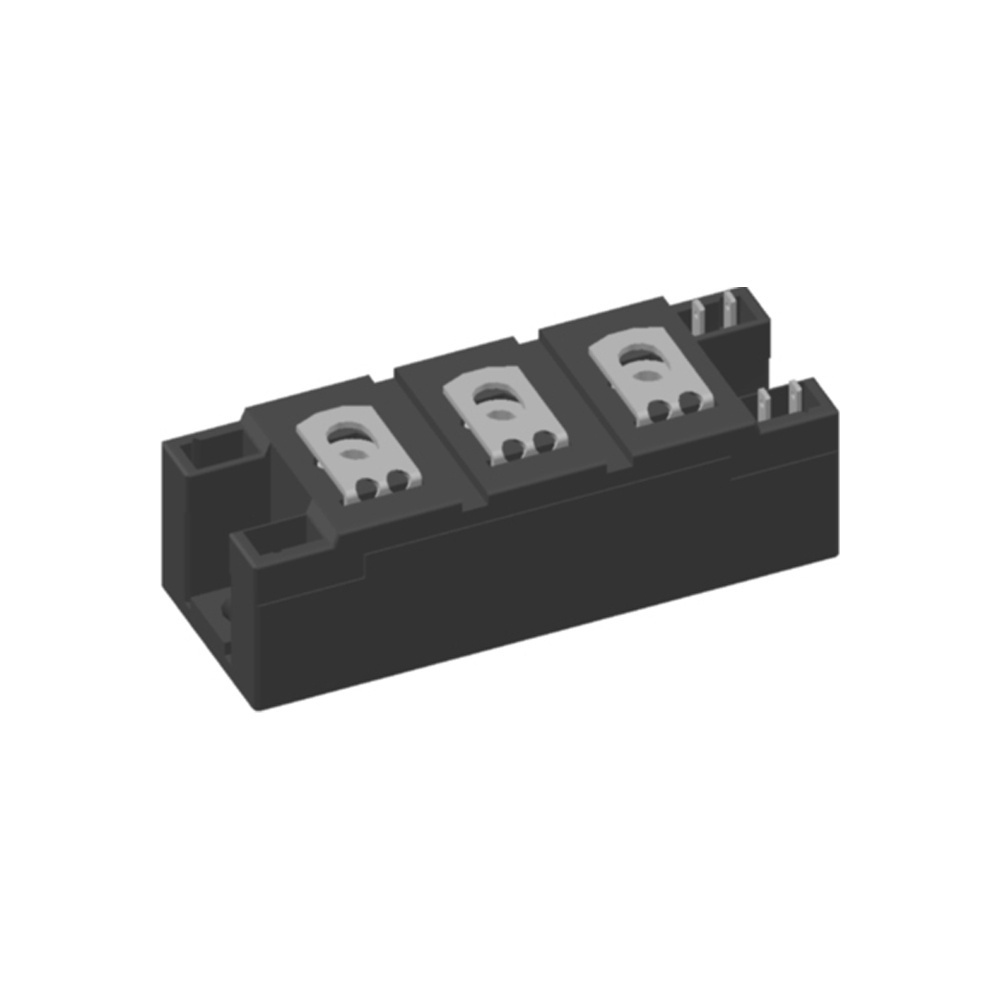

Bipolar Module - Thyristor - Y4
Description
AI
The Dual Thyristor Modules Portfolio offers various packages and breakdown voltages up to 2200V.
Beta
⌘K
Bipolar Module - Thyristor - Y4
Bipolar Module - Thyristor - Y4
| Part | Current - Non Rep. Surge 50, 60Hz (Itsm) | Voltage - Off State | Number of SCRs, Diodes | Current - Hold (Ih) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Mounting Type | Structure | Voltage - Gate Trigger (Vgt) (Max) [Max] | Current - Gate Trigger (Igt) (Max) [Max] | Current - On State (It (AV)) (Max) [Max] | Current - On State (It (RMS)) (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | 6000 A 6480 A | 1.6 kV | 2 SCRs | 200 mA | -40 °C | 140 °C | Module | Chassis Mount | Series Connection - All SCRs | 2.5 V | 150 mA | 200 A | 315 A |
